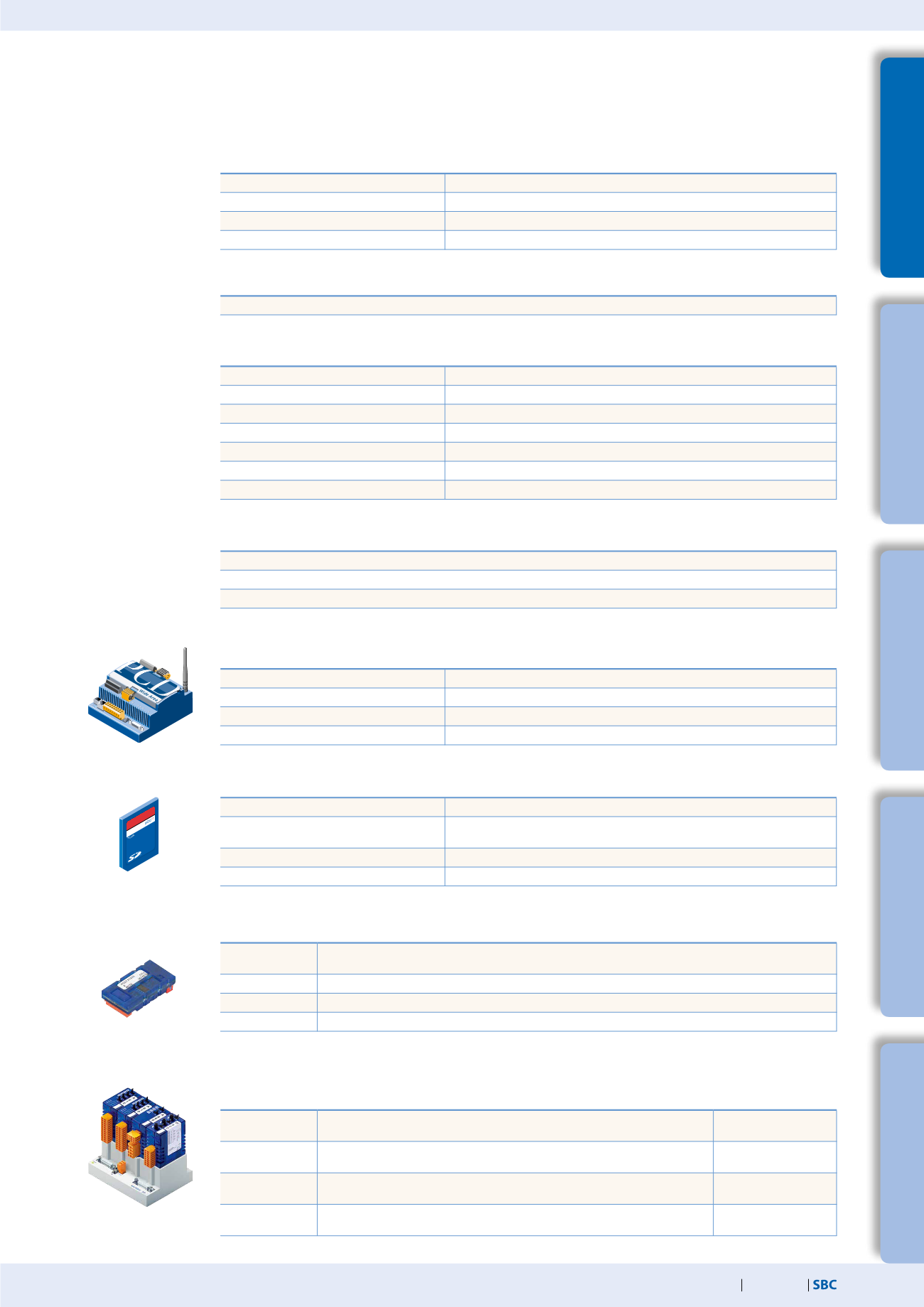

PCD7.R-SD512
Automation stations – Saia PCD3
5
4
3
2
1
Cabinet
components
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Consumption data
acquisition
Types
PCD3.M2330A4T1
with PSTN modem
PCD3.M2330A4T3
with ISDN modem
PCD3.M2330A4T5
with GSM/GPRS modem (without antenna)
PCD3.M2230A4T5
with GSM/GPRS modem, without Ethernet (without antenna)
CPU technology
RAM as program memory
512 kByte
Back-up memory (flash)
512 kByte
Memory for file system (flash)
1 MByte (onboard)
PCD media
8,192 flags, 16,384 × 32-bit register
Additional data storage
Slot for SD flashcards
SBC SD card with up to 1 GByte file system
Data files with up to 900 files
with Saia file system
Download and upload via ftp
PCD7.R-SD512
SBC SD flashcard, 512 MByte with file system
PCD7.R-SD1024
SBC SD flashcard, 1024 MByte with file system
Internet and intranet protocols
HTTP server
Visualization with web browser and web panel
FTP server
Easy exchange of data
TCP/IP-PPP Point-to-Point Protocol
Efficient communication
SMTP client
Sending e-mails with files (e.g. log files) as attachments
DHCP and DNS client
Easy integration into IP networks
SNTP client
Synchronization of the internal clock
SNMP agent
Network management
Telecom communication interface
(alternatively integrated interfaces)
GSM / GPRS / PSTN / ISDN / SMS – sending and receiving
Communication modules for slot A
PCD7.F110S
RS-422 with RTS/CTS or RS-485 electrically connected, with line termination resistors capable of
activation. Suitable for Modbus, S-Bus, EnOcean, etc.
PCD7.F121S
RS-232 with RTS/CTS, DTR/DSR, DCD. Suitable for modem, EIB, DALI connection.
PCD7.F150S
RS-485 (electrically isolated), with line termination resistors capable of activation,
PCD7.F180S
Belimo® MP-Bus, for connecting up to 8 drives on one line
Field level protocols
Serial-S-Bus, Ether-S-Bus and Profi-S-Bus
MODBUS RTU or TCP EIB M-Bus IEC 870-5-101/103/104
For other protocols please refer to section B2
I/O expansions
PCD3.C110Z09 2 module slots
(connection with PCD3.K010 connector or with PCD3.K106/K116 cable)
0 mA
PCD3.C200Z09
4 module slots, with 24 VDC supply
(connection with PCD3.K010 connector or with PCD3.K106/K116 cable)
1500 mA / 200 mA
(5 V / +V)
PCD3.C110
2 module slots
(connection with PCD3.K106/K116 cable only)
0 mA
PCD3.C200
4 module slots, with 24 VDC supply
(connection with PCD3.K106/K116 cable only)
1500 mA / 200 mA
(5 V / +V)
I/O-modules see pages 27 and 28
Performance overview, ordering information and accessories
