Saia PCD3 Wide Area Controllers are freely programmable, industrial devices for control and automation
devices with web, IT and telecommunications functions. Its potential uses therefore extend much further
than those of a classic RTU station, which is normally only suitable for alarm monitoring with remote
alarms and data logging. The PCD3 Wide Area Controller is also suitable for sophisticated control tasks.
System properties
Freely programmable with PG5
Compact dimensions: 130 × 140 × 74 mm
(W × H × D) (without antenna)
Management of historical data
with up to 1 GByte flash memory
Integral telecommunications interface
(ISDN, PSTN, GSM/GPRS)
Always accessible,
thanks to redundant communication
14 inputs/outputs already in base unit
1.2.3

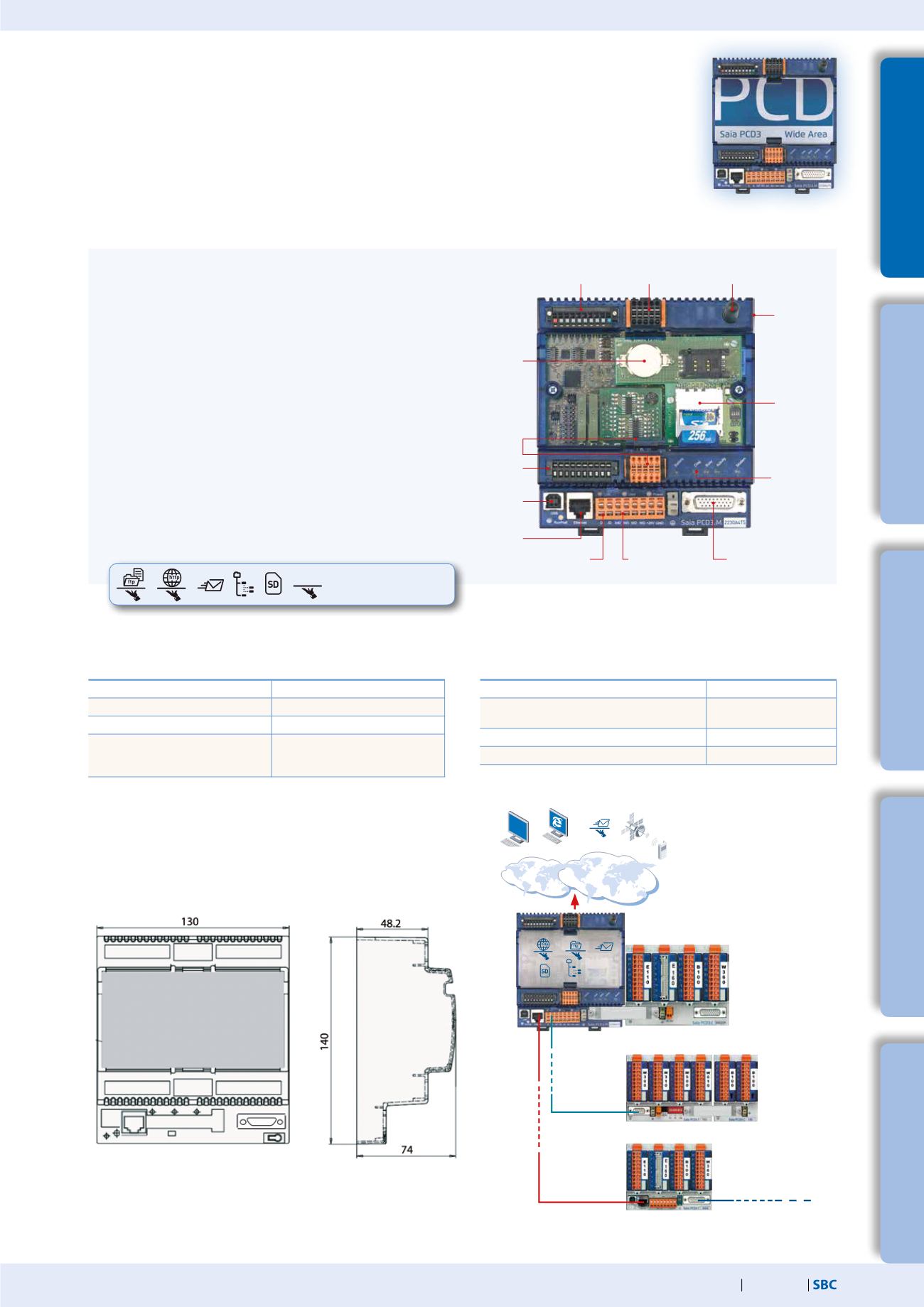

Saia PCD3.M2330A4TxWide Area Controller
Automation Server
integrated in
the base unit
SIM card
holder
Expandable
memory
Antenna
Configurable
analog inputs
Ethernet
USB
Slot A for optional
interfaces
Configurable
digital inputs
LED
Status displays
I/O
expansion
onboard RS-485
interface
2 relay outputs + 2
interrupts
Battery
2 interrupt or
1 fast counter
Dimensions
On-Board inputs/outputs
I/O data point
Properties
8 digital inputs + 2 interrupts
15…30 VDC
2 relay outputs
DC 2 A/50 V, AC 6 A/250 V
4 configurable analog inputs
–10…+10 VDC, 0…±20 mA,
Pt1000, Ni1000, Ni1000 L&S,
0…2.5 kΩ
On-Board interfaces
Interface
Transmission rate
RS-485 (serial) on terminal block for free protocols
or Profi-S-Net / Profibus-DP Slave
≤ 115.2 kbit/s
≤ 187.5 kbit/s
Ethernet TCP/IP
10/100 Mbit/s
USB 1.1 slave (PGU)
Internet Telecommunications
GSM/GPRS
FTP client
SMS
Up to 256 local data points per RIO node
Saia PCD3.WAC Controller
PCD3.T760
RIOs via
Profibus/Profi-S-Net
PCD3.T66x
Ethernet RIOs via
Ethernet/Ether-S-Net
Up to 256 local data points per RIO node
Up to 64 local data points
I/O bus extension cablePCD3.
K106
|
PCD3.K116
I/O bus
connector
PCD3.K010
Webbrowser
Mail server
