Automation stations – Saia PCD2
5
4
3
2
1
Cabinet
components
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Consumption data
acquisition

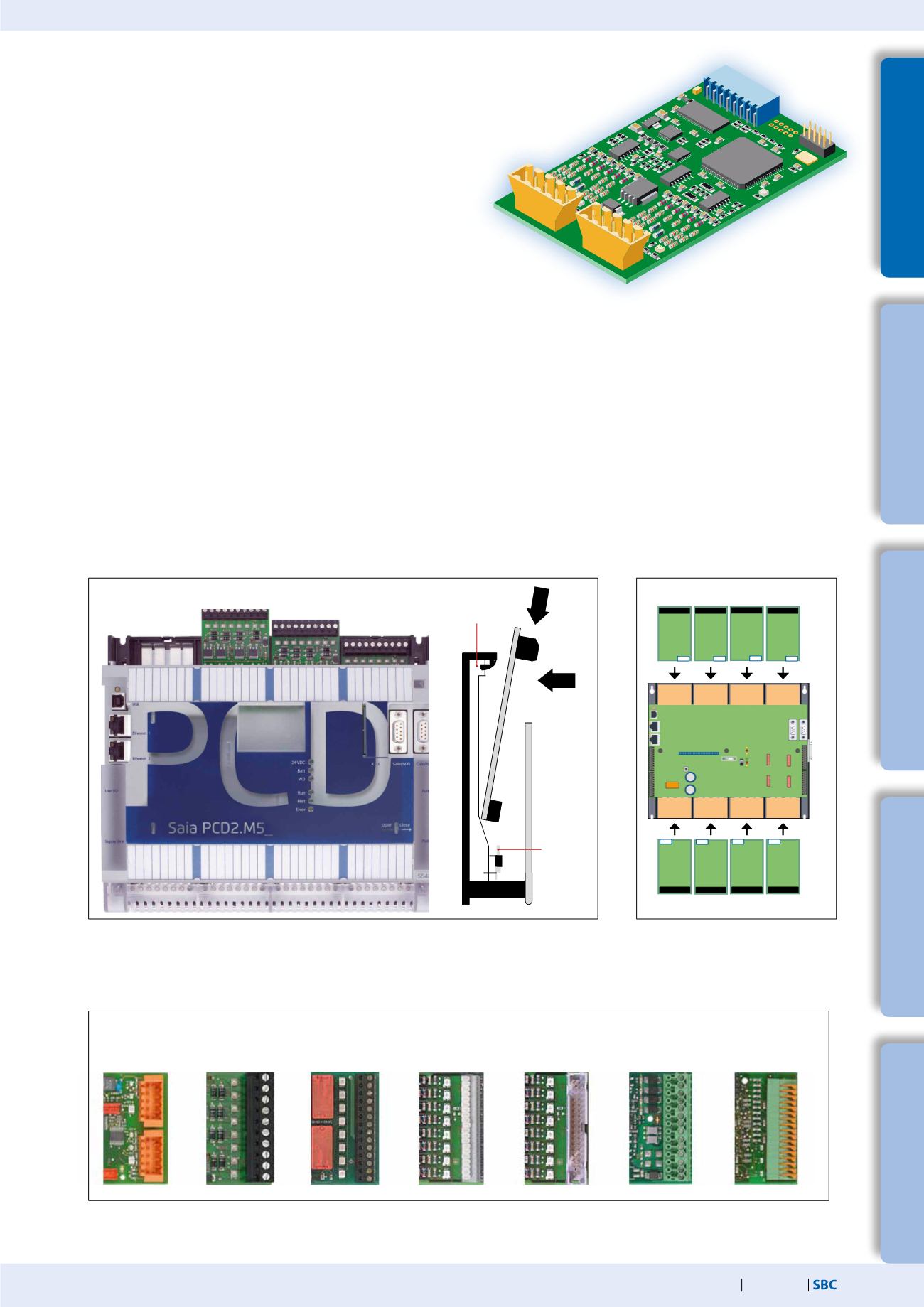

Saia PCD2 Plug-in I/O modules: Overview
The functions of Saia PCD2 can be expanded as required using
a wide range of plug-in I/O modules and can be adapted to the
specified needs. This not only ensures that a project can be
implemented quickly but also provides the option of expanding
the system at any time during operation.
General type key
PCD2.Axxx Digital output modules
PCD2.Bxxx Digital combined input/output modules
PCD2.Exxx Digital input modules
PCD2.Fxxx Communication modules
PCD2.Hxxx Fast counter modules
PCD2.Rxxx Memory modules
PCD2.Wxxx Analog input/output modules
System properties
Numerous variants available
Slot directly in the Saia PCD2.M5xxxx, PCD1.M2xxx or in
the module holder
Full integration into the Saia PCD2 housing
Compact design
Up to 16 I/Os per module
Modules with an input delay of 0.2 ms
Insertion in housing
Slots for I/O modules
Differences between the terminals of the I/O modules
The screw terminal blocks and connectors can also be ordered individually as accessories.
Type K
2×5-pin
connector
Type L
10-pin
connection terminal
plug-in
Type M
14-pin
connection terminal
plug-in
Type N
20-pin
connection
terminal
Type O
34-pin
ribbon
connector
Type P
14-pin
connection terminal
Type R
17-pin
connection terminal
More than 50 modules available
with differing functionalities
Retaining catch
Bus
connector
