PCD
3

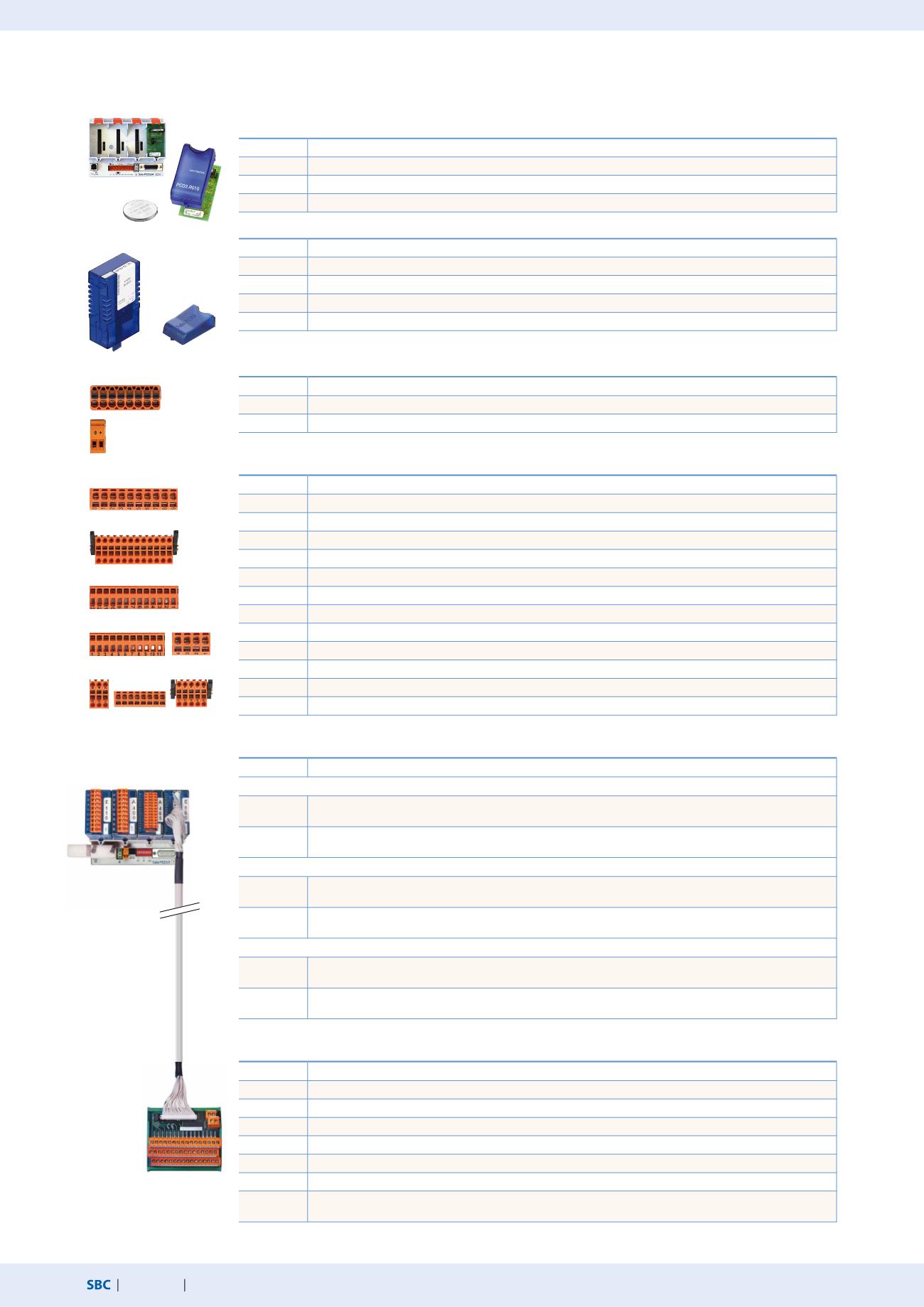

Automation stations – Saia PCD3
Saia PCD3 battery and battery holder module
Type
Description
PCD3.R010 Battery kit for PCD3.M3xxx Basic CPU (battery module for slot#3 incl. lithium battery CR2032)
4 639 4898 0 Battery holder module (for PCD3.M5xxx)
4 507 4817 0 Lithium battery for PCD Basis CPU
Saia PCD3 housing covers
Type
Description
4 104 7493 0 Cover for PCD3.M5xxx and M6xxx
PCD3.E009 Empty module housing for unused PCD3 I/O slots
4 104 7515 0 Slot cover for unused PCD3 I/O slots
4 104 7502 0 Slot cover for unused PCD3 I/O slots without SBC logo
Saia PCD3 plug-in terminal blocks for basic modules and module holders
Type
Description
4 405 4995 0 8-pin spring terminal block for power supply to PCD3.Mxxx0
4 405 4952 0 2-pin screw terminal block for power supply to PCD3.C200
Saia PCD3 plug-in terminal blocks and labeling for I/O modules
Type
Description
440549540 Plug-in I/O spring terminal block 10-pin for wires up to 2.5 mm
2
type A
440549560 Plug-in I/O spring terminal block 24-pin for wires up to 1,0 mm
2
type C
440549980 Plug-in I/O spring terminal block 14-pin for wires up to 1,5 mm
2
type E
440549360 Plug-in I/O spring terminal block 12-pin for PCD3.A810 for wires up to 1,5 mm
2
type F
440550270 Plug-in I/O spring terminal block 4-pin for PCD3.A860 for wires up to 2,5 mm
2
type G
440550280 Plug-in I/O spring terminal block 6-pin for PCD3.A860 for wires up to 1,0 mm
2
type H
440551130 Plug-in I/O spring terminal block 9-pin for PCD3.F240 for wires up to 2,5 mm
2
type A9
440549340 Plug-in I/O spring terminal block 8-pin for PCD3.W800 for wires up to 1,5 mm
2
type J
440550480 Plug-in I/O spring terminal block 10-pin for wires up to 1,0 mm
2
type K
431087230 Set of 10: Transparent snap-on label holder including neutral inscription labels (2× DIN A4)
432948191 Set of 10: Snap-on inscription carrier for modules
431086860 Set of 10: Preprinted adhesive strips for snap-on label holder
System cables &“ribbon-screw terminal” adapters
(see section 1.7 for details)
Type
Description
System cables for digital modules with 16 I/Os
PCD2.K221
Sheathed, round cable with 32 strands of 0.25 mm², 1.5 m long
PCD side: 34-pin ribbon cable connector type D, process side: strand ends free, color coded
PCD2.K223 Sheathed, round cable with 32 strands of 0.25 mm², 3.0 m long
PCD side: 34-pin ribbon cable connector type D, process side: strand ends free, color coded
System cables for adapters PCD2.K520/..K521/..K525
PCD2.K231
Sheathed, half-round cable with 34 strands, each 0.09 mm², 1.0 m long,
34-pin ribbon connector at both ends type D
PCD2.K232
Sheathed, half-round cable with 34 strands, each 0.09 mm², 2.0 m long,
34-pin ribbon connector at both ends type D
System cables for 2 adapters PCD2.K510/..K511 or 1 adapter and relay interface PCD2.K551
PCD2.K241
Sheathed, half-round cable with 34 strands, each 0.09 mm², 1.0 m long,
PCD side: 34-pin ribbon connector type D, process side: two 16-pin ribbon connector
PCD2.K242 Sheathed, half-round cable with 34 strands, each 0.09 mm², 2.0 m long,
PCD side: 34-pin ribbon connector type D, process side: two 16-pin ribbon connector
“Ribbon/screw terminal” adapters
Type
Description
PCD2.K510
for 8 inputs/outputs, with 20 screw terminals without LED
PCD2.K511
for 8 inputs/outputs, with 20 screw terminals and LED (for source operation only)
PCD2.K520
for 16 inputs/outputs, with 20 screw terminals without LED
PCD2.K521
for 16 inputs/outputs, with 20 screw terminals and LED (for source operation only)
PCD2.K525
for 16 inputs/outputs, with 3 × 16 screw terminals and LED (for source operation only)
PCD2.K551
Relay interface for 8 PCD transistor outputs with 24 screw terminals and LED
PCD2.K552 Relay interface for 8 PCD transistor outputs with 24 screw terminals,
LED and manual control mode (on-off-auto switch) and 1 output as feedback for manual control
Consumables and accessories for Saia PCD3.Mxxxx controllers
8-pin
2-pin
Type J
Type F
Type A
Type C
Type E
Type G
Type H
Type K
