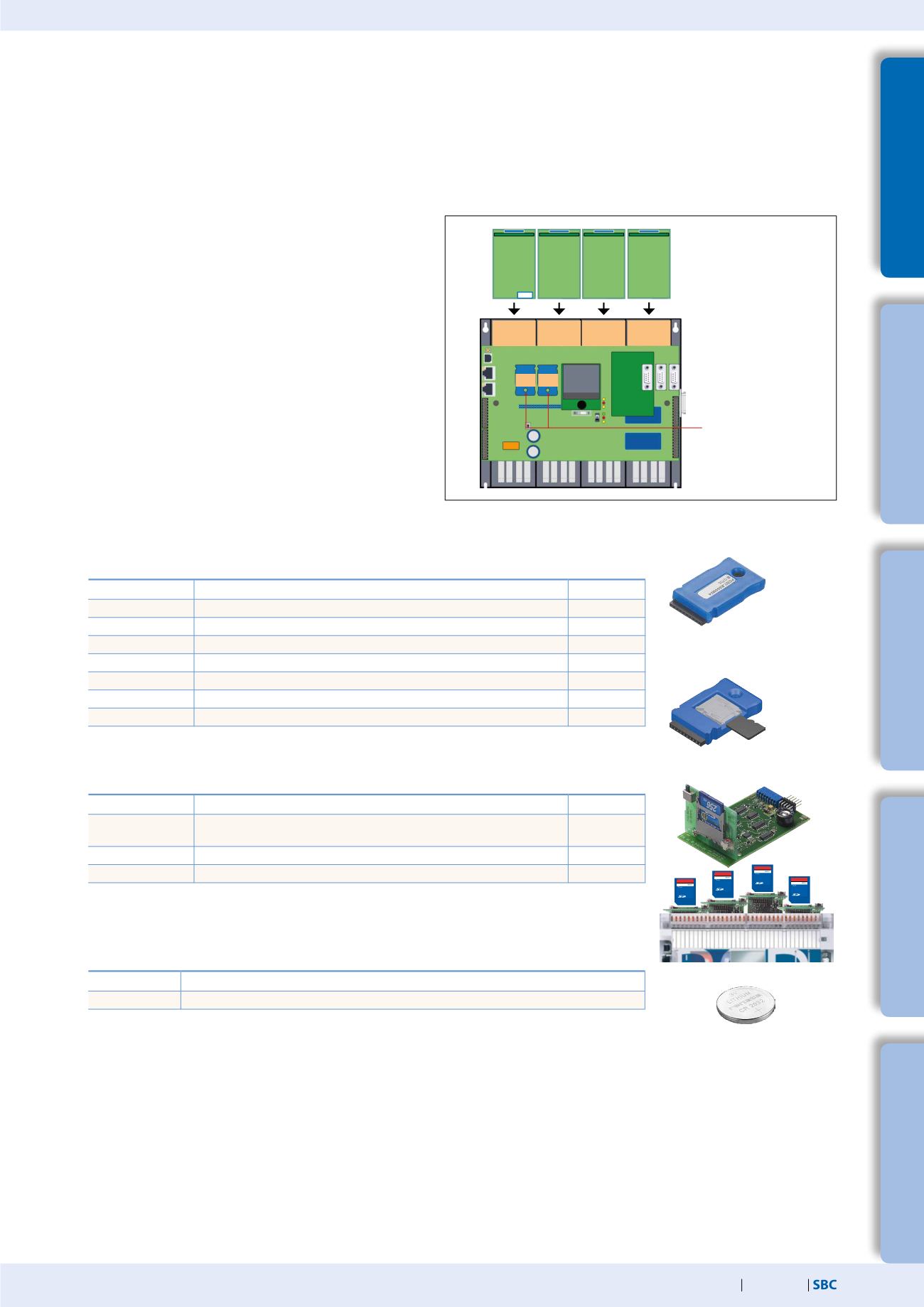

The functions of the Saia PCD2 can be expanded by means of flash memory. Memory cards with file systems and data backup are avail-
able for this. The various protocols whose firmware is installed on the flash cards can also be used by simply inserting the relevant card.
The controller thus becomes BACnet® or L
on
IP-enabled, for example.
More information about memory management and memory structure are listed Chapter 1.1 "Saia PCD® system description".
System properties
User memory On-Board:
1024 kByte RAM for program + DB/text
2 MByte flash memory
(S-RIO, configuration and backup)
Expansion options:
Two slots (M1 and M2) for memory cards integrated
into the CPU
Additional SD memory cards can be inserted in the
I/O slots 0 to 3 using adapters
Memory modules of the Saia PCD2.M5xxx controllers
Flash memory with file system, program and data backup, BACnet®
Type
Description
Slot
PCD7.R550M04 4 MByte flash card with file system
M1 & M2
PCD7.R560
Flash card with BACnet®
M1 & M2
PCD7.R562
Flash card with BACnet® and 128 MByte file system
M1 & M2
PCD7.R580
Flash card with L
on
IP
M1 & M2
PCD7.R582
Flash card with L
on
IP and 128 MByte file system
M1 & M2
PCD7.R610
*
Support module for micro SD card
M1 & M2
PCD7.R-MSD1024
*
SD flash micro memory card 1 GB, PCD formatted
PCD7.R610
*
)
In preparation, see section C2 Product status
PCD2 SD flash memory cards for I/O slots
Type
Description
Slot
PCD2.R6000
Basic module with slot for SD flash memory cards
(Up to 4 modules in I/O slots 0 to 3 on a CPU)
I/O 0-3
PCD7.R-SD512
SD flash memory card, 512 MByte with file system
---
PCD7.R-SD1024 SD flash memory card, 1024 MByte with file system
---
Battery for data backup
Type
Description
4 507 4817 0 Lithium battery for PCD processor unit (RENATA button battery type CR 2032)
System properties of PCD7.R5xx modules
Only 1 BACnet® or L
on
IP module can be run for each PCD2.M5xxx.
Slots for memory modules
Slots
M1 and M2
PCD7.R55xM04
PCD7.R56x
PCD7.R58x
max. 4 PCD2.R6000
I/O slot
