Automation stations – Saia PCD3
5
4
3
2
1
Cabinet
components
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Consumption data
acquisition

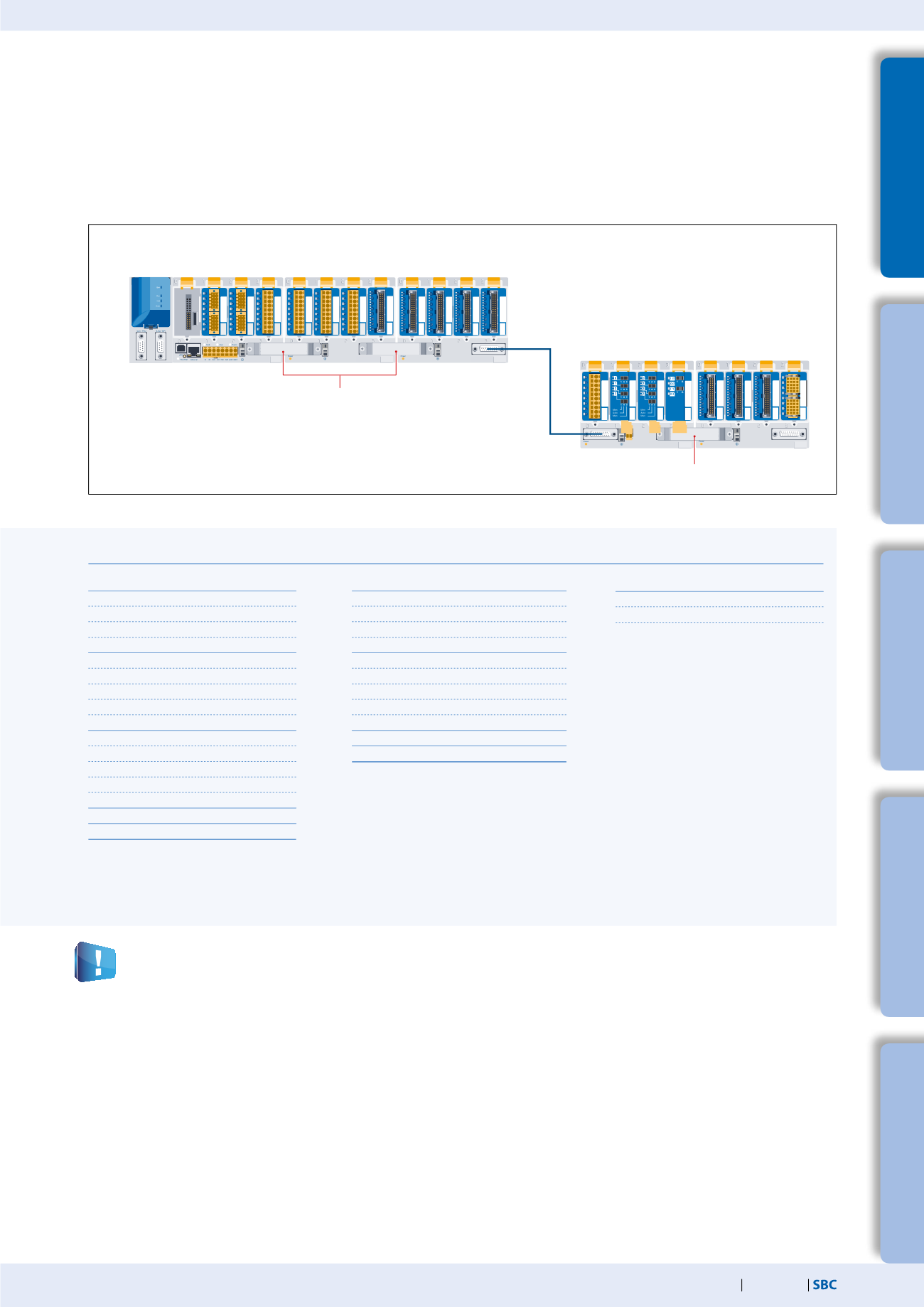

Information for project planning with PCD3 module holders
The internal load current taken by the I/O modules from the +5V and +V (24V) supply must not exceed the maximum supply current
specified for the CPUs, RIOs or PCD3.C200 module holders.
Example calculation for the current consumption of the internal +5V and +V (24V) bus of the I/O modules
The calculation example given shows that internal capacity is maintained in the CPU basic
module PCD3.M5540 and the holder module PCD3.C200. The CPU basic module has suf-
ficient reserves to accommodate an additional communication module in the empty 0 slot.
The holder module PCD3.C200 also has sufficient reserves for an additional PCD3.C100 or
PCD3.C110 holder module to be connected. The power consumption of the internal +5V
and +V (24 V) bus for the I/O modules is calculated in the PG5 Device Configurator.
In keeping with lean automation, it is recommended to leave the
first slot in the CPU basic module free for any subsequent expan-
sions. Both simple I/O modules and communication modules can
be used in this slot.
The total length of the I/O bus is limited by technical factors; the
shorter, the better.
The PCD3.C200 is used to extend the I/O bus or for the internal
power supply (+5V and +V (24V)) to a module segment. Please
note the following rules:
Do not use more than six PCD3.C200s in one configuration, or the
time delay will exceed the I/O access time.
The following aspects should be considered when planning PCD3 applications:
PCD3.M5540
CPU incl.
4 I/O slots
PCD3.C100
I/O-module holder
4 slots
Extension plug
PCD3.K010
PCD3.C100
I/O-module holder
4 slots
PCD3.C100
I/O-module holder
4 slots
PCD3.C200
I/O-module holder
4 slots
Extension cable
PCD3.K106
Extension plug
PCD3.K010
Capacity
PCD3.M5540 PCD3.C200
Internal 5V
600 mA
1500 mA
Internal +V (24V) 100 mA
200 mA
Consumption: C200 + C100
Module
Internal 5V Internal +V
(24V)
A200
15 mA
A810
40 mA
A810
40 mA
A860
18 mA
Total for C200 113 mA
A460
10 mA
A460
10 mA
A460
10 mA
W380
25 mA 25 mA
Total for C100 55 mA 25 mA
Total for C200 168 mA 25 mA
Consumption: M5540 + C100 + C100
Module
Internal 5V Internal +V (24V)
Not used
F210
110 mA
F281
90 mA 15 mA
W340
8 mA 20 mA
Total for M5540 208 mA 35 mA
W340
8 mA 20 mA
W340
8 mA 20 mA
W610
110 mA
0 mA
E160
10 mA
Total for C100 136 mA 40 mA
E160
10 mA
E160
10 mA
E160
10 mA
E160
10 mA
Total for C100 40 mA
0
Total for M5540 384 mA 75 mA
Use a maximum of five PCD3.K106/116 cables.
After each cable (at the start of a row), insert a PCD3.C200. Excep-
tion: In a small configuration with no more than 3 PCD3.C1xxs,
these can be supplied from the PCD3.Mxxx. A PCD3.C200 is not
needed
Where an application is mounted in a single row (max. 15 module
holders), after every five PCD3.C100s a PCD3.C200 must be
inserted to amplify the bus signal (unless the configuration ends
with the fifth PCD3.C100).
If the application is mounted in multiple rows, the restricted
length of cable means that only three module holders (1×
PCD3.C200 and 2× PCD3.C100) may be mounted in one row
