Automation stations – Saia PCD3

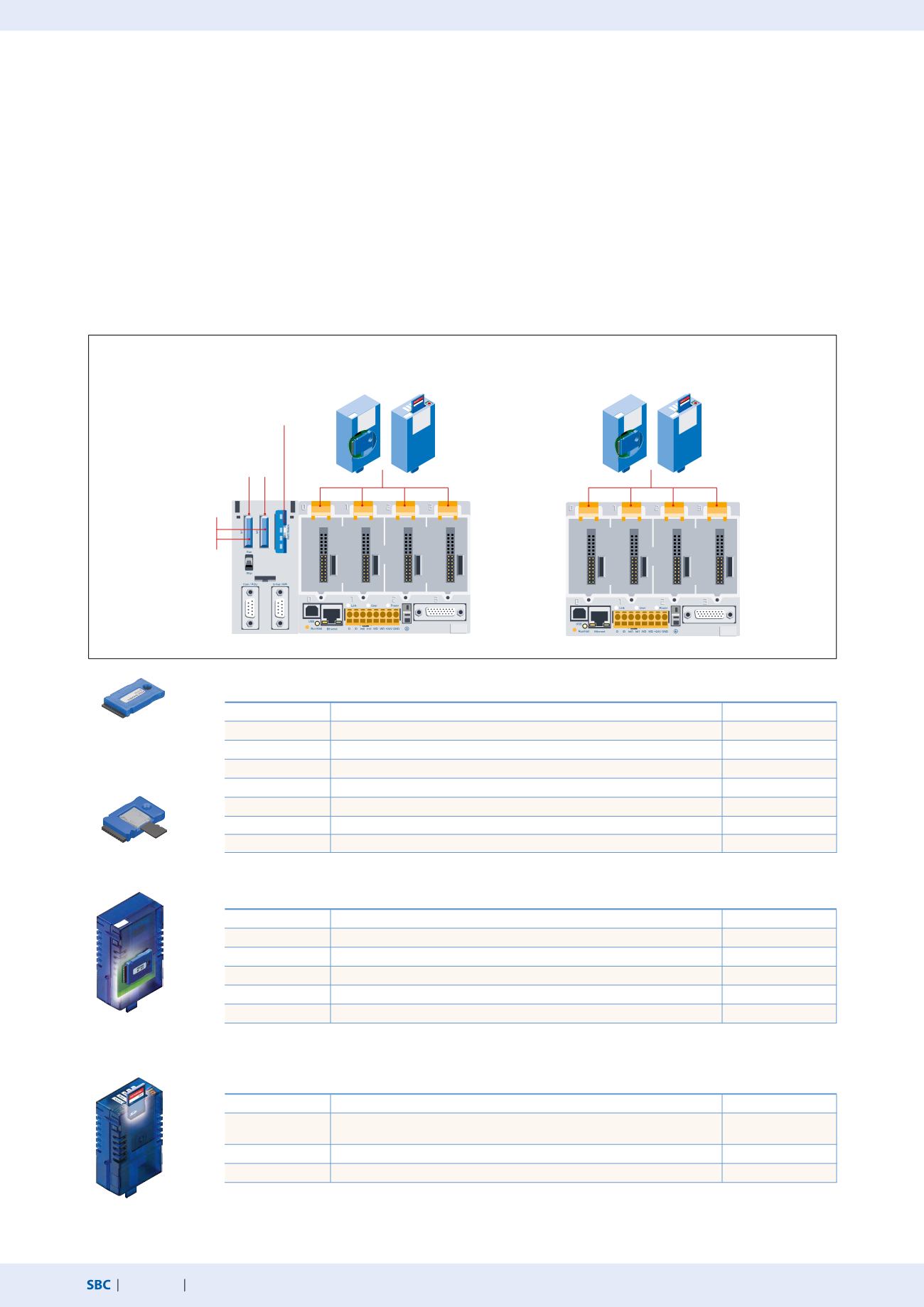

Memory modules of Saia PCD3.Mxxxx controllers
In addition to the onboard memory contained within the base units, PCD3 controllers can also be expanded in a modular way with vari-
ous flash memory modules for programs and data. The various communication protocols whose firmware is installed on the flashcards
can also be used by simply inserting the relevant card.
More information to memory management and construction can be found in the section 1.1 Saia PCD® System description.
System properties
Configuration, programs and data can be transferred from one CPU to another
Two slots (M1 and M2) for memory cards
Additional memory cards can be inserted in the I/O slots using I/O adapters
Memory can be expanded to 4 GByte
PCD3.M3xxx
PCD3.R55xM04
PCD3.R56x
PCD3.R58x PCD3.R600
PCD3.M5xxx / PCD3.M6xxx
PCD3.R55xM04
PCD3.R56x
PCD3.R58x PCD3.R600
PCD7.R55xM04
PCD7.R56x
PCD7.R58x
M2 M1
Slot
Battery holder module
PCD3.R600
PCD3.R55xM04
PCD3.R56x
PCD3.R58x
Flash memory with file system, program and data backup, BACnet® for slot M1/M2
Type
Description
Slot
PCD7.R550M04 4 MByte flashcard with file system
M1 & M2
PCD7.R560
Flashcard with BACnet®
M1 & M2
PCD7.R562
Flashcard with BACnet® and 128 MByte file system
M1 & M2
PCD7.R580
Flashcard with L
on
IP
M1 & M2
PCD7.R582
Flashcard with L
on
IP and 128 MByte file system
M1 & M2
PCD7.R610
*
Base module for Micro SD Flash Card
M1 & M2
PCD7.R-MSD1024
*
Micro SD Flash Card 1024 MB, PCD formatted
PCD7.R610
Plug-in flash modules for I/O-module slots of all PCD3.Mxxx0s
Type
Description
Slot
PCD3.R550M04 4 MByte flashcard with file system
I/O 0...3
PCD3.R560
Flashcard with BACnet®
I/O 0...3
PCD3.R562
Flashcard with BACnet® and 128 MByte file system
I/O 0...3
PCD3.R580
Flashcard with L
on
IP
I/O 0...3
PCD3.R582
Flashcard with L
on
IP and 128 MByte file system
I/O 0...3
Saia PCD3 basic module for SD flashcards with file system
Type
Description
Slot
PCD3.R600
Basic module with slot for SD flashcards
(Up to 4 modules in I/O slots 0 to 3 on a CPU)
I/O 0...3
PCD7.R-SD512
SD flashcard, 512 MByte with file system
---
PCD7.R-SD1024 SD flashcard, 1024 MByte with file system
---
Spare parts (battery and battery holder module) see Consumables and accessories
*
)
In preparation, see section C2 Product status
