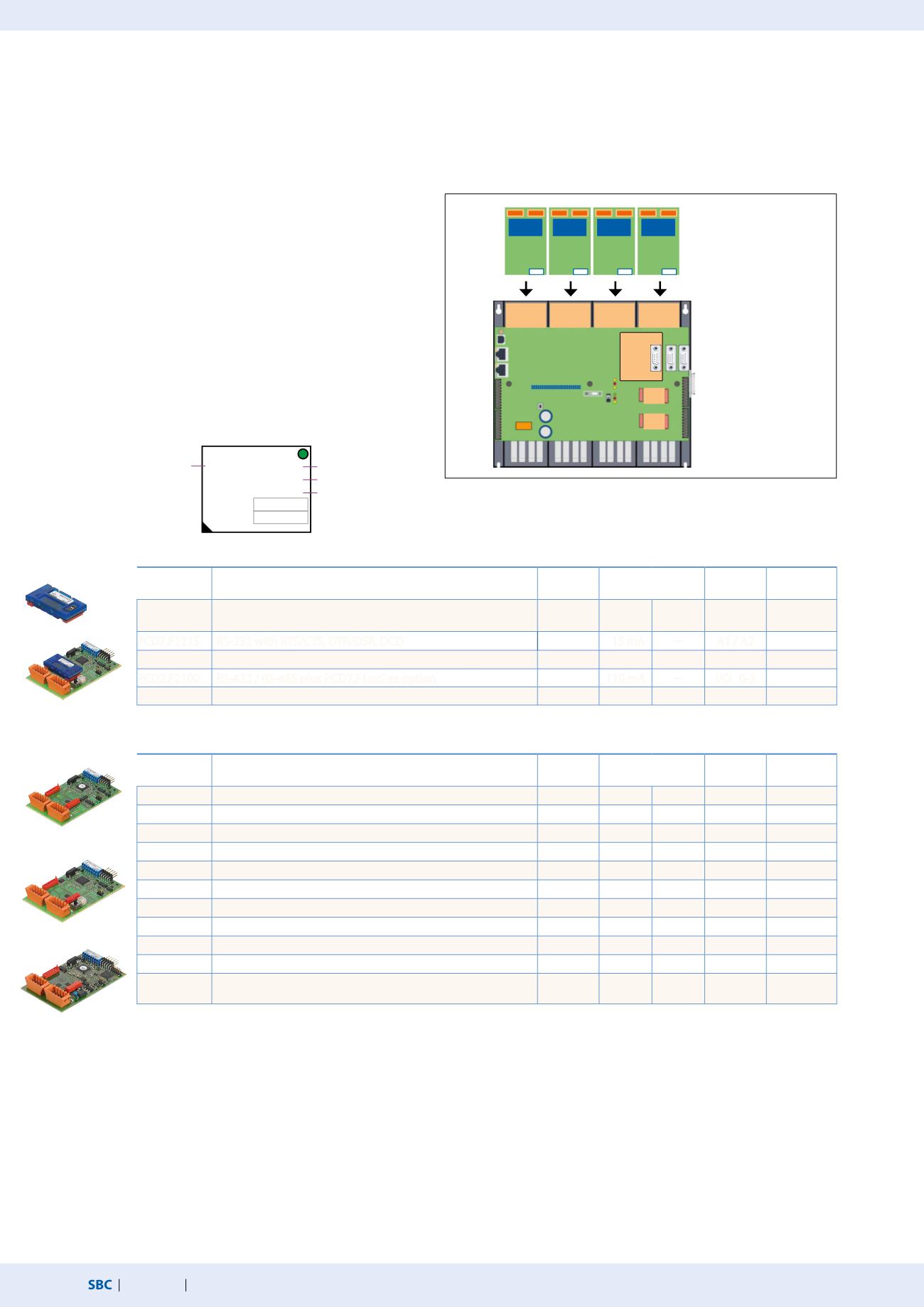

Automation stations – Saia PCD2
In addition to the On-Board interfaces of Saia PCD2, the interface functions can also be extended in a modular way by means of the
various slots. Numerous protocols are therefore supported by the PCD2.M5xxx series. The physical bus specifications are offered for the
majority of protocols as a plug-in module. If this is not the case, the bus can be connected via an external converter.
Protocols supported by the PCD2.M5xxx via FBoxes
Modem communication with the PCD
HMI editor applications with PCD7.Dxxx text terminals
Serial S-Net (S-Bus)
Modbus
JCI N2-Bus
KNX® S-Mode/EIB (with external converter)
DALI
EnOcean (with external converter)
M-Bus
BACnet®
Communication interfaces of the Saia PCD2.M5xxx controllers
Physical interfaces that can be freely programmed
Module
Specifications
Electrical
isolation
Current draw
5 V bus + V bus
Slot
I/O connec-
tor type
1)
PCD7.F110S RS-422 with RTS/CTS or RS-485,
with line termination resistors capable of activation.
---
40 mA
---
A1 / A2
PCD7.F121S RS-232 with RTS/CTS, DTR/DSR, DCD
---
15 mA
---
A1 / A2
PCD7.F150S RS-485 with line termination resistors capable of activation
●
130 mA
---
A1 / A2
PCD2.F2100 RS-422 / RS-485 plus PCD7.F1xxS as option
---
110 mA
---
I/O 0-3
2× K
PCD2.F2210 RS-232 plus PCD7.F1xxS as option
---
90 mA
---
I/O 0-3
2× K
Physical interfaces for specific protocols
Module
Specifications
Electrical
isolation
Current draw
5 V bus + V bus
Slot
I/O connec-
tor type
1)
PCD7.F180S Belimo MP-Bus, for connecting up to 8 drives on one line
---
15 mA 15 mA A1 / A2
PCD2.F2150 BACnet® MS/TP
---
110 mA
---
I/O 0-3
2× K
PCD2.F2400* L
on
W
orks
®-Interface-Modul
---
90 mA
---
I/O 0-3
L9
PCD2.F2610 DALI
---
90 mA
---
I/O 0-3
L
PCD2.F2700 M-Bus 240 nodes
---
70 mA 8 mA I/O 0-3
L
PCD2.F2710 M-Bus 20 nodes
---
70 mA 8 mA I/O 0-3
L
PCD2.F2720 M-Bus 60 nodes
---
70 mA 8 mA I/O 0-3
L
PCD2.F2730 M-Bus 120 nodes
---
70 mA 8 mA I/O 0-3
L
PCD2.F2810 Belimo MP-Bus with slot for PCD7.F1xxS modules
---
90 mA 15 mA I/O 0-3
2× K
PCD7.F7500 Profibus-DP Master
---
200 mA
---
C
PCD2.T814 Analog modem 33.6 kbit/s (RS-232 and TTL interface)
---
250 mA
---
I/O 4 +
A1
1)
Plug-in I/O terminal blocks are included with I/O modules.
Spare terminals, ribbon connectors with system cables and separate terminals are ordered as accessories (see pages 34 and 78).
*
)
In preparation, see section C2 Product status
System properties of PCD2.F2xxx modules:
The following points must be observed when using the PCD2.F2xxx interface modules:
For each PCD2 system, up to 4 PCD2.F2xxx modules (8 interfaces) can be used in slots 0…3.
The PCD2 system has a processor to look after both the application and the serial interfaces. Processing of the interface
modules requires the appropriate CPU capacity.
To determine the maximum communication capacity for each PCD2.M5 system, consult the information and examples
provided in Manual 26/856 for PCD2.M5.
Saia FBoxes for Modbus
Slots for interface modules
PCD2.F2210
PCD2.F2150
PCD2.F2810
PCD7.F150S
PCD2.F2150
mit PCD7.F150S
Slot no.
max. 4 PCD2.F2xxx
