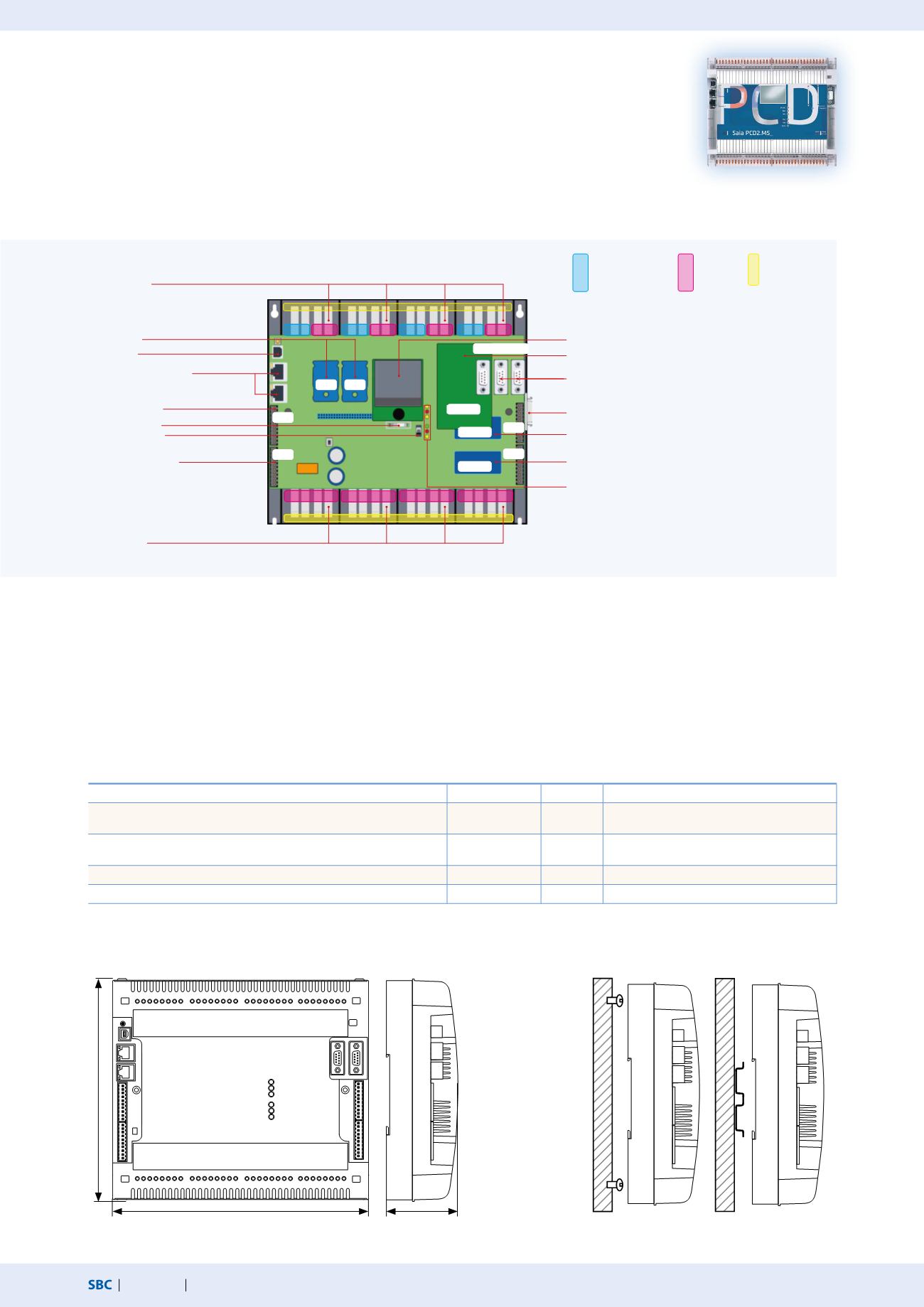

Automation stations – Saia PCD2
Saia PCD2.M5xxx controllers
Due to its flat housing design, the Saia PCD2.M5xxx is especially suitable for space-saving applications.
The powerful CPU enables the control and regulation functions of complex applications with up to 1,023
central data points. The PCD2 can be expanded by means of plug-in memory modules to become a
L
on
IP® or BACnet®-enabled controller. The PCD2 has communication interfaces such as USB, Ethernet,
RS-485 and Automation Server On-Board.
System properties
Up to 15 communication interfaces (RS-232, RS-485, etc.)
8 I/O slots that can be expanded by means of module holders
to max. 64 slots (1,023 central data points)
Local I/O expansion with RIO-PCD3.T66x (Ethernet) or
PCD3.T760 (Profi-S-IO)
1 MByte of program memory
Dimensions
On-Board interfaces of the Saia PCD2.M5xxx
Type
Connection
Port
Transmission rate
RS-232 (serial) or
RS-485 (serial)
X2 (D-Sub)
X5 (terminal)
0
0
≤ 115.2 kbit/s
≤ 115.2 kbit/s
RS-485 (serial) for free protocols or
Profi-S-Net / Profibus-DP Slave
X1 (D-Sub)
X1 (D-Sub)
3
10
≤ 115.2 kbit/s
≤ 1.5 Mbit/s
Ethernet (2 port switch) (PCD2.M5540 only)
Ethernet
9
10/100 Mbit/s
USB 1.1 (PGU)
USB
---
≤ 12 Mbit/s
Mounting
Automation Server On-Board
Data memory with flash memory modules that can be ex-
panded to 4 GByte
6 fast interrupt/counter inputs on the CPU
Compatible with all PCD3 module holders
8 I/O-module slots 0…7
Connection for I/O expansion
I/O bus for
standard
modules
Fast serial bus (SPI)
for running up to 4
intelligent modules
Ground con-
nection for
I/O modules
I/O 7
I/O 6
I/O 5
I/O 4
Flash cards
USB port
2-port Ethernet switch
(PCD2.M5540 only)
Interrupt inputs
Lithium battery
On-Board interface
and power supply
Run/stop switch
LEDs
Opening for LCD display
C slot for Profibus Master module
Connections for On-Board interfaces
Slot for communication module with X3 connection
With regard to the power supply and the
grounding plan, the same instructions are to be
followed as for the PCD3 in section 1.2 and in
Manual 26/856.
Slot for communication module with X4 connection
PCD2.M5xx0
Module slot
Module slot
I/O 0
I/O 1
I/O 2
I/O 3
