Automation stations – Saia PCD3
5
4
3
2
1
Cabinet
components
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Consumption data
acquisition

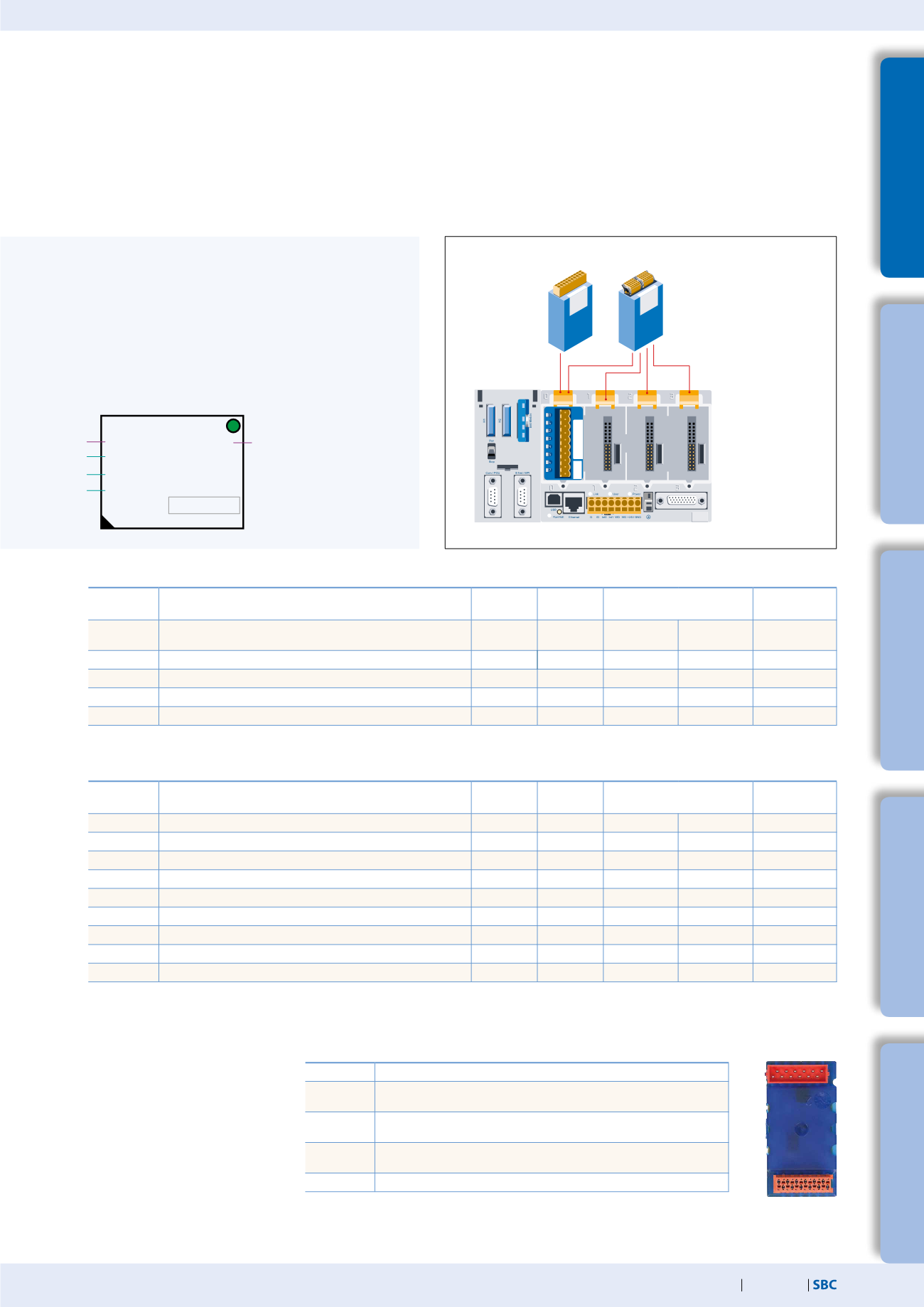

Communication interfaces of Saia PCD3.Mxxxx controllers
In addition to the interfaces that the Saia PCD3 has onboard, the interface functions can also be expanded by means of various slots.
Numerous protocols are therefore supported by the PCD3. For the majority of protocols, the physical bus specifications are offered as a
plug-in module. If this is not the case, the bus can be connected via an external converter.
Modem communication
with the PCD
S-Bus
Modbus
JCI N2-Bus
KNX® S-Mode/EIB (with
external converter)
PCD3.F1xx
for slot 0
Port 1 RS-232
or
RS-422
or
RS-485
or
MP-Bus
PCD3.F2xx
for slot no. 0…3
PCD3.F221
RS-232
PCD3.F210
RS-422/RS-485
PCD3.F281
MP-Bus
PCD3.F215
BACnet®-MS/TP
PCD3.F261
DALI
PCD3.F27x
M-Bus
DALI
EnOcean
(with external converter)
M-Bus
BACnet® MS/TP
HMI editor applications
with PCD7.Dxxx text
terminals (RS-232 only)
Protocols supported by PCD3.Mxxxx via FBoxes
Physical interfaces for specific protocols
Module
Specifications
Slot
Electrical
isolation
Internal current draw
5V +V (24V)
I/O connector
type
1)
PCD3.F180 Belimo MP-Bus, for connecting up to 8 drives on one line
I/O 0
---
15 mA
15 mA
A
PCD3.F215 BACnet® MS/TP
I/O 0…3
---
110 mA
---
2× K
PCD3.F240* L
on
W
orks
®-Interface-Modul only for PCD3.M5x6x
I/O 0…3
---
90 mA
---
A9
PCD3.F261 DALI
I/O 0…3
---
90 mA
---
A
PCD3.F270 M-Bus 240 nodes
I/O 0…3
---
70 mA
8 mA
A
PCD3.F271 M-Bus 20 nodes
I/O 0…3
---
70 mA
8 mA
A
PCD3.F272 M-Bus 60 nodes
I/O 0…3
---
70 mA
8 mA
A
PCD3.F273 M-Bus 120 nodes
I/O 0…3
---
70 mA
8 mA
A
PCD3.F281 Belimo MP-Bus with slot for PCD7.F1xxS modules
I/O 0…3
---
90 mA
15 mA
2× K
1)
Plug-in I/O terminal blocks are included with I/O modules.
Spare terminals, ribbon connectors with system cables and separate terminals are ordered as accessories (see pages 34 and 78).
Physical interfaces that can be freely programmed
Module
Specifications
Slot
Electrical
isolation
Internal current draw
5V +V (24V)
I/O connector
type
1)
PCD3.F110 RS-422 with RTS/CTS or RS-485,
with activatable terminating resistors.
I/O 0
---
40 mA
---
A
PCD3.F121 RS-232 with RTS/CTS, DTR/DSR, DCD
I/O 0
---
15 mA
---
A
PCD3.F150 RS-485 with activatable terminating resistors.
I/O 0
●
130 mA
---
A
PCD3.F210 RS-422 / RS-485 plus PCD7.F1xxS as an option
I/O 0…3
---
110 mA
---
2× K
PCD3.F221 RS-232 plus PCD7.F1xxS as an option
I/O 0…3
---
90 mA
---
2× K
System properties of PCD3.F2xxx
modules:
The PCD3 system has a processor,
who handles both the application
and the serial ports. To determine the
maximum communication capacity for
each PCD3.M5xxx system, consult the
information and examples provided in
Manual 26-789 for PCD3.M5xxx.
Interface modules for optional insertion in PCD3.F2xx modules
Module
Specifications
PCD7.F110S RS-422 with RTS/CTS or RS-485 (electrically connected),
with activatable terminating resistors.
PCD7.F121S RS-232 with RTS/CTS, DTR/DSR, DCD.
Suitable for modem connection and EIB connection.
PCD7.F150S RS-485 (electrically isolated),
with activatable terminating resistors.
PCD7.F180S Belimo® MP-Bus, for connecting up to 8 drives on one line
*
)
In preparation, see section C2 Product status
