Automation stations – Saia PCD2
5
4
3
2
1
Cabinet
components
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Consumption data
acquisition

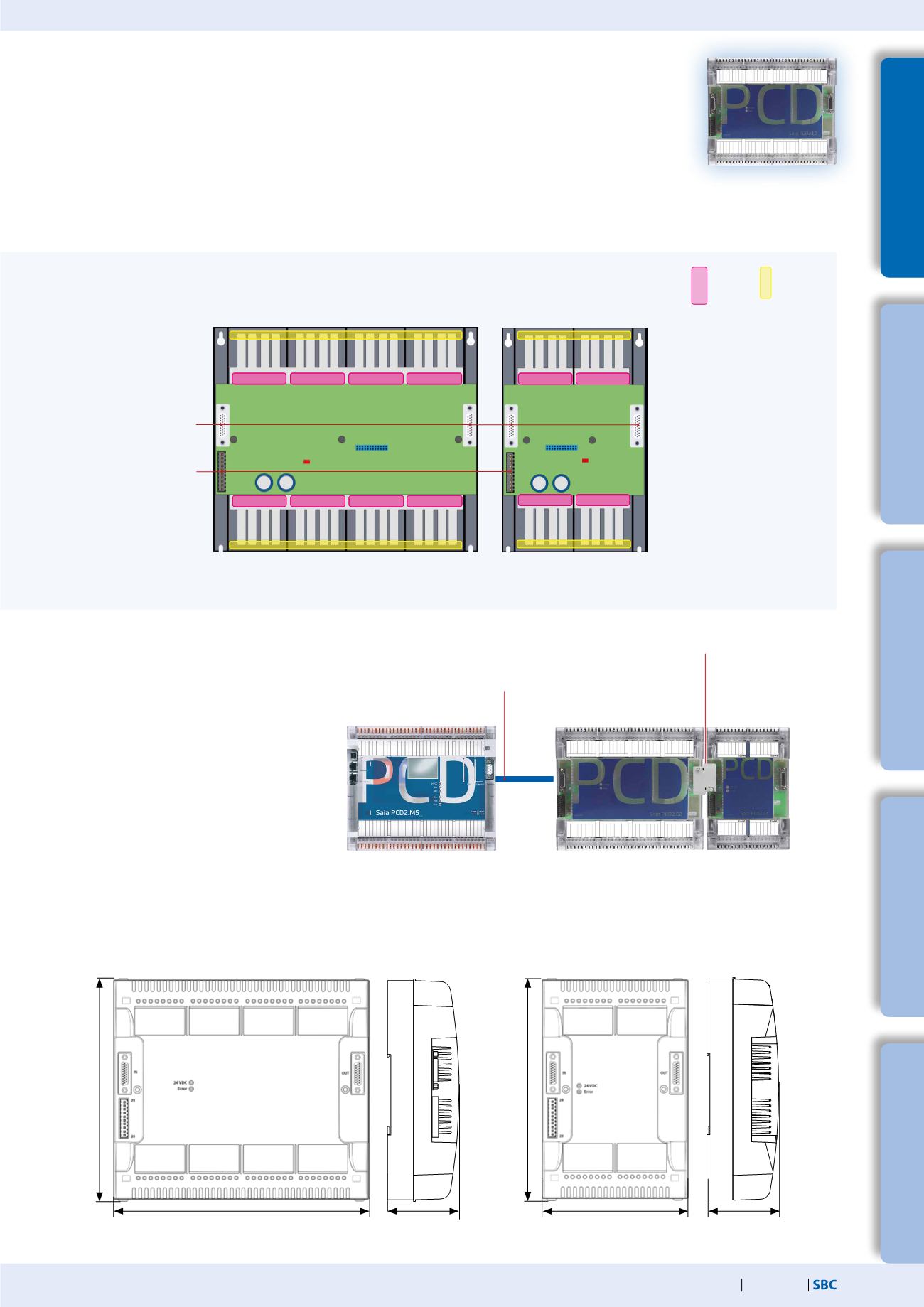

Saia PCD2.Cxxxx module holder
Up to 7 Saia PCD2.C1000 or Saia PCD2.C2000 module holders can be connected to the
Saia PCD2.M5xxx. This makes it possible to connect up to 64 I/O modules or 1023 digital inputs/out-
puts. A module holder has space for 4/8 I/O modules. In addition to Saia PCD2.Cxxxx module holders,
all Saia PCD3 module holders can also be connected.
8 I/O-module slots 0…7
Power supply
I/O bus
4 I/O-module slots 0…3
PCD2.C2000
PCD2.C1000
I/O bus for
standard
modules
Ground con-
nection for
I/O modules
I/O 7
I/O 6
I/O 5
I/O 4
I/O 0
I/O 1
I/O 2
I/O 3
I/O 0
I/O 1
I/O 3
I/O 2
System properties
Up to 1,023 central data points
Numerous module variants can be
plugged in
Mounting is quick and easy
Can be combined with Saia PCD3.Cxxx
module holders
Connections for a power supply on each
module holder
Can be connected below or next to each
other
A maximum of 7 module holders can be connected to a PCD2.M5xxx.
In this case, no more than 5 extension cables may be used.
PCD3.Kxxx cables required for connection between two module carriers.
I/O bus connection
PCD2.K010
or
I/O bus extension cable
PCD3.K106
PCD3.K116
I/O bus extension cable
PCD2.K106
Dimensions of PCD2.C2000
Dimensions of PCD2.C1000
