Automation stations – Saia PCD3

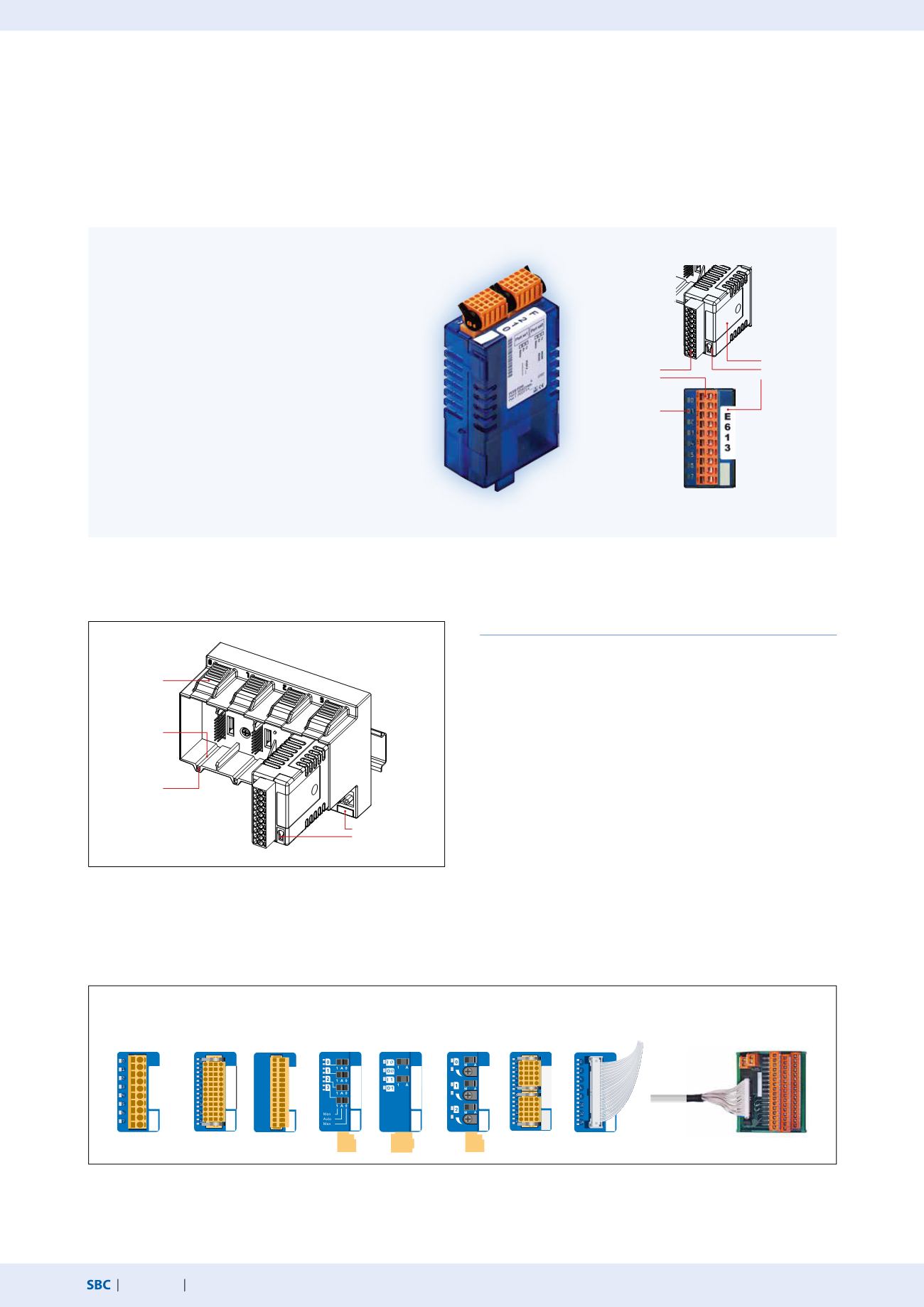

Saia PCD3 input and output modules in cassette design
The functions of the Saia PCD3 can be expanded as required using a wide range of plug-in I/O modules and can be adapted to
specified needs. This not only ensures that a project can be implemented quickly but also provides the option of expanding or
modifying the system at any time.
System properties
Numerous variants available
Slot directly in the Saia PCD3 basic CPU or in
the module holder
Full integration into the Saia PCD3 housing
Stable cassette design
Connection to the I/O level via plug-in spring
terminal blocks or ribbon cables and adapters
I/O terminal blocks are supplied as standard
No tools required for replacing modules
Plug-in
connection
terminals
Type plate
with
connection
name
LED to
indicate status
Insertion of I/O modules
Clips
Screw as an
additional
safeguard
Guideway
PCD3 with
4 module positions
Label holder
Types
PCD3.Axxx
Digital output modules
PCD3.Bxxx
Digital combined input/output modules
PCD3.Exxx
Digital input modules
PCD3.Fxxx
Communication modules
PCD3.Hxxx
Fast counter modules
PCD3.Rxxx
Memory modules
PCD3.Wxxx
Analog input/output modules
More than 50 modules available with different functionalities
Type A
10-pin
2.5 mm
2
Connecting plugs/terminals
Type D
Connecting plug for ribbon cable
(not supplied with the module)
Type K
10-pin
1.0 mm
2
Type J
8-pin
1.5 mm
2
Type G + H
4 + 6-pin
2.5 + 1.5 mm
2
Type F
12-pin
1.5 mm
2
Type E
14-pin
1.5 mm
2
Type C
24-pin
1.0 mm
2
Spare terminals, ribbon connectors with system cables and separate terminals are ordered as accessories.
Simple exchange of I/O modules
