Automation stations – Saia PCD3

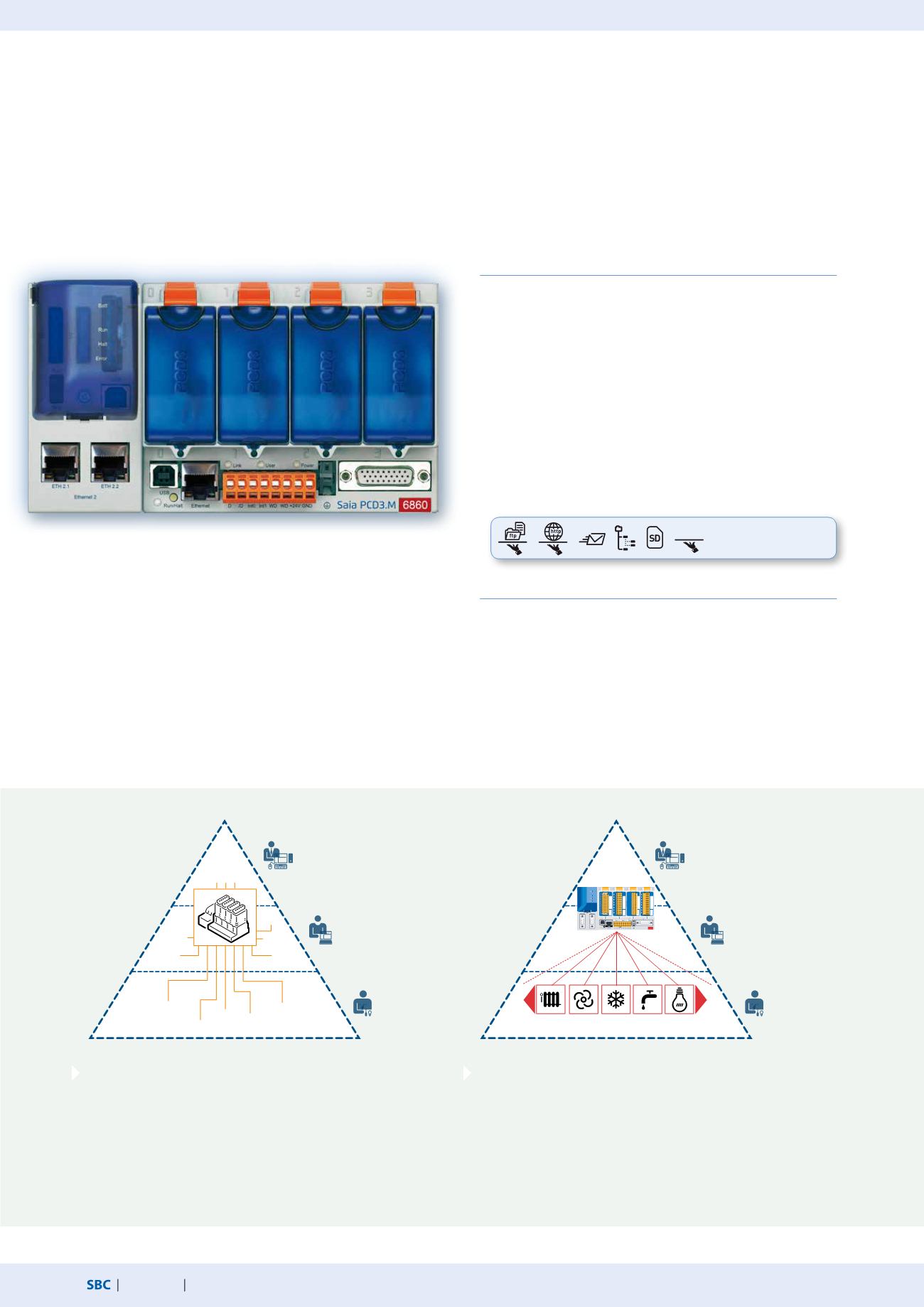

Saia PCD3.Mxx60 controllers
High Power CPU for all requirements
The Saia PCD3 Power CPU has sufficient system re-
sources to operate up to 13 communication interfaces in
the same device. Even the most demanding tasks, such
as simultaneous communication via BACnet® and L
on
IP,
are handled reliably.
Types
PCD3.M5560
CPU basic module with Ethernet TCP/IP,
2 MByte of program memory
PCD3.M6560
CPU basic module with Ethernet TCP/IP and
Profibus-DP Master 12 Mbit/s,
2 MByte of program memory
PCD3.M6860
CPU basic module with 2 × Ethernet TCP/IP,
2 MByte of program memory
The generous memory resources (4 GByte) of the new PCD3
Power CPU make it possible to record/monitor, archive and
control the data and statuses of all trades in the Saia PCD®, even
without computer equipment and control system software.
Applications for the various subsystems (HVAC) can be conveni-
ently created using the graphical PG5 engineering tool and
application-specific software libraries.
Thanks to the fast processor and the increased system resources, the Power CPU has sufficient power reserves to
process the most demanding control and communication tasks.
System properties
Up to 1’023 inputs/outputs
Can be expanded locally with RIO PCD3.T66x or PCD3.T76x
Up to 13 communication interfaces
USB and Ethernet interface onboard
2 Ethernet interfaces (PCD3.M6860 only)
Fast program processing (0.1μs for bit operations)
Large onboard memory for programs (2 MByte)
and data (128 MByte file system)
Memory with SD flashcards can be expanded to 4 GByte
Automation Server for the integration into Web/IT systems
SNMP
Automation Server
integrated in
the base unit
L
ON
-IP
CAN
EnOcean
MP-Bus
KNX-EIB
DALI
M-Bus
Modbus
Profibus
BACnet®
Telecom
munications
Internet
Ethernet
Management
level
Automation
level
Field
level
Management
level
Automation
level
Field
level
Heating – ventilation – air conditioning –
plumbing – electrical
