Automation stations – Saia PCD3
5
4
3
2
1
Cabinet
components
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Consumption data
acquisition

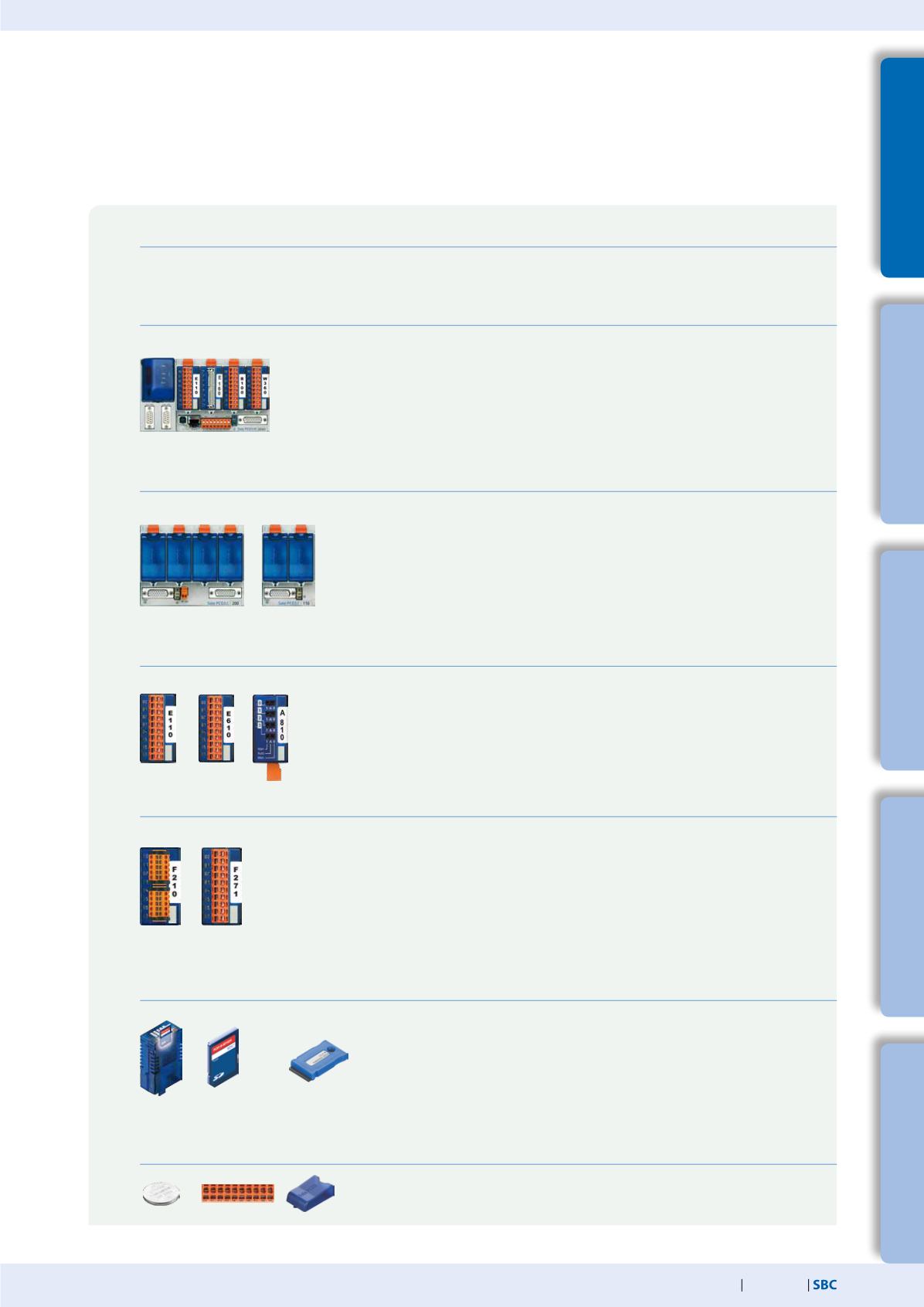

Saia PCD3.Mxxxx controllers
Page
22
Base units with 4 slots for I/O modules
PCD3.Mxx60 High Power CPU
PCD3.M5xxx Standard CPU
PCD3.M3xxx Minimum Basic CPU
Up to 5 integrated communication interfaces, can be extended to max. 13
communication interfaces with plug-in modules. Integrated Automation Server
in all CPUs.
Saia PCD3.Cxxx module holder for I/O expansion
Page
21
Module holder for I/O modules
PCD3.C100 4 I/O slots
PCD3.C110 2 I/O slots
PCD3.C200 4 I/O slots with 24 VDC power supply
Expansion to max. 1,023 I/Os
Saia PCD3 input/output modules in cassette design
Page
26
Modules with various functions with plug-in terminals
PCD3.Axxx Digital output modules
PCD3.Bxxx Digital combined input/output modules
PCD3.Exxx Digital input modules
PCD3.Wxxx Analog input/output modules
Saia PCD3 interface modules
Page
31
Plug-in modules to extend the communication interfaces
(up to 4 modules or 8 interfaces)
PCD3.F1xx 1 serial interface RS-232, RS-422/485
PCD3.F2xx 2 serial interfaces RS-232, RS-422/RS-485
PCD3.F215 BACnet® MSTP
PCD3.F26x DALI
PCD3.F27x M-Bus
PCD3.F28x Belimo MP-Bus
Saia PCD3 memory modules
Page
32
Plug-in memory modules for data and program backup
PCD3.R5xx
Flash memory module for slots 0…3
PCD3.R6xx
Basic module for SD flashcard for slots 0…3
PCD7.R-SD
SD flashcards for PCD3.R6xx
PCD7.R5xx Flash memory module for slots M1 and M2
Consumables and accessories for Saia PCD3 controllers
Page
33
Batteries, terminals, system cables, labeling accessories…
1.2
Saia PCD3 series
1.2.1
Saia PCD3 controllers
Layout for the Saia PCD3 series
Page
20
Description of the basic structure and general features of the modular Saia PCD3
series
