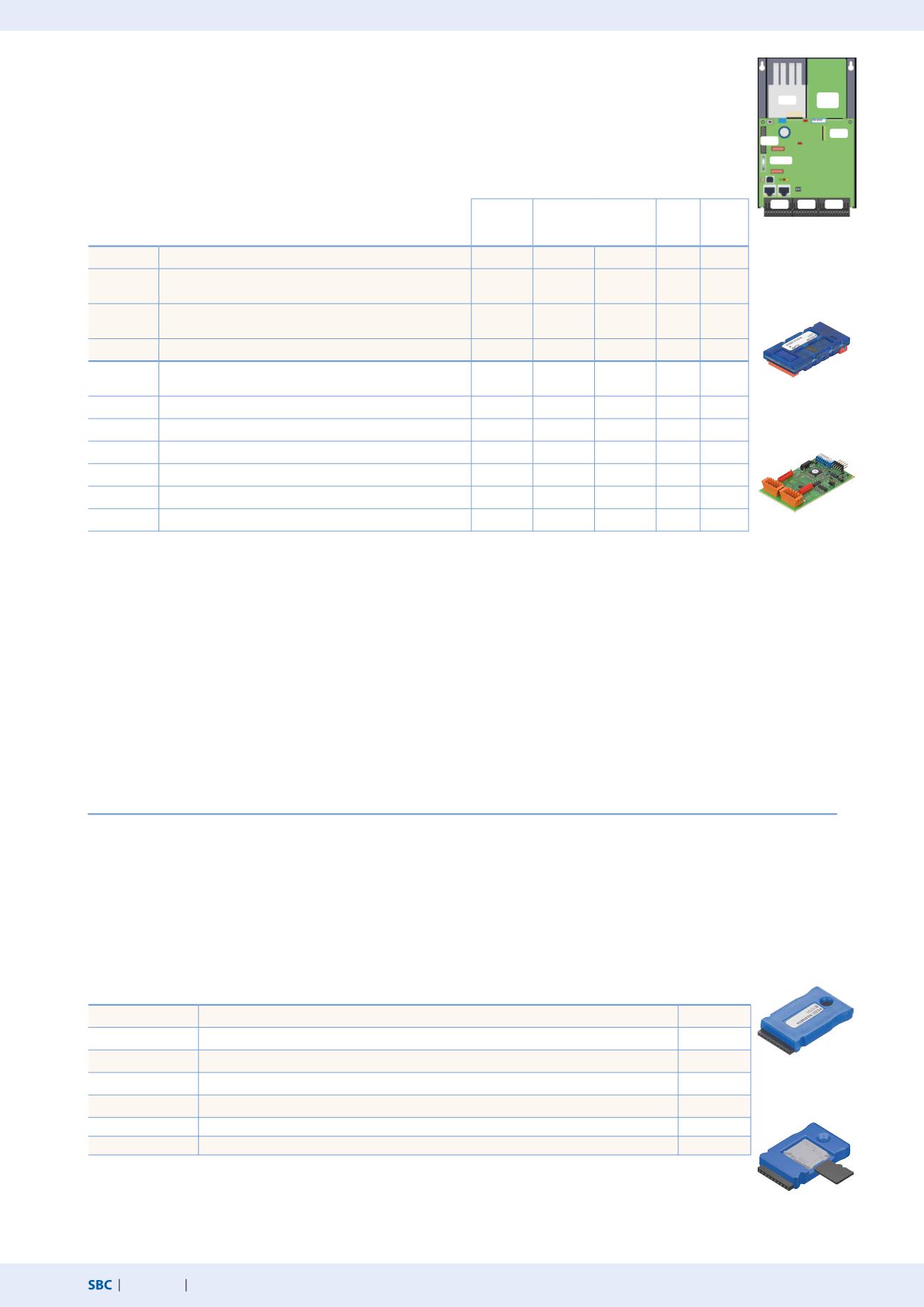

Automation stations – Saia PCD1
System properties of PCD2.F2xxx modules
The following points must be observed when using the PCD2.F2xxx interface modules:
For each PCD1.M2120R1 Room Edition, up to 1 PCD2.F2xxx module (2 interfaces) can be used in slot I/O 0.
To determine the maximum communication capacity for each PCD1.M2 system, consult the information and examples
provided in Manual 27/619 für PCD1.M2110R1.
The onboard memory can be extended by means of a PCD7.Rxxx module in slot M1. In addition, BACnet® IP or LON IP
can be activated.
For more information about memory management and construction, see Chapter 1.1 Saia PCD® System description.
Memory modules
In addition to the onboard interfaces, the interface functions can also be extended in a modular way by
means of the various slots. Numerous protocols are therefore supported by the Saia PCD1.M2110R1.
A detailed list of all the protocols can be found in the section BA communication systems.
Saia PCD1.Room (PCD1.M2110R1) interface options
IO0
Memory extension and communication
PCD7.R550M04
Flash memory module with 4 MByte file system (for user program backup, web pages, etc.)
M1
PCD7.R560
Flash memory module for BACnet® firmware
M1
PCD7.R562
Flash memory module for BACnet® firmware with 128 MByte file system
M1
PCD7.R580
Flash memory module for L
on
IP firmware
M1
PCD7.R582
Flash memory module for L
on
IP firmware with 128 MByte file system
M1
PCD7.R610
*
Base module for Micro SD Flash Card
M1
PCD7.R-MSD1024
*
Micro SD Flash Card 1024 MB, PCD formatted
PCD7.R610
*
)
In preparation, see section C2 Product status
Communication
Electrical
isolation
Internal current draw
5V +V (24V)
Slot
I/O con-
nector
type
1)
PCD7.F110S RS-485/RS-422 not electrically isolated
---
40 mA
–
Slot A
PCD7.F121S RS-232 with RTC/CTS, DTR/DSR, DCD suitable for modem,
EIB connection
---
15 mA
–
Slot A
PCD7.F150S RS-485 electrically isolated,
with activatable termination resistors
●
130 mA
–
Slot A
PCD7.F180S Belimo MP-Bus, for connecting up to 8 drives on one line
---
15 mA 15 mA Slot A
PCD2.F2100 RS-422/RS-485 (not electrically isolated)
plus PCD7.F1xxS as option
---
110 mA
–
IO 0/1
2× K
PCD2.F2150 BACnet® MS/TP RS-485 plus PCD7.F1xxS as option
---
110 mA
–
IO 0/1
2× K
PCD2.F2210 RS-232 plus PCD7.F1xxS as option
---
90 mA
–
IO 0/1
2× K
PCD2.F2400* L
on
W
orks
®-Interface-Modul
---
90 mA
–
IO 0/1 L9
PCD2.F2610 DALI master for up to 64 DALI-devices
---
90 mA
–
IO 0/1 L
PCD2.F27x0 M-Bus master with 2 M-Bus interfaces
---
70 mA 8 mA IO 0/1 L
PCD2.F2810 Belimo MP-Bus plus PCD7.F1xxS as option
---
90 mA 15 mA IO 0/1
2× K
1)
Plug-in I/O terminal blocks are included with I/O modules.
Spare terminals, ribbon connectors with system cables and separate terminals are ordered as accessories (see pages 34, 52 and 78).
