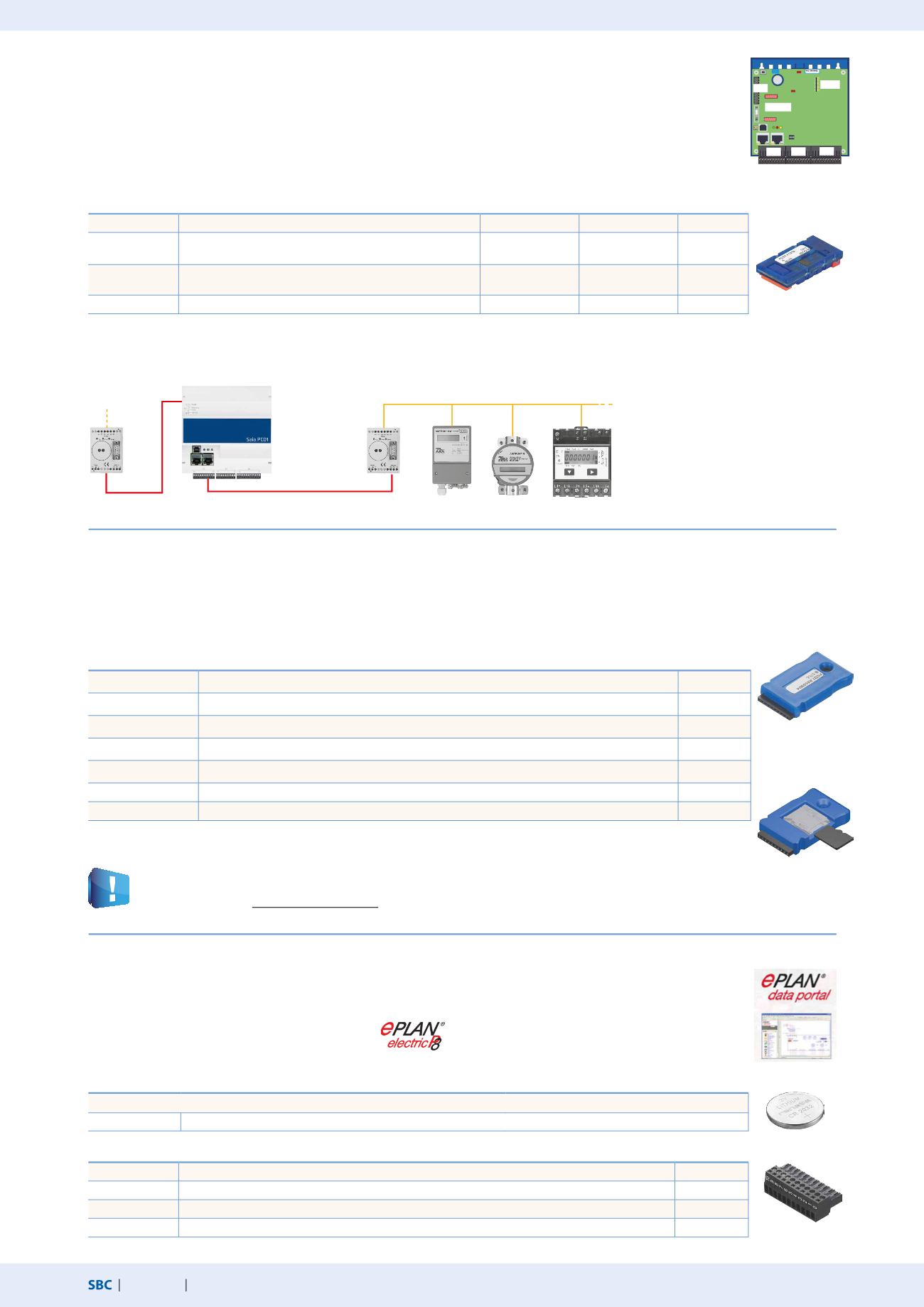

64
saia-pcd.com
PCD
1
RS-232
M-Bus
RS-485
M-Bus
PCD7.R55xM04
PCD7.R610
M-Bus
Automation stations – Saia PCD1
Plug-in screw terminal blocks
4 405 5089 0 Plug-in screw terminal block, 11-pole, labeling 0…10
Terminal X0
4 405 5087 0 Plug-in screw terminal block, 9-pole, labeling 11…19
Terminal X1
4 405 5088 0 Plug-in screw terminal block, 10-pole, labeling 20…29
Terminal X2
4 405 4919 0 Plug-in screw terminal block, 10-pole, labeling 30…39
Terminal X3
Battery for data backup
Type
Description
4 507 4817 0 Lithium battery for PCD processor unit (RENATA button battery type CR 2032)
Accessories and consumables
Memory modules
For the parallel operation of S-Monitoring and BACnet® respectively L
on
, please note the instructions on the
support homepage
Communication
Current
consumption
at 5V bus
Current
consumption
at +V bus (24 V)
PCD7.F110S
RS-485/RS-422 not electrically isolated
40 mA
---
Slot A
PCD7.F121S
RS-232 with RTC/CTS, DTR/DSR,
DCD suitable for modem or EIB connection
15 mA
---
Slot A
PCD7.F150S
RS-485 electrically isolated,
with activatable termination resistors
130 mA
---
Slot A
PCD7.F180S
Belimo MP-Bus, for connecting up to 8 drives on one line
15 mA
15 mA
Slot A
In addition to the onboard interfaces, modular expansion of interface functions is possible at slot A.
For this purpose, the Saia PCD1.M0160E0 supports numerous protocols. A detailed list of all protocols
find in chapter B2„Communication & Interaction“.
Interface options Saia PCD® E-Controller (PCD1.M0160E0)
M1
Slot A
X0
X1 X2
X3
EPLAN macros
For project planning and engineering
EPLAN macros are available
The onboard memory can be extended by means of a PCD7.Rxxx module in slot M1. In addition, BACnet® IP or LON IP
can be enabled.
For more information about memory management and construction, see Chapter 1.1 Saia PCD® System description.
Connection example: M-Bus with external interface
ePLAN® electric P8 macros are available from the
support page.
Macros and product data may also be obtained
from the ePLAN® data portal.
Memory extension and communication
PCD7.R550M04
Flash memory module with 4 MByte file system (for user program backup, web pages, etc.)
M1
PCD7.R560
Flash memory module for BACnet® firmware
M1
PCD7.R562
Flash memory module for BACnet® firmware with 128 MByte file system
M1
PCD7.R580
Flash memory module for L
on
IP firmware
M1
PCD7.R582
Flash memory module for L
on
IP firmware with 128 MByte file system
M1
PCD7.R610
*
Base module for Micro SD Flash Card
M1
PCD7.R-MSD1024
*
Micro SD Flash Card 1024 MB, PCD formatted
PCD7.R610
*
)
In preparation, see section C2 Product status
