Automation stations – Saia PCD1
5
4
3
2
1
Cabinet
components
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Consumption data
acquisition
Applications
Room control units
Options for programmable applications:
Radiators
Fan-coil applications
Cooling ceiling
VAV – variable air volume
Air quality control
Signal contacts (occupancy control,
presence detection, window monitoring)
Lighting control
Blind control
etc.
Connection options via the following:
Analog signals (onboard)
S-Bus (onboard)
Modbus (onboard)
Internet access, web server (onboard)
BACnet® with PCD7.R56x (slot M1)
BACnet® MS/TP with PCD2.F2150* (slot I/O 0)
LON IP with PCD7.R58x (slot M1)
LON FTT 10 with PCD2.F2400 * (slot I/O 0)
KNX over IP (IP onboard)
KNX TP with an external coupler
EnOcean with external receiver
Battery for data backup
Type
Description
4 507 4817 0 Lithium battery for PCD processor unit (RENATA button battery type CR 2032)
Plug-in screw terminal blocks
4 405 5089 0
Plug-in screw terminal block, 11-pole, labeling 0…10
Terminal X0
4 405 5087 0
Plug-in screw terminal block, 9-pole, labeling 11…19
Terminal X1
4 405 5088 0
Plug-in screw terminal block, 10-pole, labeling 20…29
Terminal X2
Cover
4 104 7759 0
Housing cover for PCD1.M2xxx without SBC-Logo
can be individually designed on site with a foil

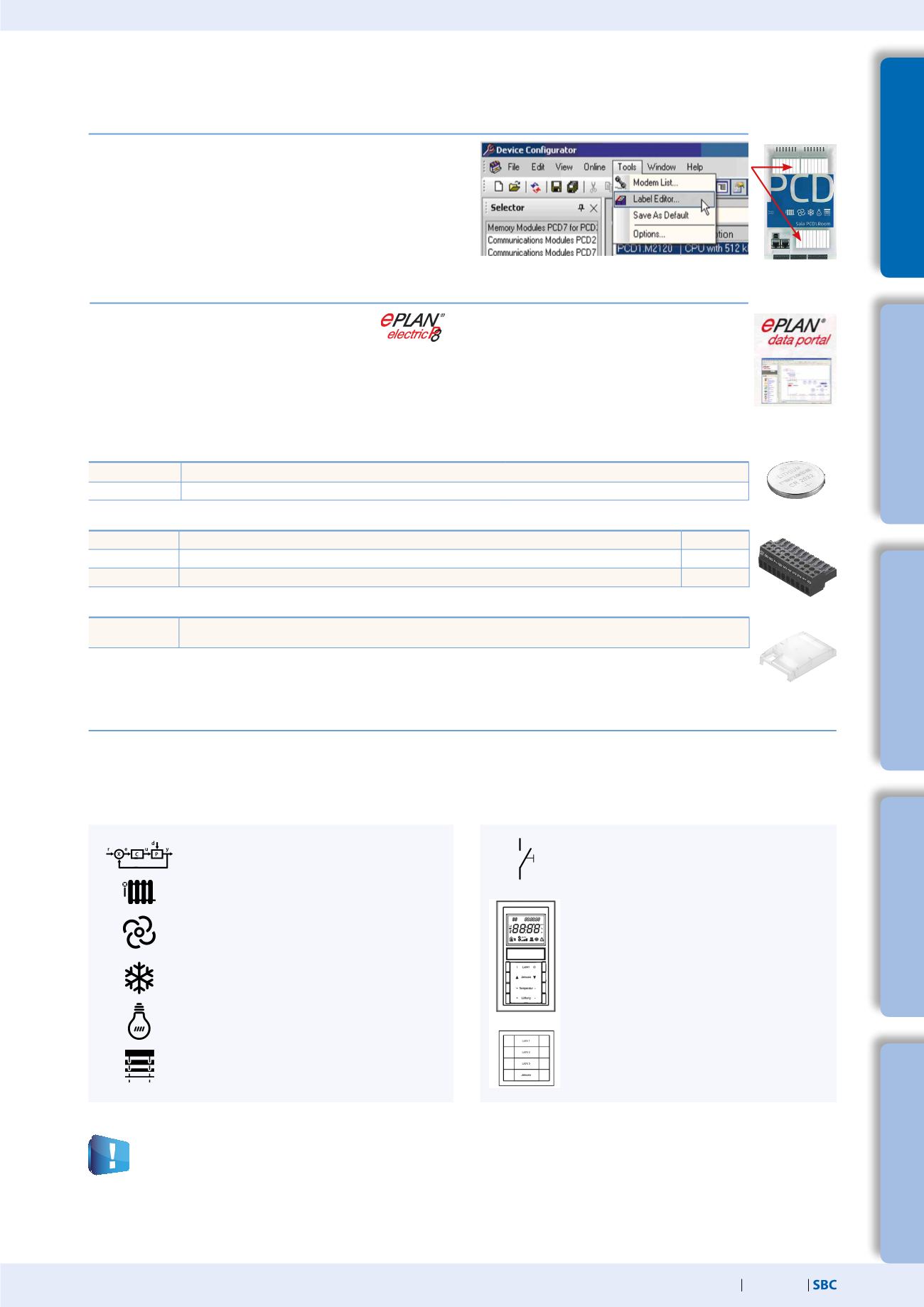

Accessories and consumables for Saia PCD1.Room (PCD1.M2110R1)
Applications should be examined closely taking account of the number of I/Os. Depending on the application, coupling
relays (for example: PCD7.L252) or S-Bus RIOs (PCD7.L200/L210) may be required. The S-Bus and Modbus stations are limited
to a maximum of 10 units.
Range of uses
Labeling
The self-adhesive labels can be printed directly with the
SBC LabelEditor from the PG5 Device Configurator
EPLAN macros
For project planning and engineering
EPLAN macros are available
ePLAN® electric P8 macros are available from the
support page.
Macros and product data may also be obtained
from the ePLAN® data portal.
* In preparation, see chapter C2“Product status”
