Automation stations – RIO
1.6.1

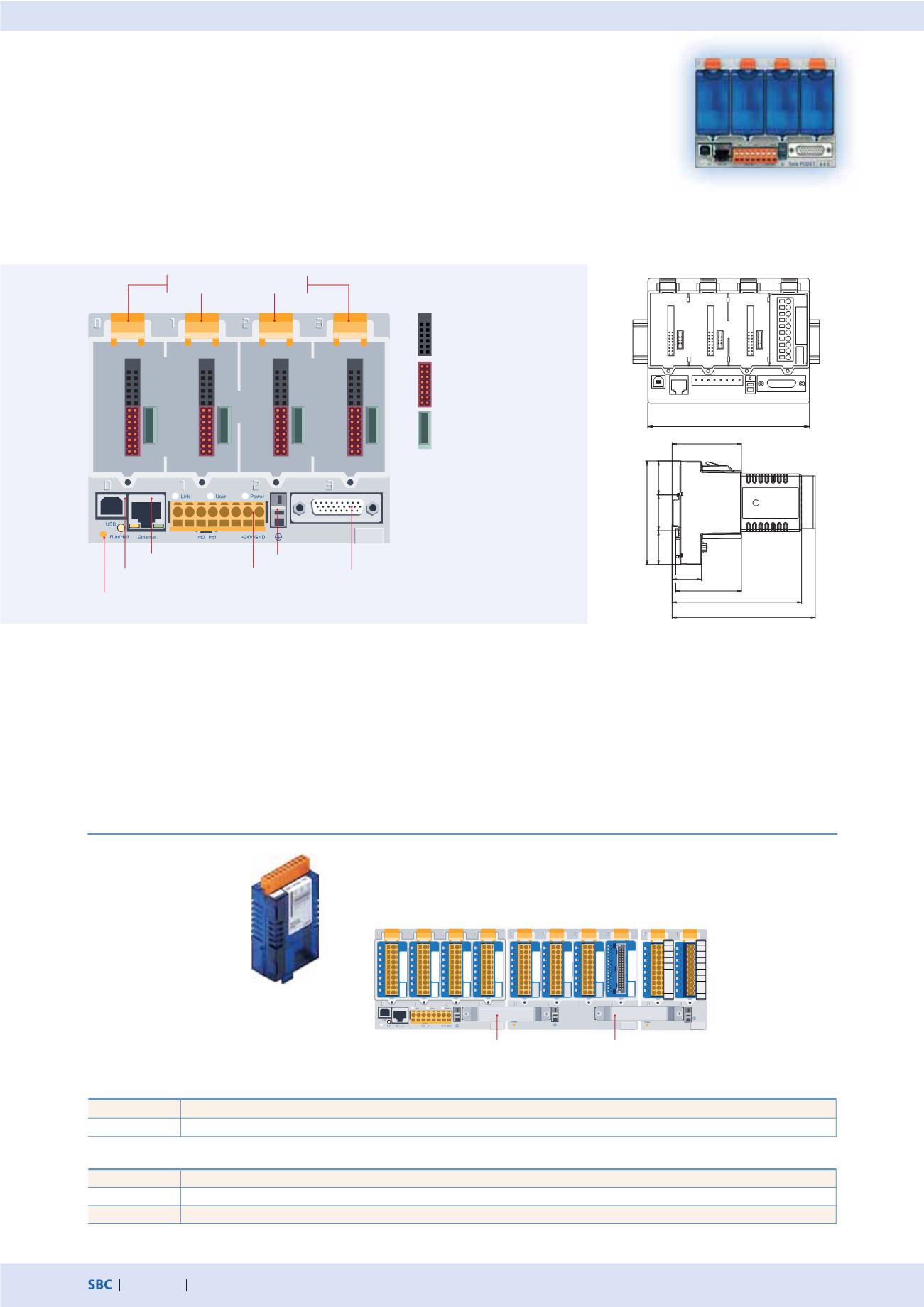

Saia PCD3.T66x remote I/O-stations
The Smart RIOs are more than just another Ethernet remote I/O-system. They can be pro-
grammed like a PLC and are therefore the ideal solution for distributed automation in line with
the lean philosophy. Smart RIOs can be equipped with PCD3 I/O-modules and extended to max.
256 I/Os per RIO station using PCD3 I/O-module holders.
Dimensions
Ordering information
Layout for Saia PCD3.T66x:
Smart RIO head station with 4 slots for I/O-modules
System properties
`
Can be used as a simple local I/O-station or
an intelligent programmable I/O-station.
`
Can be programmed with PG5. Important or
time-critical tasks can be processed directly
in the RIO.
`
The RIOs’ user programs are managed cen-
trally in the Smart RIO Manager (PCD) and
distributed to the RIOs automatically.
The standard I/O-modules
of the PCD3 series can be
used. For more information
and types, see section “PCD3
input/output modules”.
I/O-modules
Smart RIO
PCD3.T665
Smart-RIO, Ether-S-IO data exchange, programmable, 32 kByte program memory
PCD3.T666
Smart-RIO, Ether-S-IO data exchange, programmable, 128 kByte program memory, serial interfaces
I/O-module holder
PCD3.C100
Expansion module holder with 4 I/O-slots
PCD3.C110
Expansion module holder with 2 I/O-slots
PCD3.C200
Expansion module holder with 4 I/O-slots and terminals for 24 VDC power supply
Expansion connection
for I/O-module holder
24 VDC supply
RS-485 interface
Earth connection
USB
connection
Ethernet
4 slots for I/O-modules and
communication modules
RUN/STOP
LED display
I/O-bus
for simple modules
Fast serial bus (SPI)
for running up to 4 intelligent
modules (PCD3.T666 only)
Ground connection
for I/O-modules
I/O-expansions to max. 256 I/Os per RIO station
Extension plug PCD3.K010
PCD3.T66x
CPU incl.
4 I/O-slots
PCD3.C100
I/O-module holder
4 slots
PCD3.C110
I/O-module holder
2 slots
`
Data exchange with efficient Ether-S-IO
protocol. Simple configuration with the
RIO network configurator.
`
Cross-communication with other PCD
systems using Ether-S-Bus (FBoxes).
`
Intelligent communication modules
(M-Bus, DALI) are supported with
PCD3.T666.
`
Other communication protocols
(e.g. Modbus) via Ethernet TCP/IP
and, with PCD3.T666, via the on-
board RS-485 interface as well.
`
Integrated Automation Server
