Automation
stations
Consumption data
acquisition

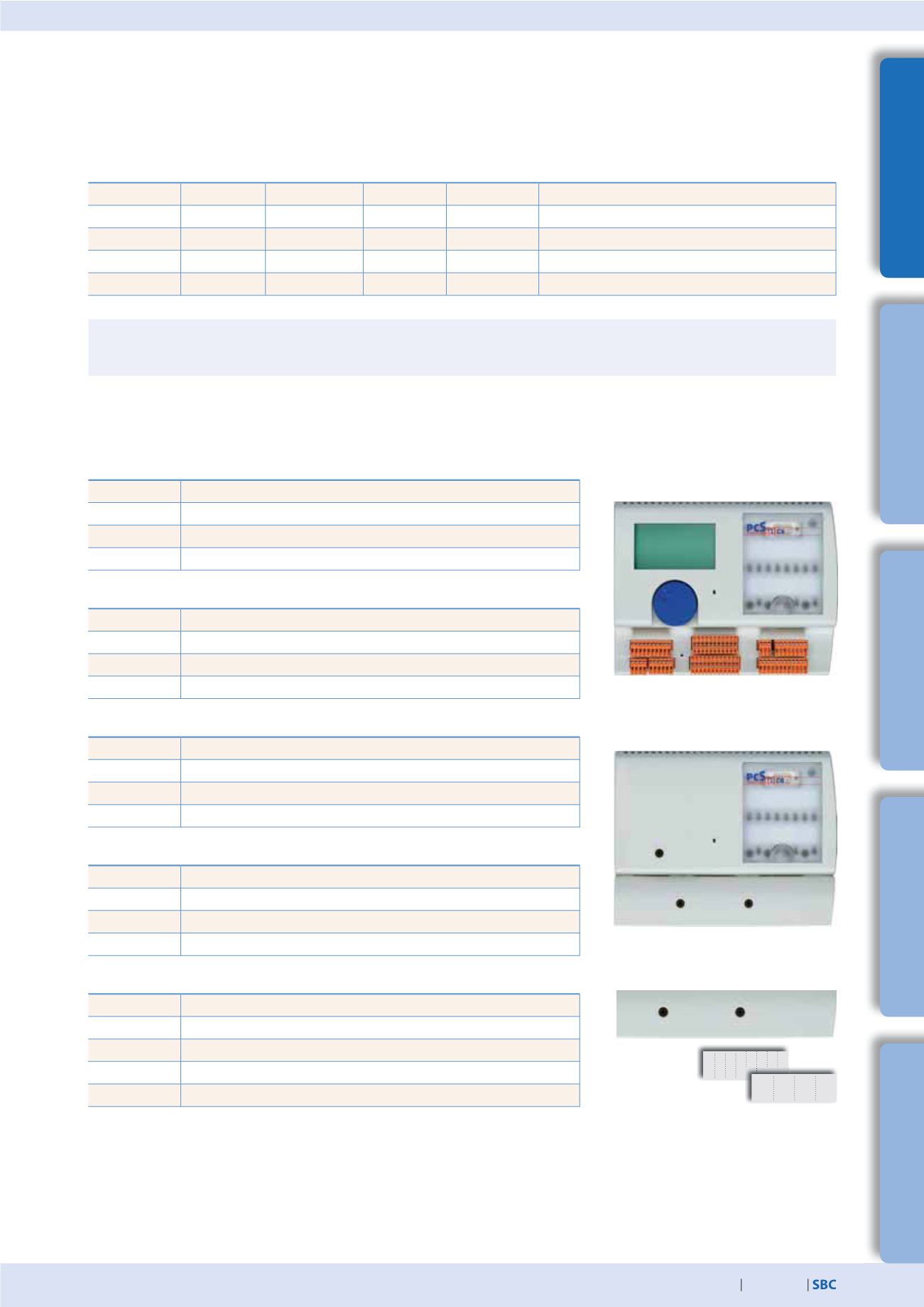

Automation stations –
PCS1
Data points Base unit
PCD7.F1xxS Modem Software Mechanical options
19
PCS1.C42x
0 = none
0 = none
0 = PG5
0 = no terminal cover
30
PCS1.C62x
A = ..F110S
1 = analog
1 = with terminal cover
44
PCS1.C8xx
B = ..F121S
2 = ISDN
2 = no terminal cover, wall mounting
D = ..F150S
3 = GSM
3 = with terminal cover, wall mounting
E = ..F180S
Base units with 19 data points
PCS1.C420
with graphic display and manual operation
PCS1.C421
with graphic display
PCS1.C422
with manual operation
PCS1.C423
no display, no manual operation
Base units with 30 data points
PCS1.C620
with graphic display and manual operation
PCS1.C621
with graphic display
PCS1.C622
with manual operation
PCS1.C623
no display, no manual operation
Base units with 44 data points
PCS1.C820
with graphic display and manual operation
PCS1.C821
with graphic display
PCS1.C822
with manual operation
PCS1.C823
no display, no manual operation
L
ON
base units with 44 data points
PCS1.C880
with graphic display and manual operation
PCS1.C881
with graphic display
PCS1.C882
with manual operation
PCS1.C883
no display, no manual operation
Accessories and consumables
440549410
Complete 8-part spring terminal set
411149270
Terminal cover incl. 2 screws
410948490
Set for wall mounting
431086810
Adhesive labels for PCS1 with manual operation
PCD8.K111
Programming cable for configuration/programming tools
The devices are supplied ready-assembled under the following order codes:
PCS1.C820A200
Base unit with graphic display and manual control, additional RS-422/RS-485 interface, ISDN modem,
can be freely programmed with PG5, without terminal cover.
Example
Orders must quote the full details.
