Saia PG5® Core + HVAC library. The visualization is created using the Web Editor.
With the FBoxes included in the Saia PG5® Core package, the majority of the program functions can already be implemented. In
addition, other libraries for special areas of use are available. The HVAC library, for example, has an efficient collection of complex
control modules (FBoxes) for the heating, ventilation and air conditioning systems area. These functions simplify the engineering of the
technical systems of buildings.
The HVAC library contains the following FBox groups
Analogue:
Function blocks for individual scaling of each individual analog input or output
Clocks:
Daily program, weekly program, annual program, clock with multiple switching periods
in one FBox, national holidays, monthly switch-offs or switching periods one after the other on
the same day, as well as FBoxes for reading and writing clock data
Controllers:
Two-point controller, three-point controller, boiler loading, P, PZ, PI, PID, P-PI, P-PID
controllers, incoming air mixers, controller sequences, mixer sequences
Electric:
FBoxes for lighting control, window blind control and step switches
Energy:
Energy meters, pulse counters, monthly statement, enthalpy, switching heating on/off,
load cut-out
Filters:
Filter, limitation, ramp limitation, average of measurement values, dead zone, dead
range with delay, zero zone, hysteresis
General:
FBoxes for numeric functions, binary functions, alarms, monitoring, motor, blocking
and frost protection, process states, switches and the conversion of data types
Init:
Initialization of the subfunctions for the HVAC library
Set-Points:
Heat curve, heating demand, setpoint device, setpoint ramp, setpoint adjustment
Test:
Simulation of values and states
1.1.2.1
HVAC modules
1.1.2

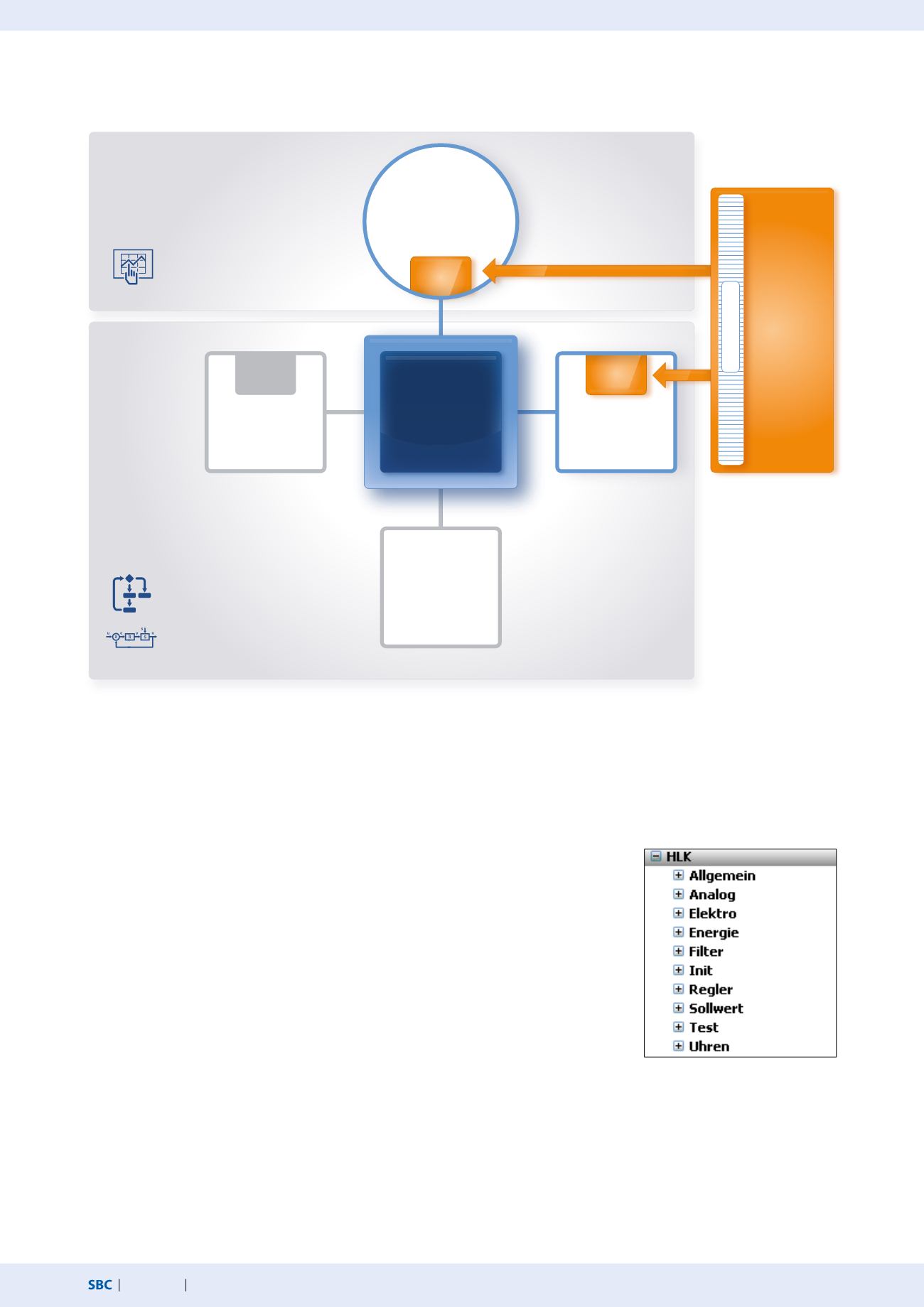

Saia PG5® HVAC modules and use
Saia PG5®
Web Editor
Saia PG5®
S-Edit
Saia PG5®
Fupla
Saia PG5®
Graftec
Libs
Libs
Libs
Saia PG5®
Project Manager
Saia PG5® Symbol Editor
Saia PG5® HVAC Lib
