Saia PG5® Core | Example application
With the Saia PG5® Core, all types of ICA tasks can be initiated on machines and systems. The graphical application components supplied
support the use of the Saia PCD® Automation Server (web + IT) and calculation/logic functions. The basic functions of the Saia PG5® Core
are shown below using a simple logic.

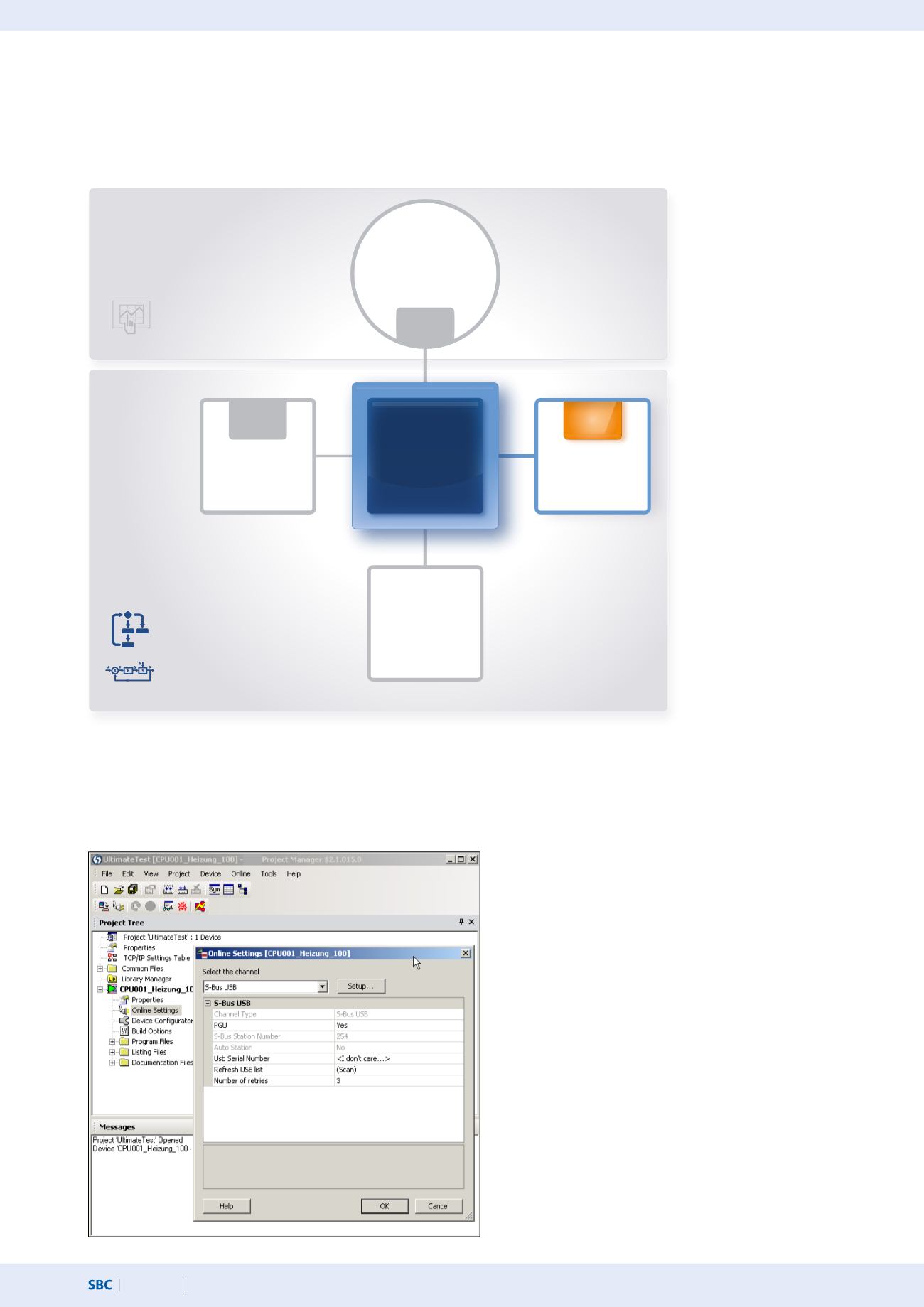

Online Settings: Selection of the communication channel
Online Settings
Select the channel: Select a transmission channel
between the PC and the Saia PCD® controller. Here
it is possible to choose between the following
channels:
PGU channel (RS-232)
S-Bus channel (serial)
S-Bus modem channel
SOCKET channel (TCP / IP)
S-Bus USB channel
Profi-S-Bus channel
Setup: Channel configuration
The Online Settings must be configured in order to create a communication (PC
PCD).
To start, a new project with a name and a description must be created in the Saia PG5® Project Manager. In this newly created project,
one of the first steps must be to configure the communication (PC
PCD).
Saia PG5®
Project Manager
