SBC Software

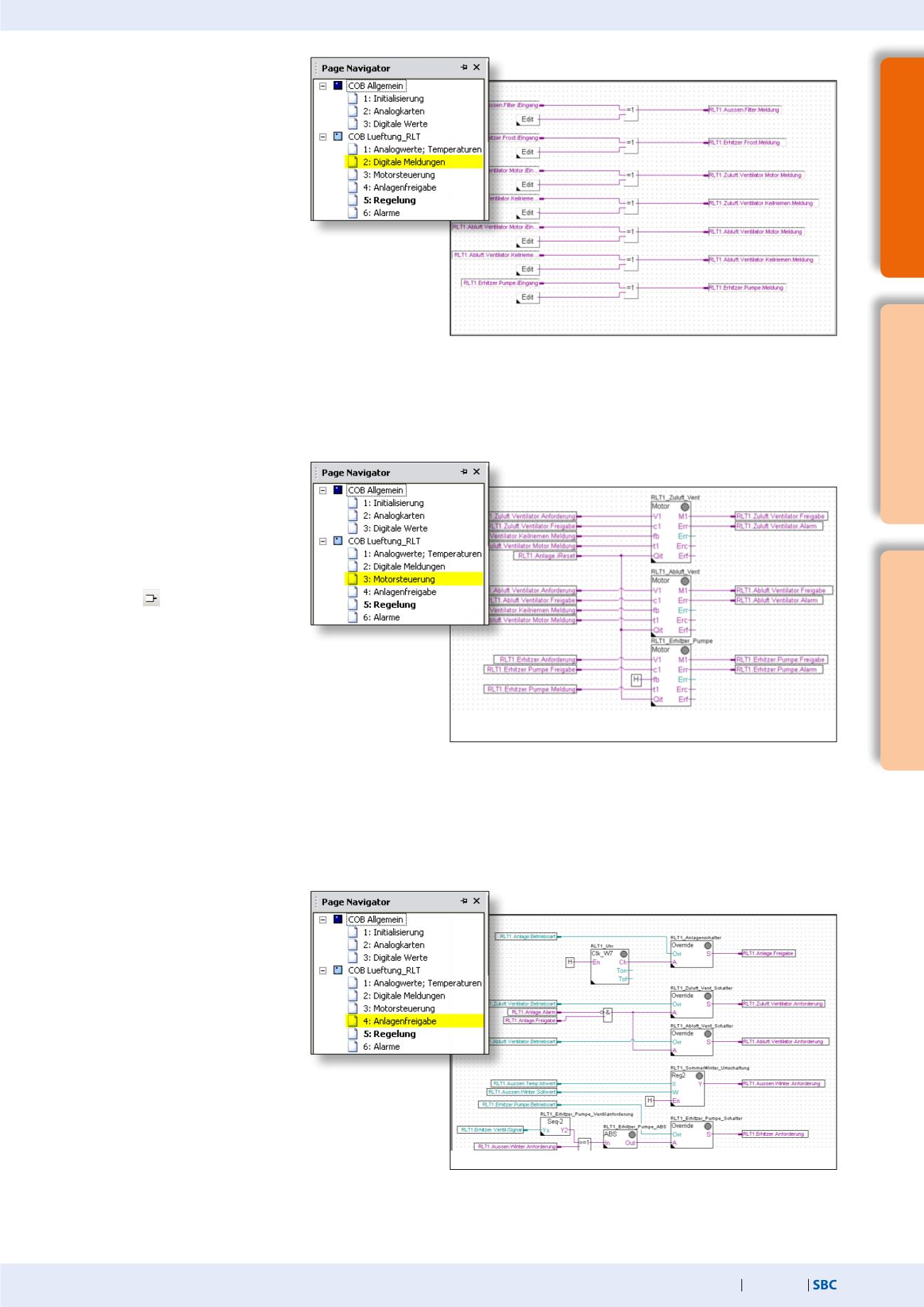

Digital messages
Motor controller
System release
Capturing reports
The seven reports for filter, frost
protection and motors are to be
captured.
Place the Digital Reference FBox from
the HVAC Test FBox family (Application
tab) on the page as shown, then the
Xor FBox from the Binary Arithmetic
FBox family (Standard tab) and move
them to two inputs.
Add symbols from Symbol Editor as before.
Motor controllers
Place the Motor 1 speed+Ack FBox
from the HVAC General FBox family
(Application tab) on the page three
times as shown.
Place the inputs/outputs on the FBox
using the
button from the
Connector menu as shown.
Display the Symbol Editor using F5.
Create a new sub-group. We can now create symbols in the
sub-group. Then move the symbols just created to Connector
on the Fupla page via drag-and-drop.
System release
The system should be connected via a
clock and the pump via the external
temperature.
Place the Clock 7 days FBox from the
HVAC Clocks FBox family (Application
tab) and the Override 1 Stage FBox
from the HVAC General FBox family on
the page four times as shown. Place
the Anti-blocking pump FBox from the HVAC General FBox
family and the Controller 2 points and sequence 2 points
FBoxes from the HVAC Controllers FBox family as shown on
the page.
Place the Or FBox and the And FBox from the Binary
Arithmetic FBox family on the page as shown. Set the
Connector as shown opposite on the page and connect the
elements.
