Adjusting the template pages
Most functions, settings and parameters can be set online. In the
event of a function change, this means that the program is not
normally recompiled and loaded into the controller. Thus, for
example, the setpoint adjuster can easily be disabled if required
the operator so desires or if the setpoint is to be used without any
summer compensation. This reduces the commissioning time.
The template pages can also be adjusted with further FBoxes if
required.
Fupla Selector
1.1.3.2
Example application of the DDC Suite
In the previous example it was made clear how quickly and easily the implementation of an HVAC system
can be performed with the correct engineering tool. The engineering time can, however, be further
reduced using the DDC Suite.
Engineering start
After the hardware settings (Device Configurator), a new program file (Fupla file) is created. The imple-
mentation of a system can now begin. Various templates are provided so that the creation of a new HVAC
system does not have to start again from the very beginning.

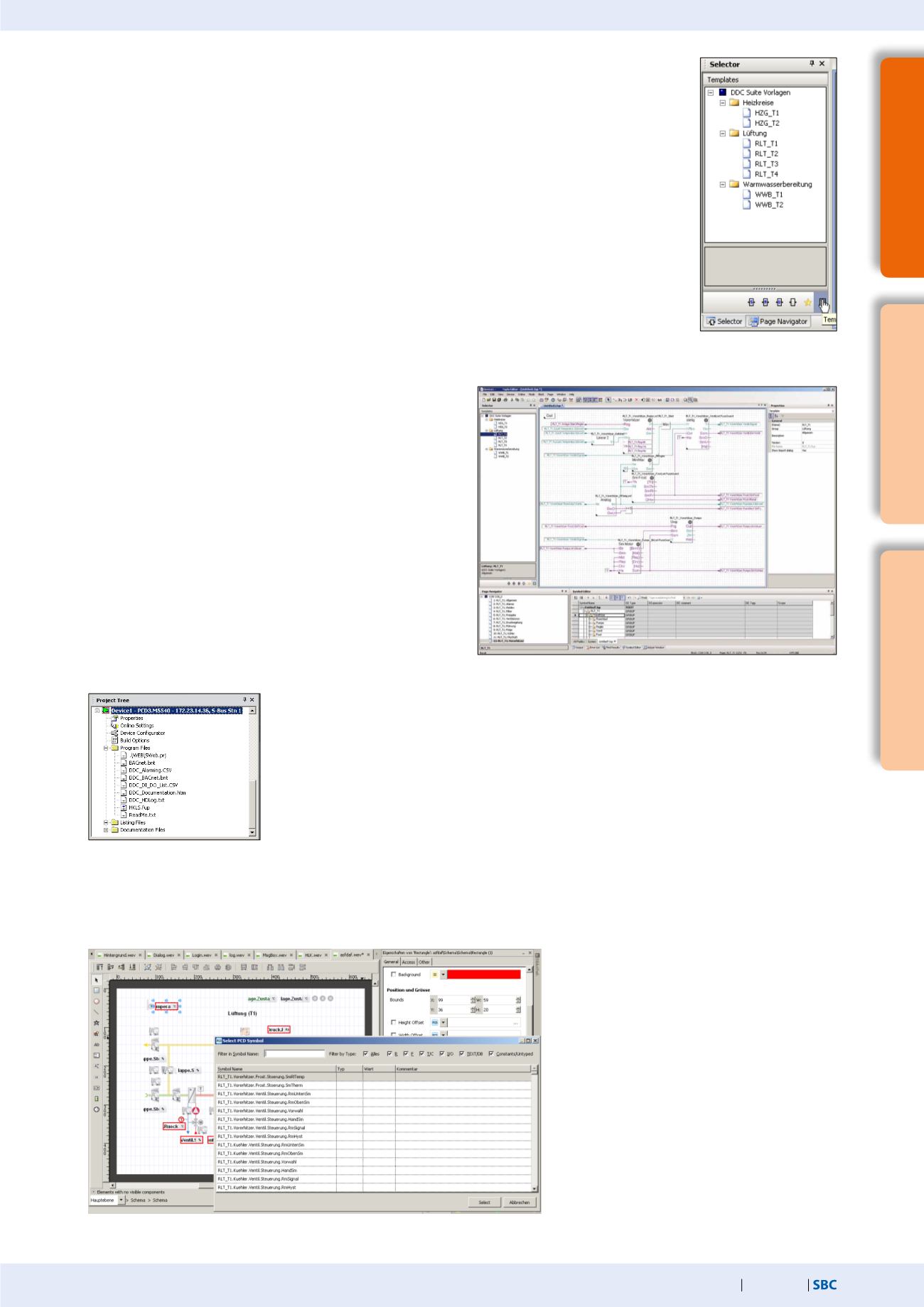

After clicking on the “Template” symbol in the Fupla Selector, the available templates are listed.
Selecting templates: In this example, the template AirCond_T1 is used.
The AirCond_T1 template contains
the FBoxes and links visible here.
Generating a program
As soon as the program is generated information is created automatically.
BACnet configuration has been created (BACnet.bnt)
Alarms with numbers and text are listed in a CSV file (DDC_Alarming.CSV)
Documentation as an HTML file with settings is created (DDC_Dokumentation.htm)
List of all parameterized historical data (DDC_HDLog.txt)
Visualization
In the Web Editor, the template must be linked to
the Fupla page with just a few clicks.
Unlike the standard HVAC FBoxes, the symbolic
parameter assignments in the FBoxes are not
defined as arrays: Each individual parameter can
and/or must be given its own symbolic assign-
ment if a connection to a display or a building
automation system is required. This assignment is
no longer needed for the DDC Suite library since
all parameters already contain symbolic assign-
ments. Thus the assignment to an image in the
Web Editor is very quick.
Project Tree with Program Files
Linking symbols
