2. Integrated alarming
The principle of the trend function also applies to alarm functions. By defining
the alarm number in the object parameter window, the alarms are listed in a
CSV file with numbers and text.
With Version 2.5 of the DDC Suite, the system identification key can be created
completely freely directly from Fupla. The aim is to create the system identifi-
cation key for the S-Web alarm texts and BACnet® completely freely according
to the specifications from the Fupla program. The system identification key can
have up to 12 levels. The general section (levels 1-10) is specified conveniently
from a central FBox.
This FBox can be positioned multiple times. Within the FBox it can be selected
what the key is to be used for. Thus, for example, various system identification
keys can be created for S-Web alarming, the BACnet® Object Names and the
BACnet® Description. If on certain Fupla pages, for example for various
systems, other levels are used, a further FBox is simply placed on the page.
These FBoxes can also be used as often as desired and the changes to the
system identification key are valid for the next FBox of this type. Thus a
different name key can be used for each system.
3. Automatic generation of the BACnet® configuration
For BACnet® projects, the BACnet® object list is created automatically, which
saves a great deal of error-prone manual work. The automatic generation of
the BACnet® objects is the main reason why so many customers use the
DDC Suite. In building automation, it is normal for all systems to map relevant
hardware and software data points to BACnet® objects. This may mean that
multiple data points are used in a BACnet® object. Thus, for example, a binary
output could receive exactly the same return message and be monitored via
intrinsic alarming. The control templates for the DDC Suite already contain all
BACnet® definitions which can be activated by clicking, thus BACnet®
originates at the click of a button.
4. Automatic documentation
The engineering documentation can be created quickly at the click of a
button. The documentation on all DDC Suite FBoxes is created as an HTML file.
This file contains a general description with all parameters and settings. The
documentation can be saved in the PCD and, for example, be used for viewing
via the web. It is, however, also possible to post-edit the documentation using
a text processing tool and to add images from the SCADA/web application.

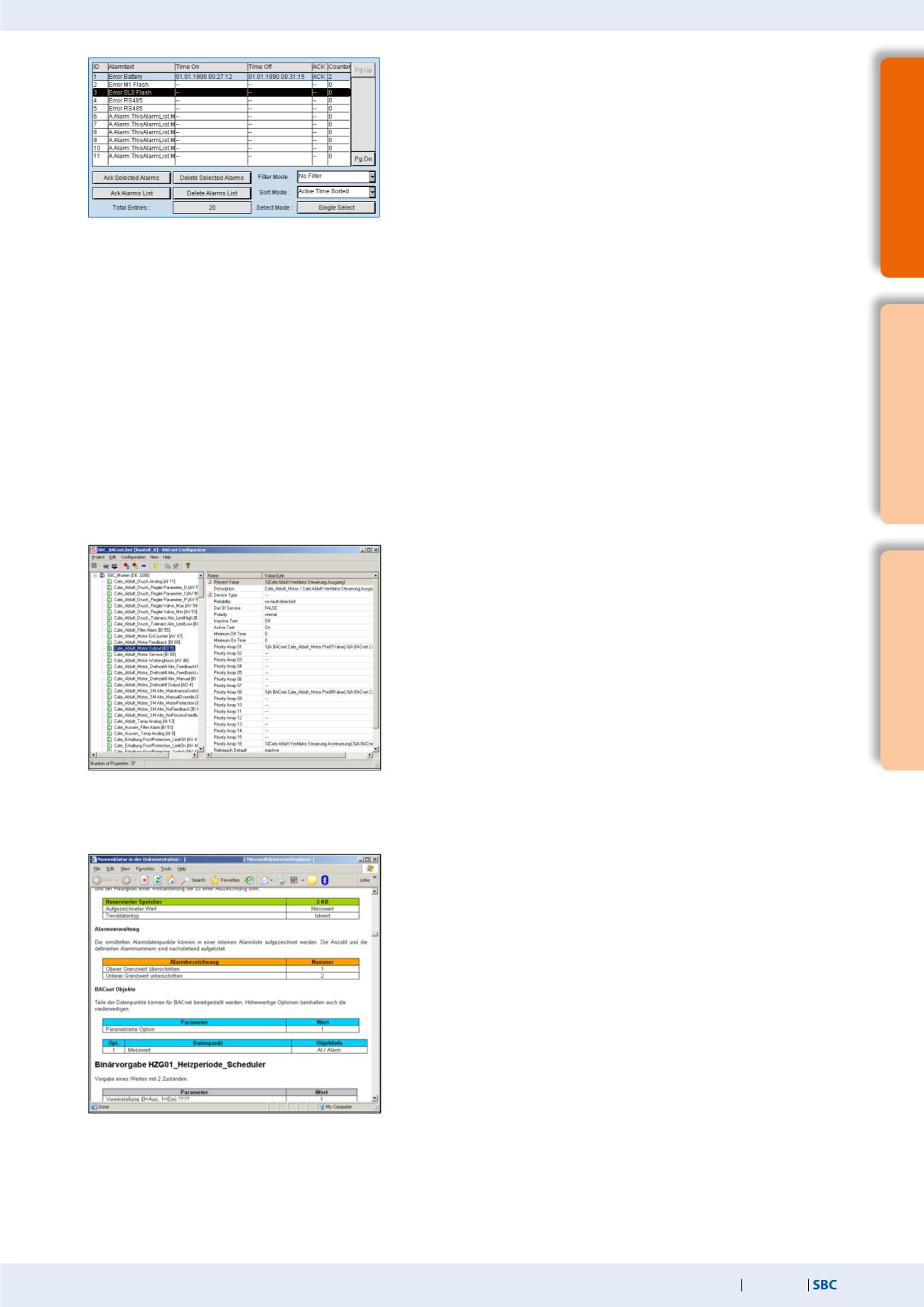

Alarming
