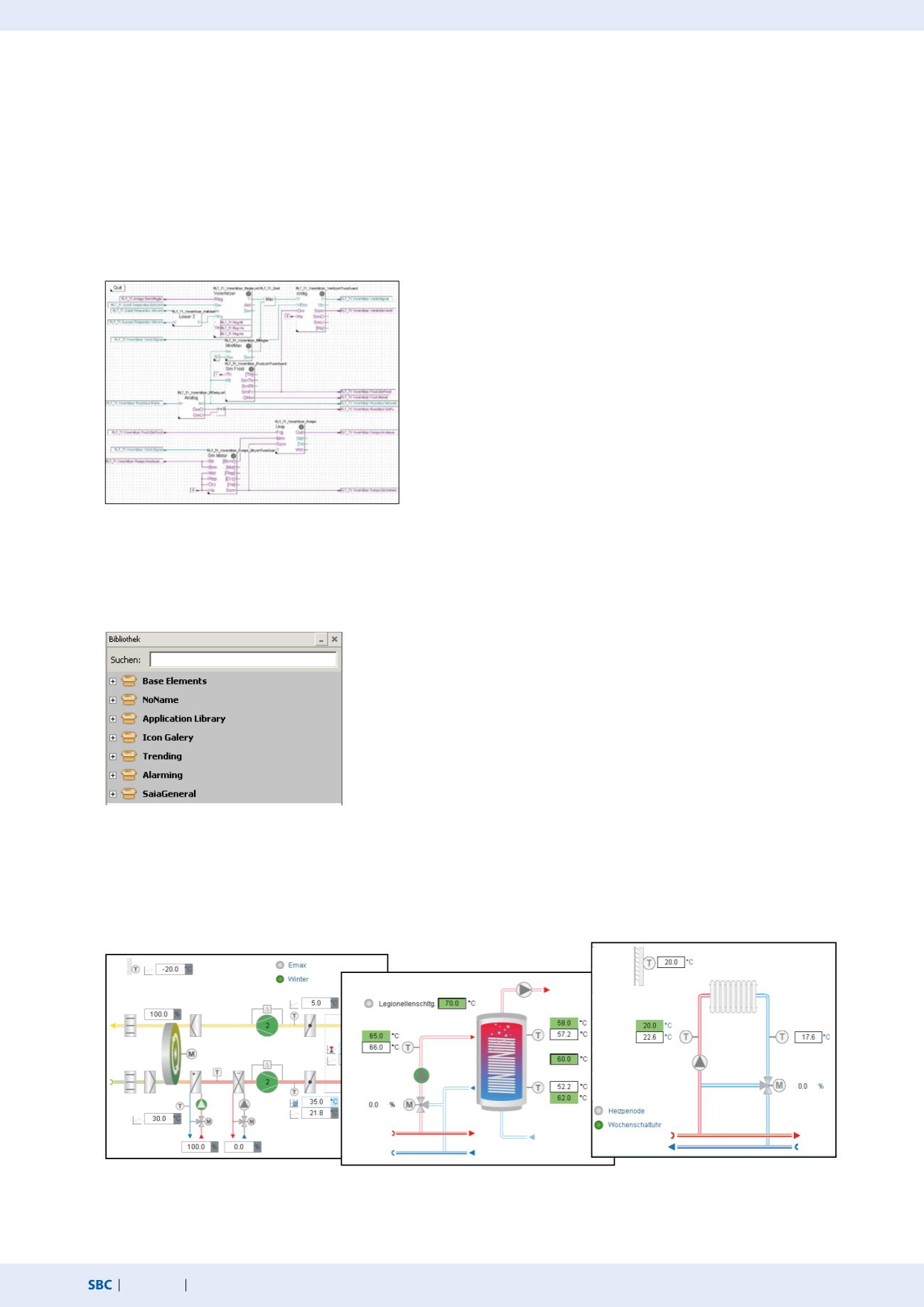

5. Templates for Fupla, Web Editor and Visi.Plus
The Saia PG5® DDC Suite largely comprises a highly integrated FBox library which is supplemented by a growing number of
ready-made, tested and ready-to-use Fupla pages which fully map the typical parts of the system in terms of function. The
Saia PG5® DDC Suite also provides the operating and visualization function for each FBox. Operation and visualization using the
web browser or Visi.Plus is already integrated and ready for use.
Fupla templates
In order to reduce the system programming time, entire applications (heating circuit, water heating, ventilation systems, etc.), includ-
ing the calendar and control tasks, are fully integrated for free selection. Some suggestions for control settings and for system
control can thus be freely added, changed or integrated.
Visi.Plus templates
When importing data from Fupla to Visi.Plus, FBoxes are identified and then handled by the Visi.Plus database as FBoxes. Not only are
the data points imported, but the alarms and historical trends are automatically created upon import. In addition, the Visi.Plus user is
provided with the same template objects as in Web Editor.
Web Editor templates
The DDC Suite is also accompanied by template objects for S-Web applications. Graphical objects and control objects are available
for each FBox. There are also S-Web system templates for predefined systems.
All official macros can be found in the
“Library”Web Editor window.
Template: Ventilation system
System schematic
