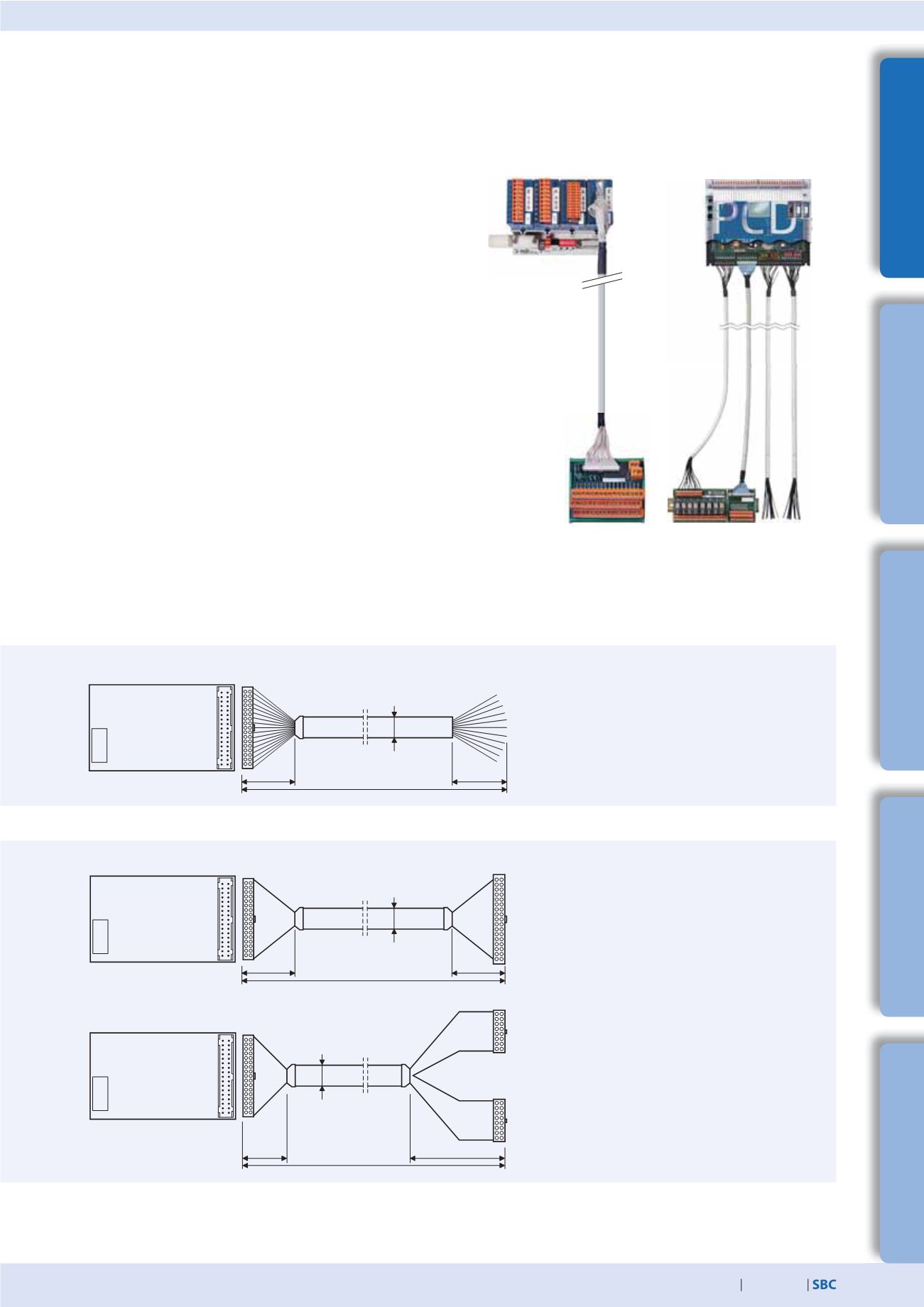

I/O-module integration into switching cabinet
The way to achieve convenient and fast integration of the
I/O-modules into the switching cabinet is to use the adapters
by SBC. I/O-modules with ribbon connections, in particular, can
be installed quickly and easily in the switching cabinet.
The modules with terminals can also be connected to the
adapters using traditional stranded wires. The adapters either
are available for galvanic separation of the outputs with relays
or as simple I/O-adapters with voltage distribution.
1.7
Accessories for Saia PCD® programmable controllers
PCD2.K241/K242 cable
Sheathed, round ribbon cable with 34 strands of 0.09 mm²,
34-pole ribbon connector at the PCD end
Process end divided into 2 branches, each 300 mm in length,
leading to 16-pole ribbon connectors
Cable length PCD2.K241 = 1.0 m
PCD2.K242 = 2.0 m
PCD2.K221/K223 cable
Sheathed, round cable with 32 strands of 0.25 mm² (AWG 24),
34-pole ribbon connector at the PCD end
Free, unsheathed 100 m ends at the process end
Stranded wires, color-coded
Cable length PCD2.K221 = 1.5 m
PCD2.K223 = 3.0 m
Pluggable ribbon cables with connector at the Saia PCD® end
Cable for the digital modules with 16 inputs/outputs
Terminal adapter for digital inputs/outputs
Length
Diameter = 11mm
Length
Diameter = 11mm
Length
Diameter = 11mm
PCD2.K231/K232 cable
Sheathed, round ribbon cable with 34 strands of 0.09 mm²,
34-pole ribbon connector at both ends
Cable length PCD2.K231 = 1.0 m
PCD2.K232 = 2.0 m
System characteristics
`
Available as I/O-terminal adapter or relay interface
`
Relay interface with manual mode
`
Compatible with Saia PCD2 and PCD3 systems
`
For connection with system cable or stranded wire
`
For DIN rail mounting
