5.1
SBC Power: Power supplies with 24 VDC output
Thanks to their high level of resistance to interference, the power supplies from SBC provide an ideal power supply for automa-
tion solutions. As they can be heavily overloaded for a short period, high-output loads can also be operated with them. The full
extent of their flexibility can be seen in the option of connecting multiple devices in parallel in order to increase the maximum
output current or connecting them in series in order to achieve different voltage levels.
Power unit overview
SBC Power Flex single phase 110/230 VAC
`
Q.PS-AD2-2402F (up to 3 A)
`
Q.PS-AD2-2405F (up to 7.5 A)
`
Q.PS-AD2-2410F (up to 14 A)
SBC Power Flex single phase or double phase 230/400 VAC
`
Q.PS-AD3-2405F (up to 7.5 A)
Uninterruptible power supply single phase 110/230 VAC with
intelligent battery charger
`
Q.PS-ADB-2405-1 (5 A)
SBC CC single phase 28 VAC/40 VDC
`
Q.PS-AD1-2403 (3 A)
`
Q.PS-AD1-2405 (5 A)
System properties in general
`
Short-circuit protection
`
Overload protection
`
IP 20 housing for mounting on DIN rail
Properties of Flex types 24xxF
`
Power boost: +40% extra output current up to 60 °C
for at least 3 minutes
`
With AD2/3-2405F and 2410F, different short-circuit modes
available
`
‘Power good’ relay for status display
`
With 2410F, simple parallel connection (via jumper) to
increase max. output current
`
In serial mode, output voltage up to 150 VDC possible
`
Extremely small size
`
AD3-2405F can be used as either a single phase or double
phase power unit
Properties of the
uninterruptible power supply
`
3-stage automatic charging curve to compensate the self
discharge of the battery
`
Automatic real-time diagnosis of the battery status and test
function to find out the lifetime of the battery
`
Any battery fault can be easily identified via blinking codes of
the diagnostics LED
`
Option of status and battery fault reporting in the control
system via 2 potential-free contacts
`
Adjustable charging current 1…5 A
Norms and certifications
`
According to
- EMC 2004/108/EEC
- Low voltage 2006/95/EEC
- cULus Listed 508 Industrial Control Equipment
Electrical safety:
According to IEC/EN60950 (VDE 0805) and EN50178 (VDE0160)
for assembling devices. The unit must be installed according to
IEC/EN56090.
EMC Generic:
Immunity according to EN61000-6-2
Noise emission according to EN61000-6-4

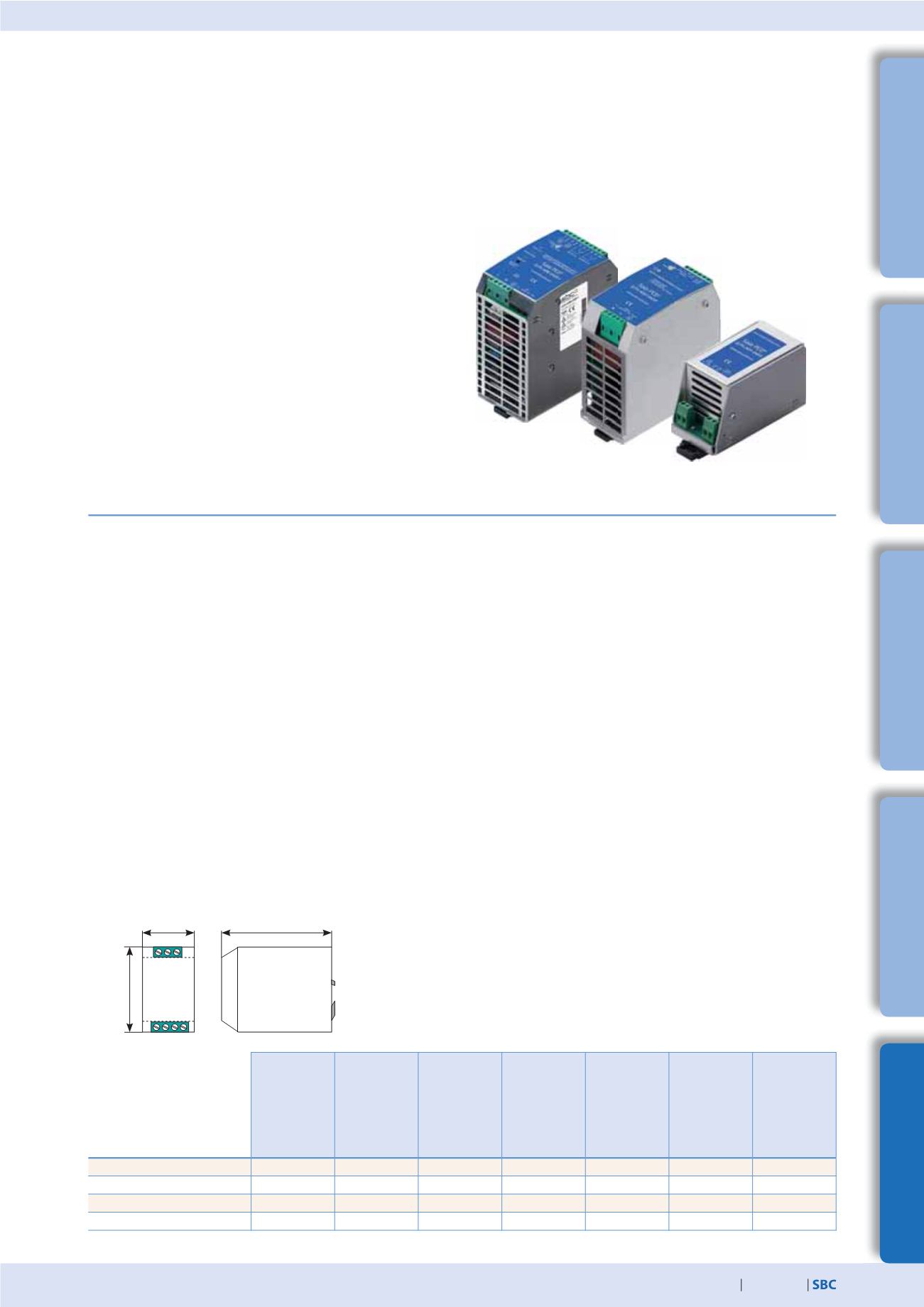

From left to right: Q.PS-ADB, Q.PS-AD2, Q.PS-AD1
Dimensions
Q.PS-AD2-2402F
Q.PS-AD2-2405F
Q.PS-AD2-2410F
Q.PS-AD3-2405F
Q.PS-ADB-2405-1
Q.PS-AD1-2403
Q.PS-AD1-2405
Width (W)
50 mm 55 mm 72 mm 55 mm 65 mm 50 mm 50 mm
Height (H)
120 mm 110 mm 115 mm 110 mm 115 mm 95 mm 95 mm
Depth (D)
50 mm 105 mm 135 mm 105 mm 135 mm 61 mm 61 mm
Weight
0.3 kg
0.6 kg
0.6 kg
0.6 kg
0.6 kg
0.2 kg
0.2 kg
W
D
H
