Saia PCD® E-Monitor
Summary of functions

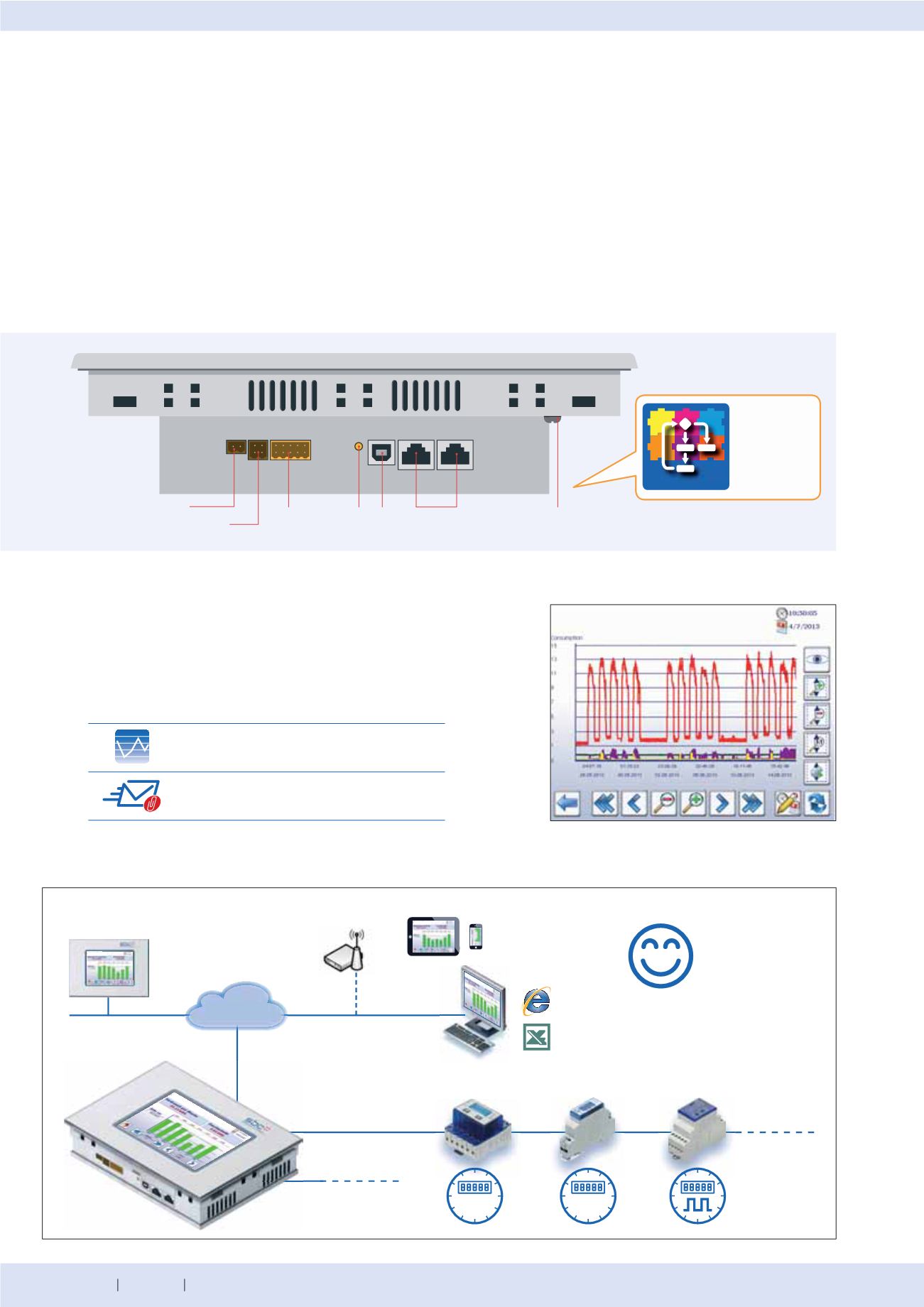

The E-Monitor is an SBC functions HMI, which can be used immediately upon delivery, without additional programming. It combines
data capture, visualisation and logging in one compact device. Energy meters and pulse counters connected via the S-Bus interface are
automatically detected and read. Historical data and the web visualisation can be accessed from anywhere via the integrated Automa-
tion Server using FTP and HTTP. This is also possible with mobile devices using SBC apps.
In addition to the basic functions described in Section 4.5, simple control functions are already realised on the E-Monitor. These include
sending data e-mails and the parallel recording of several load profiles.
The pre-installed S-Monitoring application can be adjusted, extended or changed completely as required using PG5 andWeb Editor.
With the optional communication interfaces, further protocols and data (e.g. from an M-Bus meter) can be integrated.
Supply voltage
Ethernet
(2 port switch)
Ground
connection
RS-485
PCD7.F1xxS Reset
switch
USB
S-Monitoring
application
loaded
Load profile measurement
of 8 consumption values
Sending of data e-mail
to up to 5 e-mail addresses
Advanced functions
In addition to the basic functions of the S-Monitoring application (4.5),
the E-Monitor Web Panel includes the following functions, which are pro-
grammed in Saia PG5®:
Load profile measurement
Saia PG5®
Freely programmable
and expandable
Optional interface
(programming required)
Internet
Intranet
