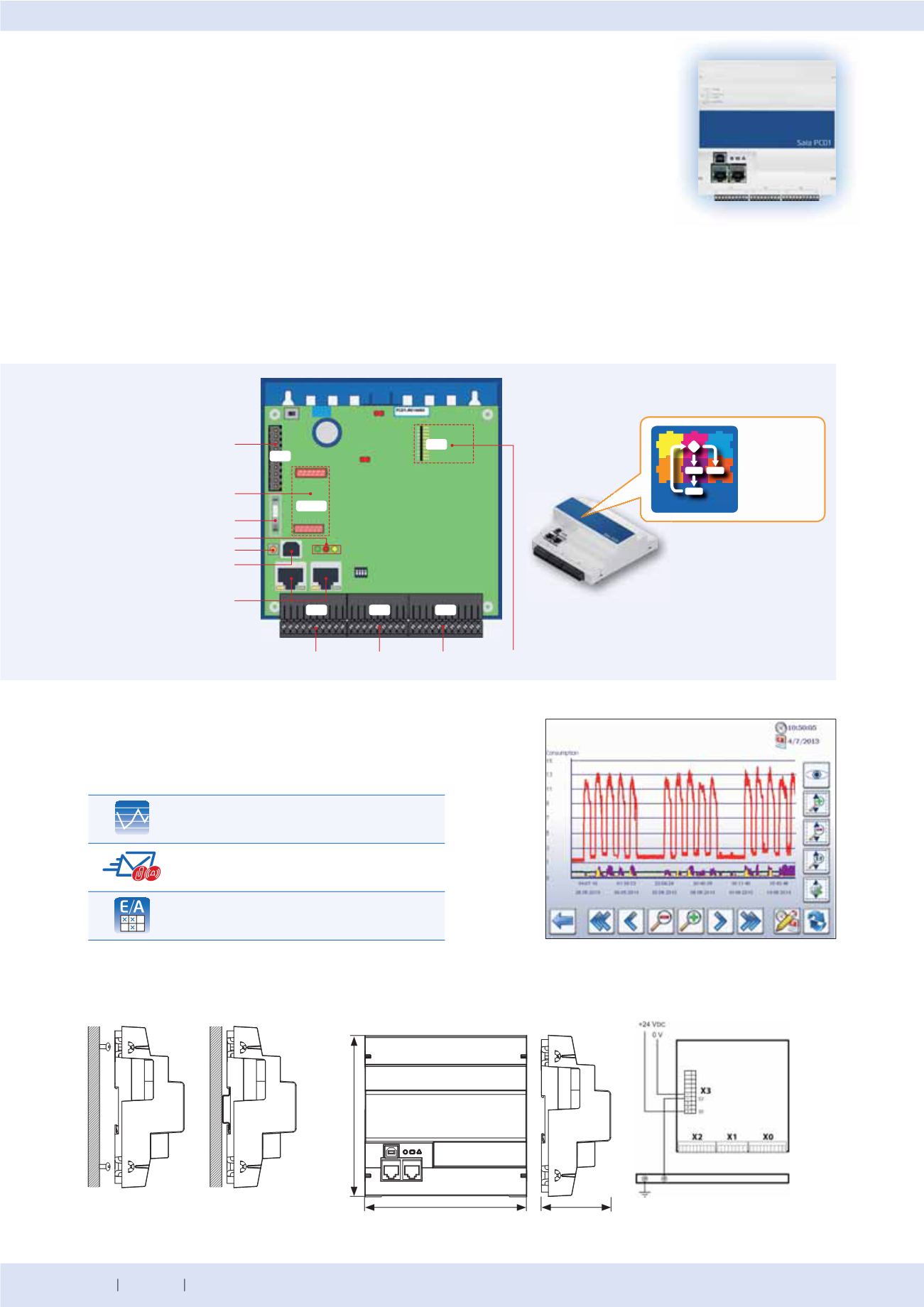

S-Monitoring
The E-Controller is an SBC functions PCD, which can be used immediately upon delivery, without ad-
ditional programming. It combines data capture, decentralized visualisation and logging in one compact
device. Energy meters and pulse counters connected via the S-Bus interface are automatically detected
and read. Historical data and the web visualisation can be accessed from anywhere via the integrated
Automation Server using FTP and HTTP. This is also possible with mobile devices using SBC apps.
In addition to the basic functions described in Section 4.5, simple control functions are already realised on the E-Controller.
These include sending alarm e-mails and the parameterization of outputs according to the meter readings.
The pre-installed S-Monitoring application can be adjusted, extended or changed completely as required using PG5 andWeb Editor.
With the optional communication interfaces, further protocols and data (e.g. from an M-Bus meter) can therefore be integrated.
As a result of its design, this controller is suitable for installation in the distribution board next to the energy meters.
Device installation
Power supply and connection plan
Further information is provided in Section 1.2.1
SaiaPCD3 power supply and connection plan,
and in Manual 26-875.
Power supply
24 VDC watchdog relay
RS-485 interface
Terminals for integral
inputs and outputs
Terminals for optional
connection (slot A)
Ethernet connection
(2 port switch)
USB port
Operating LEDs
Slot for
communication
interfaces
Battery
RUN/STOP button
Slot for
memory modules
Supply
Earthingbar
1.5mm
2
/max.25cm
4.7
Saia PCD® E-Controller
Can be used immediately upon delivery, with local IOs
S-Monitoring
application
loaded
Load profile measurement of 8 consumption
values
Sending of alarm and data e-mails
to up to 5 e-mail addresses
Parameterization of outputs via min. and max.
values
Advanced functions
In addition to the basic functions of the web application (4.5),
the E-Controller includes the following functions,
which are programmed with Saia PG5®:
Load profile measurement
Mounting
Dimensions
on a level surface
on top-hat rail 35 mm
(pursuant to DIN EN 60715
TH35)
