Cabinet components
System properties
`
Top-hat rail mounting and 24 VDC supply for trouble-free use
in infrastructure automation and in rugged industrial environ-
ments
`
Fast network diagnosis, due to integral LEDs at TCP ports
`
Entry level industrial Ethernet rail switch, with store-and-
forward switching mode
`
Allows construction of Ethernet networks according to
IEEE 802.3 with copper technology
`
The device has five or eight 10/100 Mbit/s twisted pair ports
(RJ 45 connections)
`
Up to five or eight end devices or additional TCP segments can
be connected to the TCP ports via twisted pair
`
Extremely light, compact construction with IP30 protection
level
`
Simple commissioning with
‘plug-and-work’
via auto-negotia-
tion, auto-polarity and auto-crossing
Technical data Q.NET-5TX and Q.NET-8TX
Operation
Port type and number
Network line lengths
Network cascade depth
Operating voltage
Current draw at 24 VDC
Displays/diagnostics
Ethernet 10/100 MBit/s, 5× RJ45 (Q.NET-5TX)
or 8× RJ45 (Q.NET-8TX)
Twisted pair (TP), 0…100 m
Linear/star structure – any depth
9.6 VDC …32.0 VDC
max. 100 mA
1× green LED; power
5× / 8× yellow LED; data rate
5× / 8× green LED; data, link status
Environmental conditions
Operating temperature
Storage temperature
Humidity
0°C to +60°C
–40°C to +70°C
max. 95%, non-condensing
Standards/approvals
EMC protection:
EMC protection:
Security for Industrial Control
Equipment
Mechanical stability
Protection type
EN61000-4
EN55022 Class A, FCC CFR47 Part 15 Class A
cUL508, CSA22.2 No. 142, E175531
IEC60068-2 (shock, vibration)
Ordering information
Q.NET-5TX
Q.NET-8TX
5-port rail switch, terminal block, patch cable
and operating instructions
8-port rail switch, terminal block, patch cable
and operating instructions

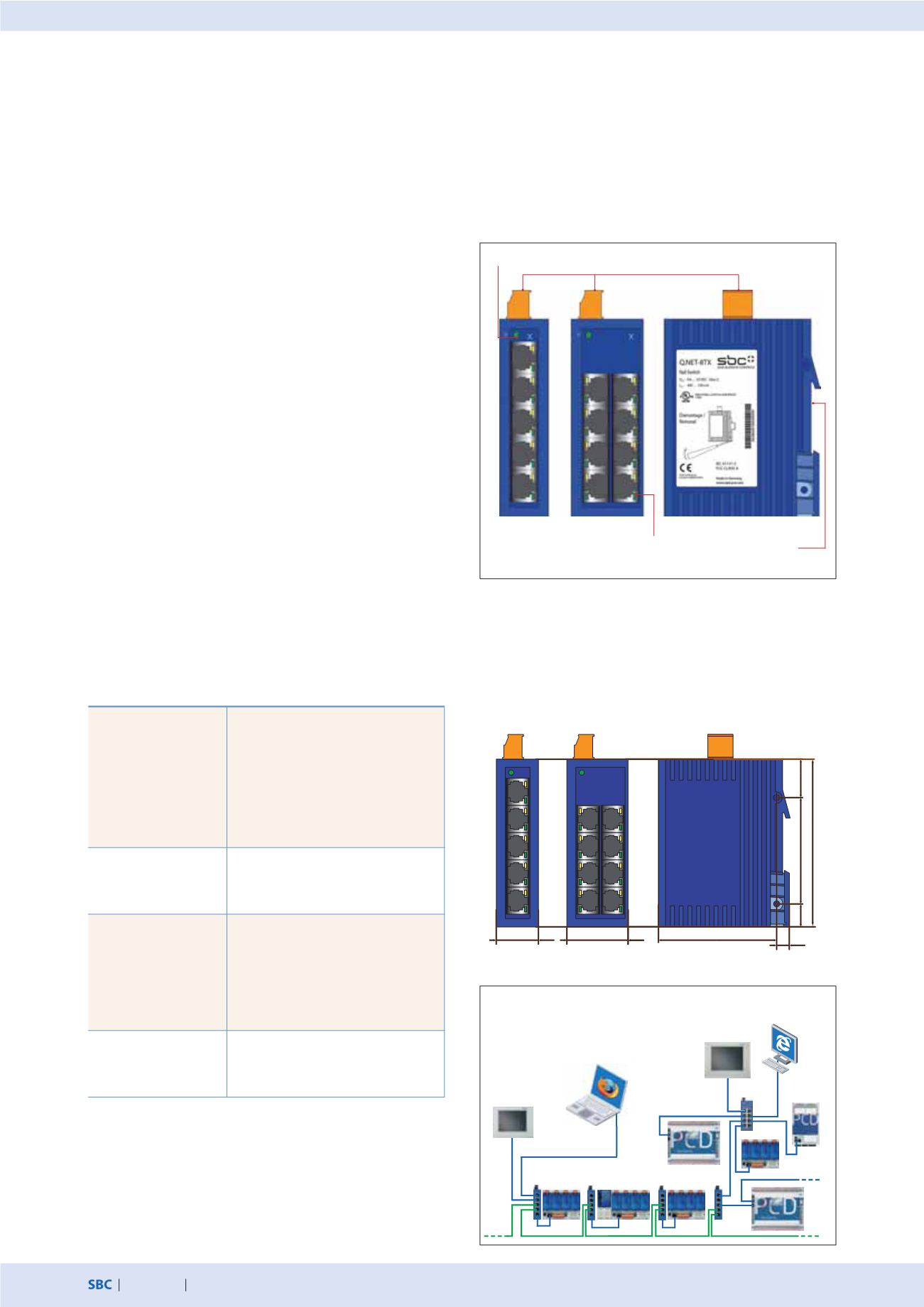

Dimensions
Connection options
Linear structure
Star structure
Status LED for power
Plug-in terminal block, 3-pole
Q.NET-5TX Q.NET-8TX
Status LEDs
Ethernet port
Top-hat rail
mounting
5.2
SBC industrial Ethernet switch Q.NET-xTX
This compact, unmanaged switch operates according to the plug-and-work principle. The mounted switch is equal in height to
Saia PCD3 systems, which saves space when it is snapped onto the top-hat rail. The PCD controller is connected with the patch cable
provided. With its robust construction, this switch is suitable for use in rugged industrial environments and in infrastructure automation.
