129
saia-pcd.com
50 6
RS-232
M-Bus
RS-485
M-Bus
M-Bus
S-Monitoring
1
5
2
3
4
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Cabinet
components
Consumption data
acquisition
Dimensions (W × H × D)
and cut-out (W × H), [mm]
PCD7.D457VT5E0
Front plate
W × H, 202 × 156
Display
5.7" W × H, 117 × 88
Cut-out
W × H, 189 × 142
General data
Operating system
Saia PCD® COSinus
with Micro-Browser expansions
Protection class
IP65
User program,
ROM/DB/Text
1 MB
RAM/DB/Text
1 MB
Media
16,384 flags / 16,384 registers
Backup for users
The user program is saved on the integ-
rated microSD card
File system for users
128 MB onboard
Program cycle time
10 cycles/sec. maximum
Field level protocols
Serial-SBC S-Bus, Ether-SBC S-Bus,
Ether-S-IO, Modbus RTU or TCP
Internet services
SBC Micro-Browser, Automation Server
Interfaces
Ethernet
2× RJ-45 (Switch)
USB
1× (1.1/2.0)
Serial interfaces
RS-485
1 slot for PCD7.F1xxS
Temperature range
When in operation: 0…50°C standard
When stored:
–25…70°C
Humidity
When in operation: 10…80%,
When stored:
10…98%,
non-condensing
Processor
Coldfire CF5373L, 240 MHz
Battery
Lithium Renata CR 2032
(lifetime of 1–3 years)
Real-time clock (RTC)
with battery buffer
Display
Size
5.7”TFT
Resolution / pixels
VGA 640×480
Touchscreen
Resistive touchscreen
Contrast adjustment
Yes
Background lighting
LED
Power supply
24 VDC ±20%
Current draw
max. 500 mA
Protection class (front)
IP 65
1)
Programming required
E-Monitor
wall mounting set 5.7"
Q.OWSD457VT5E0
The package includes:
`
Wall mounting kit
with 5.7" PCD7.D457-OWS1
`
E-Monitor 5.7"
PCD7.D457VT5E0
`
Mains adapter 24 VDC
Q.PS-AD2-2402F
`
Memory extension
PCD7.R610 and PCD7.R-MSD1024
`
Cabling
Memory extension
Enables logs at 5–60 minute intervals and presentation of the
daily figures in a bar chart for all meters.
PCD7.R610
Holder module for microSD card
PCD7.R-MSD1024
MicroSD memory card 1 GB,
PCD formatted

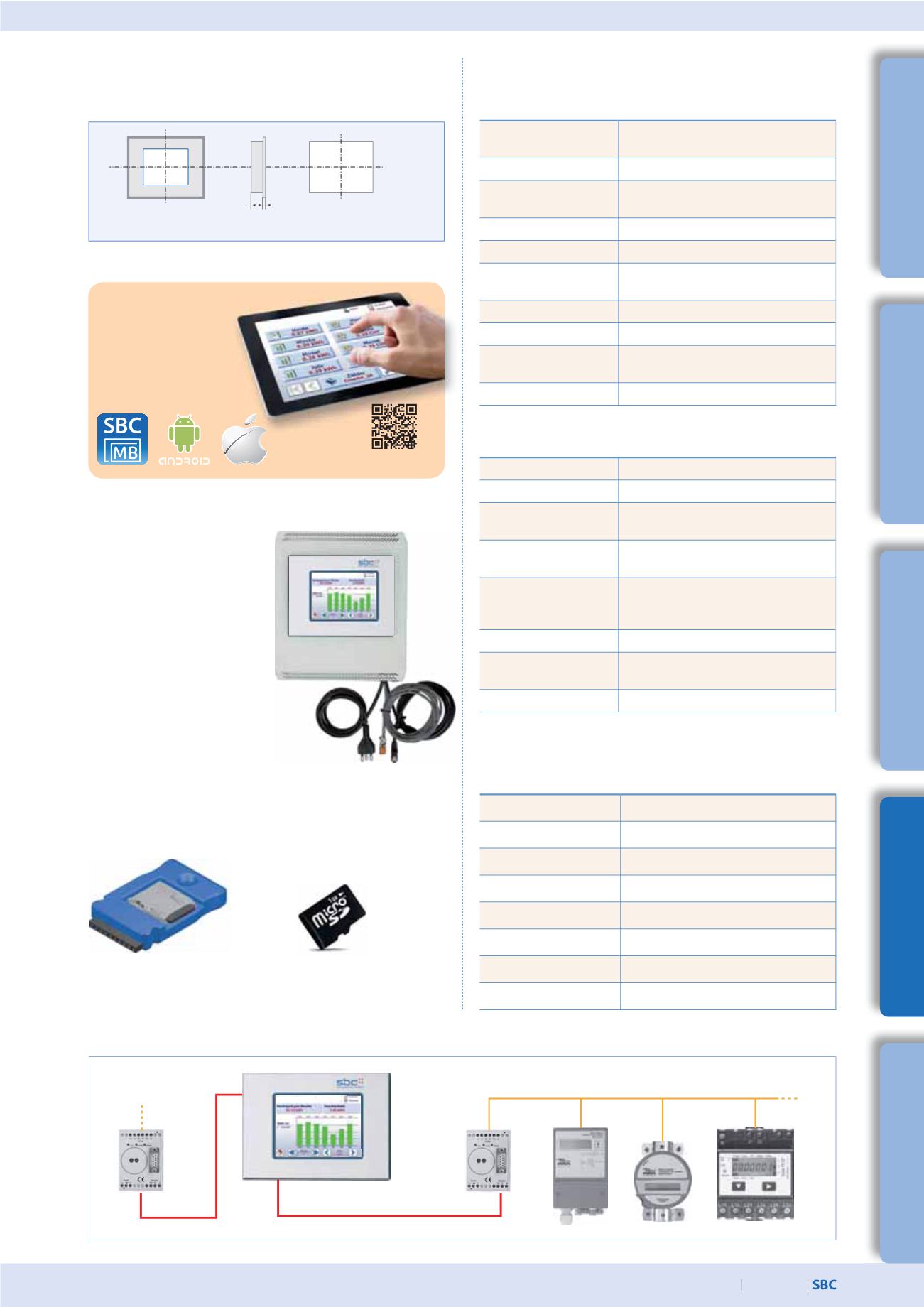

Overview of PCD7.D457VT5E0
SBC MB App
Operation and
monitoring on
iPhone, iPad and
Android
Web code scen13063
Connection example M-Bus with external interface
1)
