Dedicated room controller

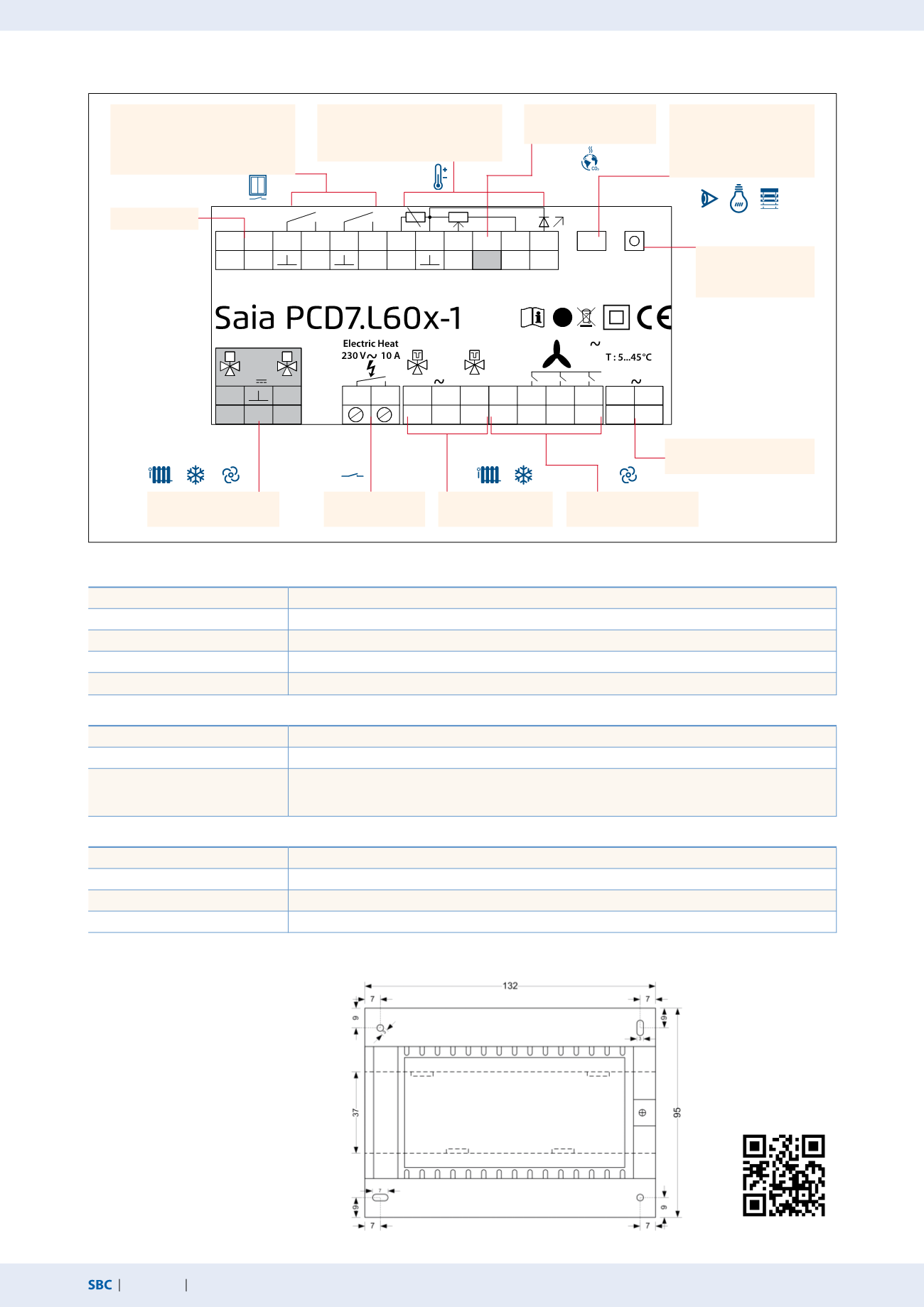

Terminal configuration (example of a PCD7.L601-1)
Technical data
TRIAC output specification
10 mA…800 mA, maximum total current of both TRIAC
Current consumption
Without actuator approx. 100 mA / requires an external electrical series fuse
Protection
The module has to be installed in a locked box with aerations – minimum size: 240 × 145 × 100mm
Dimensions W x H x D
132 × 95 × 45 mm
Temperature range
5…45 °C, 80% r. H.
Communication with S-Bus
Interface
RS-485, max. cable length of bus cable depends on baud rate, under ideal conditions up to max. 1200 m
Transmission rate
4800, 9600, 19200, 38400, 115200 bit/s with automatic detection on restart
Log
SBC S-Bus data mode (slave)
Bus termination resistors have to be installed by the customer - in case of the L60x-1 the are integrated
and can be activated by software.
Communication with L
on
W
orks
®
Interface
FTT 10a
Transmission rate
78 kBit/s
Topology
Free topology max. 500 m, bus topology max. 2700 m
Number of L
on
nodes
max. 64 per segment, over 32000 in a domain / as per L
on
M
ark
® 8020 profile
Dimensions for:
PCD7.L60x
PCD7.L61x
PCD7.L62x
Installation:
On 35 mm DIN hat rail
Or with min. 2 × Ø 3 mm screws on an even
surface
Supply voltage 230 VAC
2× TRIAC outputs
230 VAC
Serial S-Net
2× analogue outputs
0…10 VDC
1× relay output
2× digital inputs for isolated
contacts
– E1 window contact
– E2 parameterisable function
Analogue room control unit or
additional temperature sensor
NTC 10 kOhm
Internal data bus to
connect digital room
control devices or
extension modules
Button for
configuring
the S-Bus addresses
Outputs for 3-level fan
230 VAC
1× analogue input
0…10 VDC
