S-Monitoring
1
5
2
3
4
Dedicated
room controller
HMI Visualization
and operating
Automation
stations
Cabinet
components
Consumption data
acquisition
Visualising consumption and evaluating it remotely
h
Reading and operating via LAN/Internet with web browser and mobile devices
h
Integration in other systems via standard interfaces
If the Web Panel and controller are connected to a network (LAN), meter readings and operation can be carried out using
commercially available PCs with standard browsers. Special software installations are not required, and apps are available
for mobile devices. This can even be carried out across locations if there is an Internet connection.
Databases, energy management software or control systems can be connected via standard interfaces (e.g. FTP, CGI, HTTP,
etc.).
With step-by-step introduction, findings from the
learning curve are incorporated and lead to optimum results
Capturing consumption
h
Wide range of single and three-phase energy meters up to 6,000 A
h
S0 interface for integration of commercially available meters for gas, water, oil, etc.
Saia PCD® energy meters follow established installation technology and are suitable for DIN rails of commercially available
distribution boxes. The electrical work is recorded (electricity meters) along with the electrical values such as current, voltage, active
power and reactive power, as well as the power factor cosφ. Integrated into a bus system covering a distance of up to 1 km, the
values are transmitted to the Web Panel and controllers for the purpose of analysis and logging.
Via pulse meters with an interface, commercial available meters with S0 output or PT 1000 temperature sensors can be connected
to the bus system.
Logging consumption
h
Historic consumption recording (day/week/month/year)
h
Logging in Excel-readable files
The Web Panel and controllers read consumption values of the connected meters and display them in the form of a web visualisa-
tion. This can be called up either directly on the Web Panel or via the controller’s web server with a web browser. Consumption and
costs can be called up in meaningful diagrams via an intuitive user interface. In addition, the Web Panel and controllers record
captured values in Excel-readable CSV files, which can be easily transferred to a PC via FTP. The function can be activated on any
newer controller. The E-Controller and E-Monitor are already pre-installed in the factory and are ready for use without further
programming.

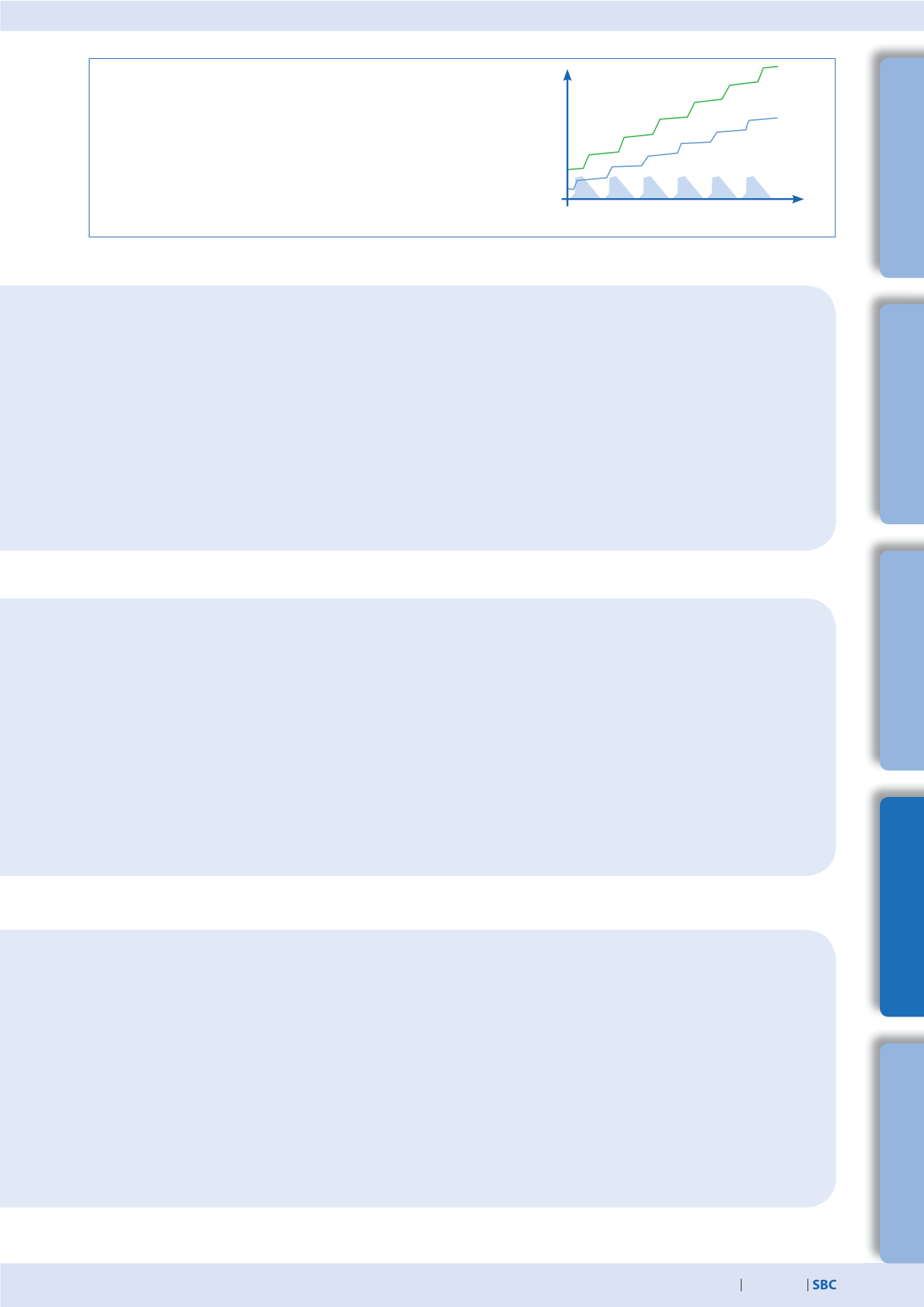

Continuous optimization in calculable steps:
Sustainable resource management means a continuous gain in knowledge in a
changing environment. The optimum solution is different for each business, and
must be developed with careful consideration. S-Monitoring supports a cautious
approach in small, controllable steps and starts with the basics. By means of
cost-effective, easy-to-install components, it is possible to start resource
management without external help. Even after just a few days, initial results are
set and point the way for further optimization steps. The investment risk is
negligible and remains limited to each individual development step.
