PCD
7L
Dedicated room controller

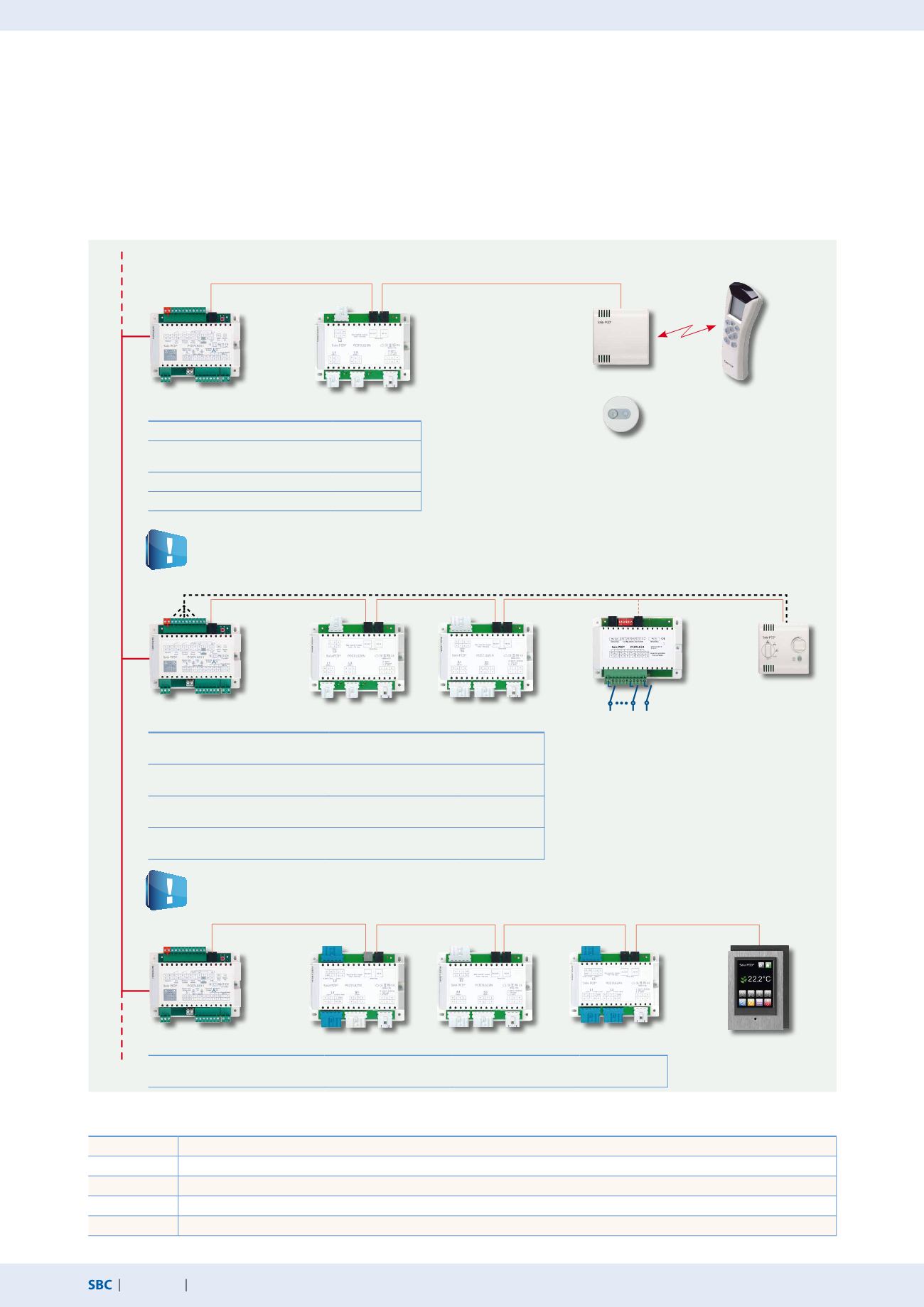

Example of system structure for touch panel and extension module
Room controller: Basic types PCD7.L600-1, PCD7.L601-1, PCD7.L603-1, PCD7.L604-1 and PCD7.L611
The room control units and extension modules are connected to the room controller as required (The extension modules can only
be operated in connection with a room controller)
A maximum of 4 groups each of light and shade functions can be configured
Room controller with extension module, input module and portable room control unit PCD7.L66x
Room control +
3 × light on/off
PCD7.L620N
2 × dimming
1 × sun blind motor
PCD7.L621N
3 × sun blind motors
PCD7.L622N
3 × light dimming
PCD7.L624N
Room controller with two extension modules, one input module and digital or analogue room control unit
Extension modules of the same type on each room controller cannot be controlled separately!
Room control +
3 × light on/off
3 × sun blind motors
PCD7.L620N
PCD7.L622N
3 × dimming
3 × sun blind motor
PCD7.L624N
PCD7.L622N
2 × dimming
4 × sun blind motor
PCD7.L621N
PCD7.L622N
4 × light dimming
1 × sun blind motors
PCD7.L621N
PCD7.L624N
Room controller with three extension modules and touchscreen room control unit PCD7.L645B
Extension modules of the same type on each room controller cannot be controlled separately!
Room control +
4 × dimming
4 × sun blind motor
PCD7.L621N
PCD7.L622N
PCD7.L624N
PCD7.L661 / PCD.L663
or
Analogue: PCD7.L671, 10 m
Digital: max. 50 m,
PCD7.L670-xx
8 2 1
Isolated contact inputs for
switching between“light and shade”
3 different options for controlling extension modules:
Digital: max. 10 m,
PCD7.L670
max. 50 m
PCD7.L672-xx
max. 50 m, PCD7.L672-xx max. 50 m, PCD7.L672-xx
Max 50 m
PCD7.L672-xx
max. 50 m
PCD7.L672-xx
max. 50 m, PCD7.L672-xx
Max 50 m
PCD7.L670-xx
max. 50 m, PCD7.L672-xx
S-Bus, L
on
W
orks
®
PCD7.L660 / PCD7.L662
PCD7.L650
PCD7.L665
PCD7.L666
PCD7.L642
or PCD7.L632
PCD7.L645B
Accessories
PCD7.L670
Connection cable for digital room control units RJ9 / RJ9, 10 m
PCD7.L670-30
Connection cable for digital room control units RJ9 / RJ9, 30 m
PCD7.L670-50
Connection cable for digital room control units RJ9 / RJ9, 50 m
PCD7.L671
Connection cable for analogue room control units RJ11 / open cable strand, 10 m
PCD7.L673
Connecting cable set for digital room control units, 3x RJ9 and 1 x RJ11, length 11 m
