S-Monitoring
4.2
Saia PCD®

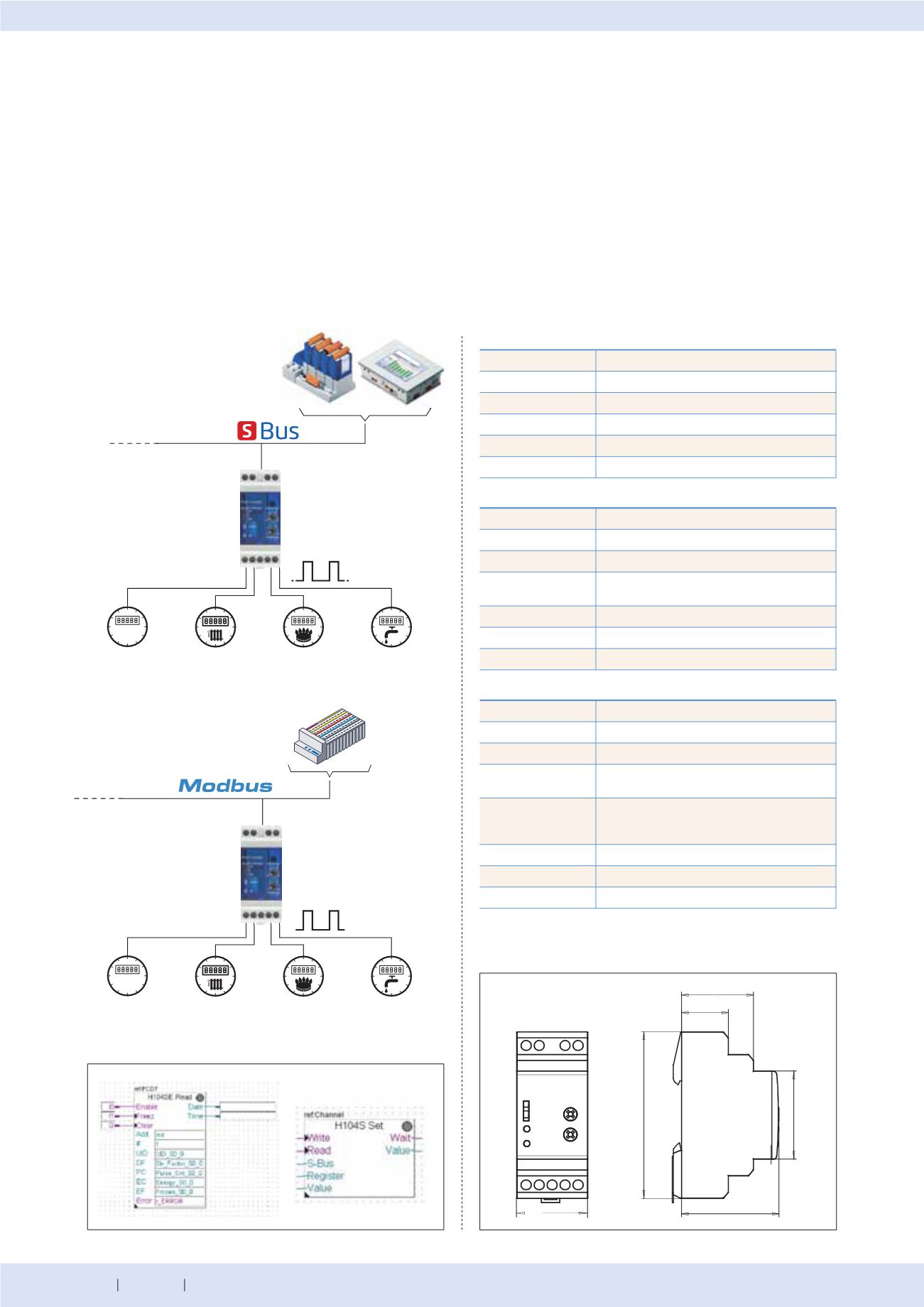

S0 pulse meters
Collecting, converting and transmitting S0 pulses
If already installed meters, which are not bus-capable, are to be integrated in an automation system, the Saia PCD7.H104 S0 pulse meter
is the easiest way. This is the case for refurbishments, for example, if the existing meter infrastructure has to be made bus-capable and
new meters are not simply purchased. With this S0 pulse meter, meters (electricity, water, heat, etc.) with a S0 pulse output from any
desired manufacturer can be connected directly to the Saia PCD®, E-Monitor or any desired controller via a serial RS-485 S-Bus or Modbus
connection. This enables efficient transfer, evaluation and forwarding of energy data without additional complicated coupler modules.
For connection to Saia PCD® systems, there are ready-made FBoxes. Via the interfaces, the number or weights of pulses can be transmit-
ted.
1)
More information on the E-Monitor can be found in section 4.7“E-Monitor”
FBoxes for integration in FUPLA
General technical data
Operating voltage
230 VAC (–20/+15%)
Current draw
<12 mA
Power consumption
< 3 W
Number of S0 inputs
4, corresponds to S0 standard 62053-31
Frequency
Max. 17 Hz
Pulse low/high
Min. 30 ms
S-Bus version
Order number
PCD7.H104SE
Log
S-Bus data mode
Bus system
Serial RS-485 interface
Transmission rate
2400, 4800, 9600, 19,200, 38,400, 57,600, 115,200
The transmission rate is detected automatically
Bus length (max.)
1,200 m (without amplifier)
Response time
Write: 30 ms
System response time
Read: 20 ms
Modbus version
Order number
PCD7.H104D
Log
Modbus RTU as per IDA specification
Bus system
Serial RS-485 interface
Transmission rate
(bit/s)
2400, 4800, 9600, 19,200, 38,400, 57,600, 115,200
The transmission rate is detected automatically
Bit settings
8 databit, even parity, 1 stop bit
8 databit, odd parity, 1 stop bit
8 databit, no parity, 2 stop bit
Maximum bus length
1,200 m (without amplifier)
Response time
Type 5 characters
System response time
Max. 60 ms
S0 Pulse
S0 Pulse
Size
