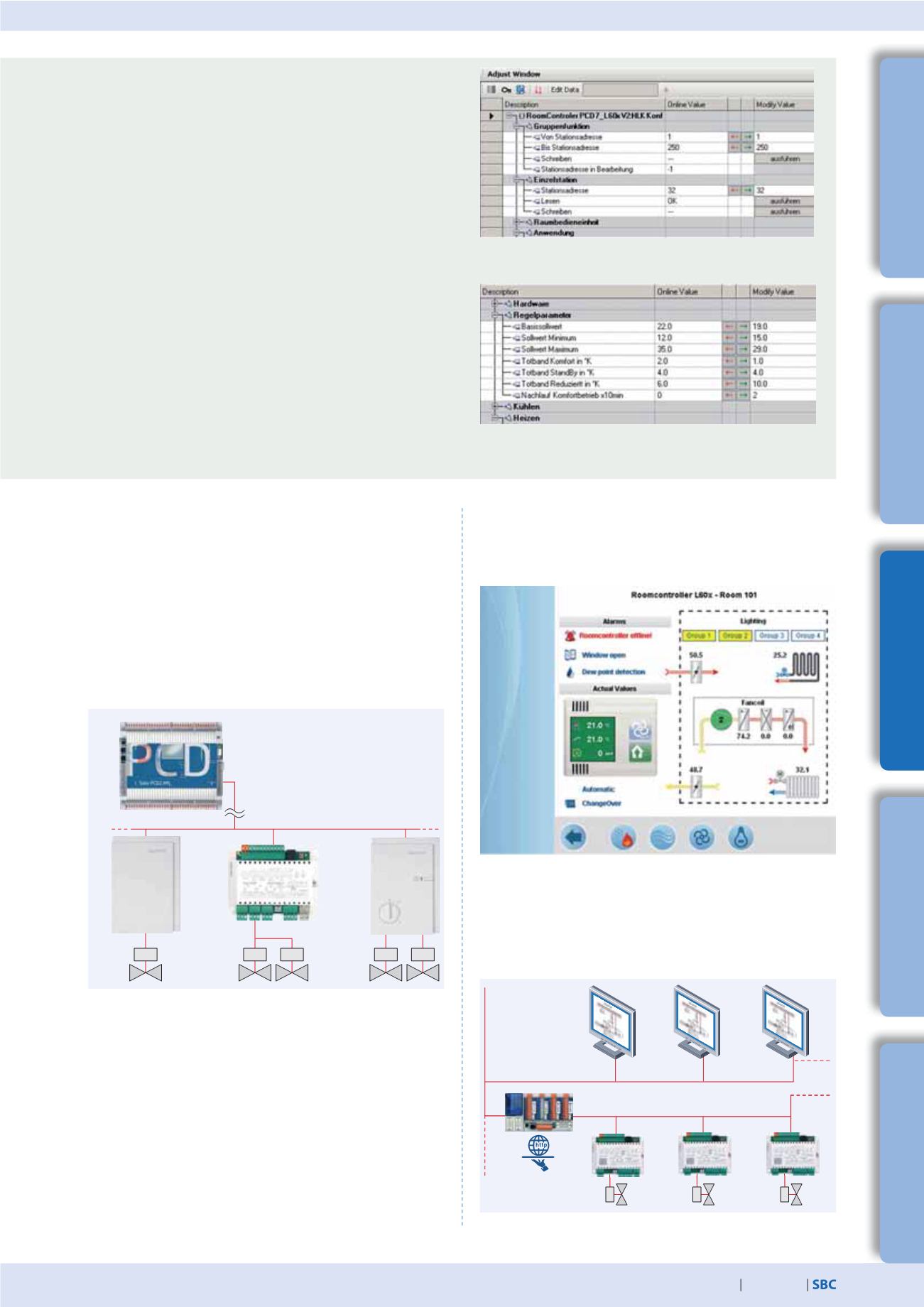

Dedicated room controller
Efficiency in project realisation
The FBoxes shorten the «Engineering duration» and simplify
the commissioning process since the configuration data can
be sent via the communication interface to up to 250 controllers
in just one single step.
The automatic detection of the communication speed also simpli-
fies the commissioning process.
This makes local operation using a PC workstation possible.
The password protected control screens are loaded directly
from the web server integrated in the automation station and
displayed.
SBC S-Web
Web Editor macros simplify the efficient setup process of
web-based commissioning, operation and service operating
concepts.
Local user prompts from PC workstation.
Serial S-Net, L
ON
W
ORKS
®
Local PC
work
stations
Integrated
web server
Visualisation and operation of the room parameters using the web server
Parametrisable application programs
If the delivered application does not meet the project require-
ments, the PG5 FBoxes or S-Web can be used to activate and pa-
rameterise the application program for various types of system.
The application software already contains several user programs
for systems such as combined radiators/cooling ceiling systems.
The control parameters (PI) for the specific applications can be adjusted
and optimised.
Multiple application possibilities
Application programs for various types of systems are already
preprogrammed in the controller and can be activated using
the parameterisation.
Configurable using the PG5 Controls Suite
Fully independent functionality guaranteed even without
bus connection
Once the application programs in the controller have been
parameterised, it is possible to run a fully independent opera-
tion without a PCD. This means that the controller will continue
to operate uninterrupted even if communication with the
Saia PCD® automation station is disrupted. All of the set configu-
ration parameters are written to the EEPROM and remain stored
there even without operating voltage.
Functionality is also guaranteed in the event of a bus fault.
