Dedicated
room controller
Dedicated room controller
Control parameters
Planning reserves
If the predefined application is insufficient, free outputs can
be also be controlled for fully independent function directly via
the Saia PCD® program using the S-Bus.
The room controller can also be configured as a single RIO unit
(Remote Input Output) by completely switching off the fully
independent function. The Saia PCD® station assumes control
of al the inputs and outputs.
The resulting dependency of the availability of the S-Bus com-
munication and the increase in the S-Bus cycle time should be
taken into account during the planning stage.
`
Do not install the control device/compact room controller near
windows or doors due to potential draughts. The recommended
position is on an opposite wall at a height of approx. 1.5 m.
`
Do not located the control device/compact room controller
in the path of draughts from climate control or ventilation sys-
tems.
`
Do not install it near to heat sources such as heating systems,
fridges, lights, etc. Avoid direct sun light or direct light from strong
lamps.

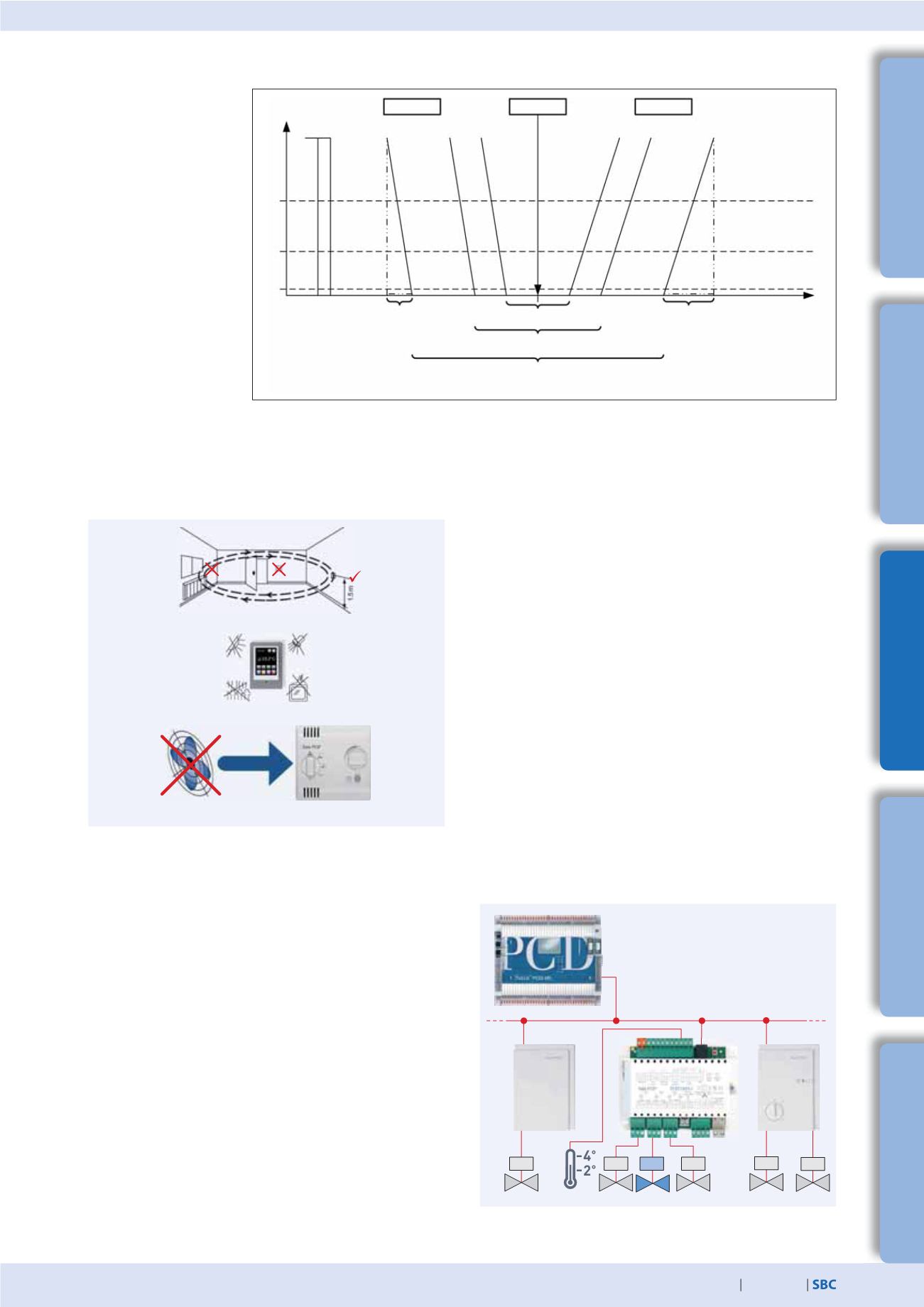

Control devices and compact room controller installation information
The adjacent illustration
depicts a selection of
the most important adjust-
able control parameters of
a PCD7.L60x-1 controller.
Other parameters such as
the reset times, threshold
values, etc. can also be ad-
justed.
Example of a selection of
PCD7.L60x-1 control parameters.
Heating
Setpoint
value
Cooling
Comfort
Standby
Reduced
Deadbands
8°C
Frost
protection
Room
tempera-
ture
Fan level 3
Fan level 2
Fan level 1
Output controller
Proportional zone
Cooling
Proportional zone
Heating
0%
100%
Control of free outputs via Saia PCD®
