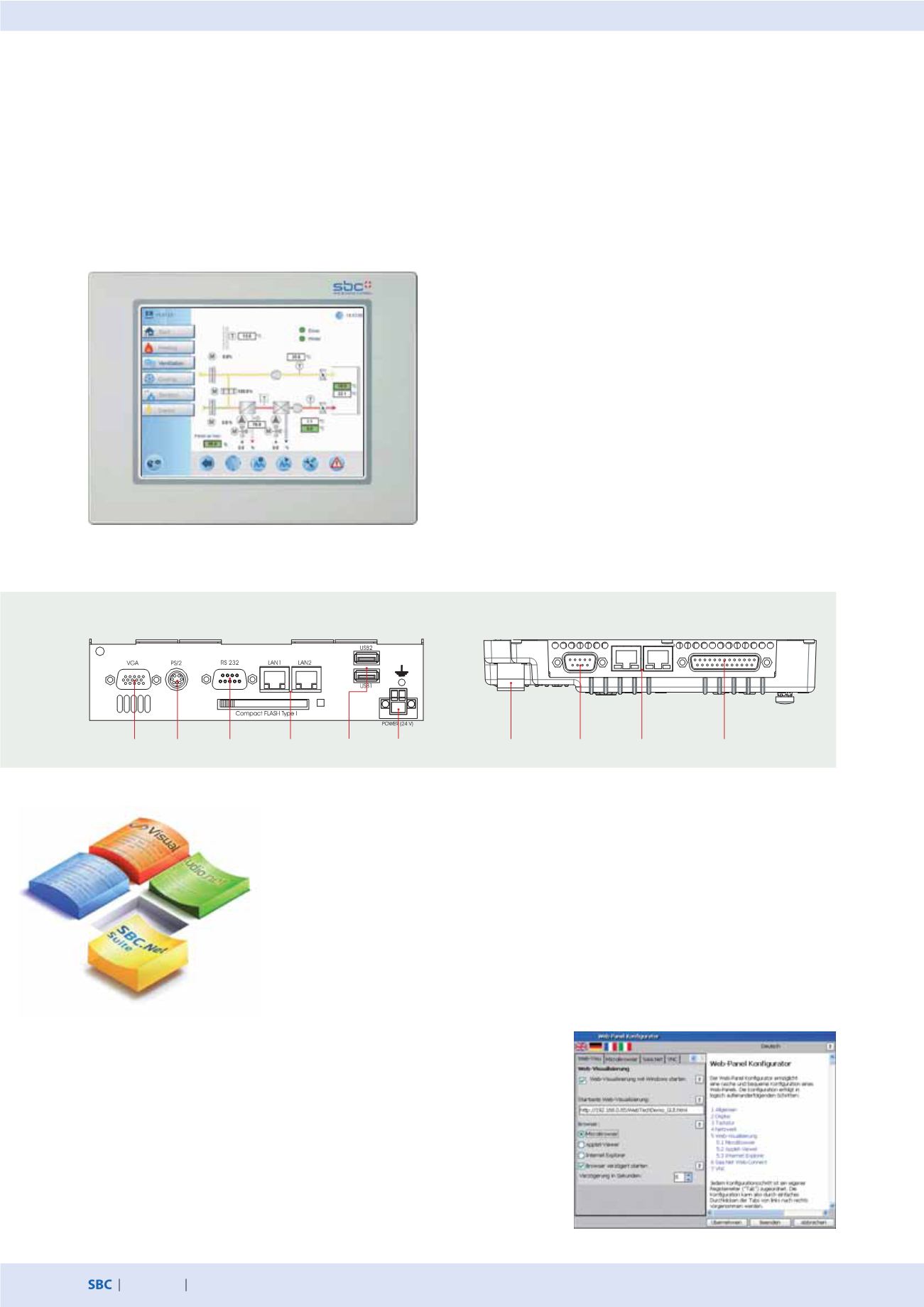

PCD
7D
Visualization and operating
2.6
Web Panel withWindows
®
operating system
Control panel for web visualizations withWindows®
Saia PCD® Web Panels are specially based on the requirements of web visualizations and are preconfigured with all the applications and
software tools needed for this. There is no need for laborious installation and software updates. Saia PCD® Web Panels are ready to use
immediately.
Main characteristics
`
Preconfigured and ready to use for web visualizations,
optimized for Saia PCD® controllers
`
10”/12”/15” color TFT display with 16.7 million colors
and touch operation
`
2× Ethernet
`
Without fan and hard drive
PCD7.D51xxTL010Web Panel series
PCD7.D6150TA010Web Panel
SBC.Net: Toolboxes for web visualization and high-level language programming
The preinstalled SBC.Net offers a range of add-on functions which simplify the use of web visualizations and
support the use of Saia PCD® technologies in conjunction with high-level language programming.
Web-Connect ensures simple and efficient communication between panels, controllers and the Inter-
net. With the Web-HMI server, high-level language programs can be expanded to include a web inter-
face and can thus be easily operated by a web browser. The Web-Panels are fitted with .Net Compact
Framework and present an ideal platform for Visual Basic and C# programs. Definition of communication links
with Web-Connect using a web interface via Internet Explorer.
Simple panel configuration
With Web Panel Configurator, the Web Panel can be adapted to the relevant
application in an instant. Using an intuitive user interface, all the settings can be
made logically step by step. Starting with the network configuration, through to
selecting the web visualization to be shown and the browser settings associated
with it, the multilingual software tool makes it easy to configure the Web Panel
without any knowledge of Windows®.
24 VDC/GND
USB
2× Ethernet
RS-232
PS/2
VGA
24 VDC / GND RS-232 2× Ethernet
RS-232
