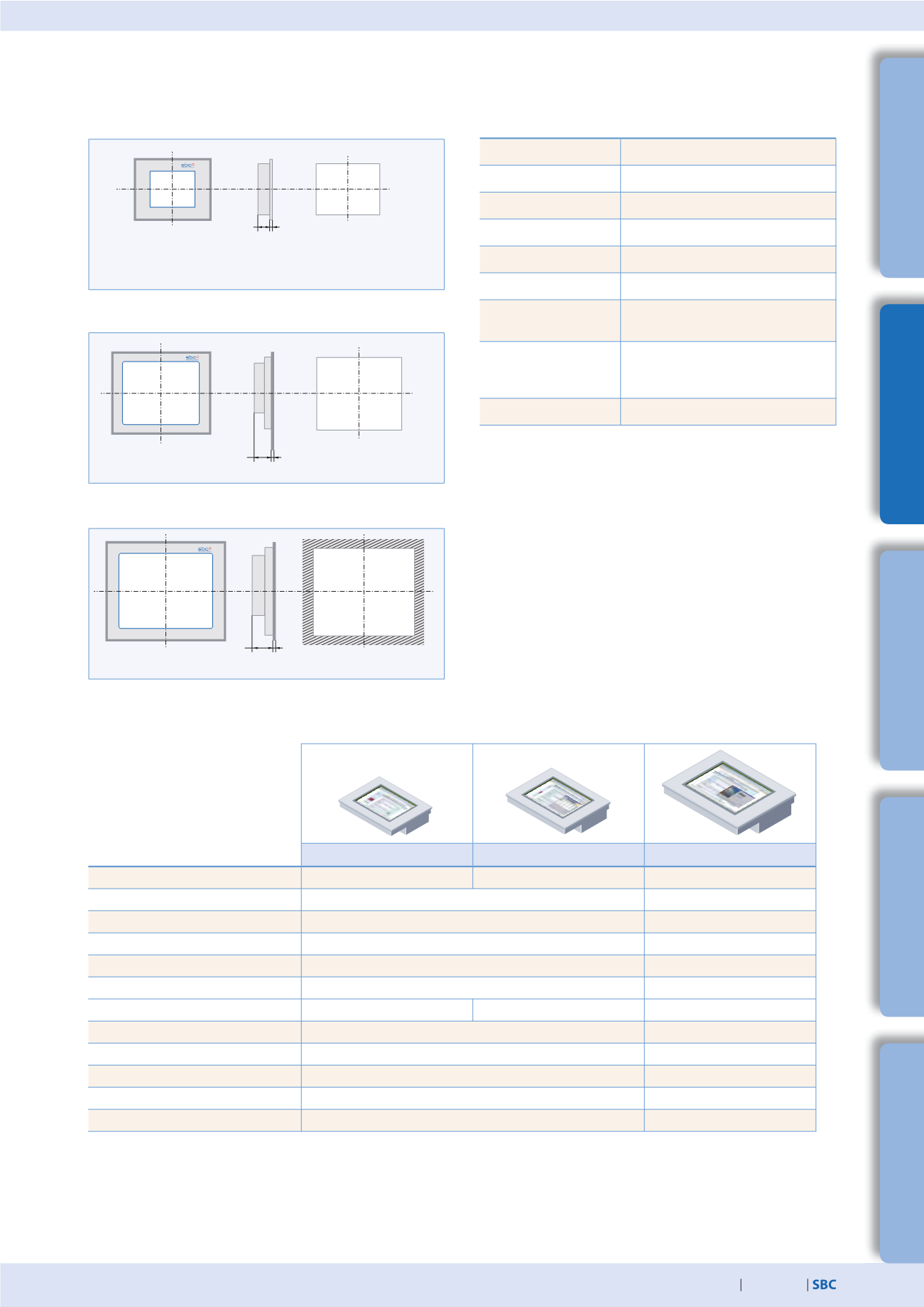

PCD
7D
PCD7.D5120TL010
PCD7.D6150TA010
PCD7.D5100TL010
67 6
72 6
67 6
Visualization and operating
1
Automation
stations
5
4
3
Cabinet
components
Dedicated
room controller
Consumption data
acquisition
2
HMI Visualization
and operating
Technical data
PCD7.D5100TL010
PCD7.D5120TL010
PCD7.D6150TA010
Display size (inch)
10.4”
12.1”
15”
Resolution (pixels)
SVGA 800 × 600
XGA 1024 × 768
CPU
533 MHz / AMD Geode LX 800
1.6 GHz / Intel Atom Z530
Main memory
256 MB
1 GByte
Internal ROM (HDD)
128 MB CFC slot
4 GByte SSD
Expandable ROM (HDD)
CFC slot
SD card
Current draw
approx. 0.9 A
approx. 1.1 A
normal 1.5 A, maximum 1.7 A
USB
×2 USB 2.0, host
USB 2.0 Host (500 mA)
PS/2
1 × Mini DIN PS/2
---
Monitor
1 × VGA
---
Operating system
Windows® CE 6.0 R3
Windows® eXP:
.Net
Compact Framework
Framework
Dimensions (W × H × D) and cut-out (W × H) mm
Front plate W × H, 318 × 244
Display
W × H, 214 × 162
Cut-out W × H, 303 × 229
Front plate W × H, 452 × 358
Display
W × H, 305 × 230
Cut-out W × H, 428 × 332
Front plate W × H, 364 × 296
Display
W × H, 253 × 193
Cut-out W × H, 345 × 277
General data
Protection type (front)
IP65
Web/FPT/VNC/File Server Yes
Supply voltage
24 VDC ±20%
Ethernet
2× Ethernet Ports RJ-45
Serial
RS-232 D-Sub 9-pole
Applications
JAVA Runtime, Micro-Browser
Ambient temperature
Operation: typically 0…50°C
Operation: –20…60%
Atmospheric humidity
Operation: typically 10…75°C,
Storage:
10…95%
non condensing
Touch-screen
Resistive touch-screen
