The right mounting kit for all Web-HMI devices
The Micro-Browser Panel series not only fits in a switch cabinet but, using industrial in-wall and off-wall mounting kits, enables this
modern technology to be easily and properly integrated into the area in close proximity to the user as well. The mounting kits therefore
enable simple wall mounting, which is consistently available for all panels. This minimizes logistic and mounting costs.
2.5

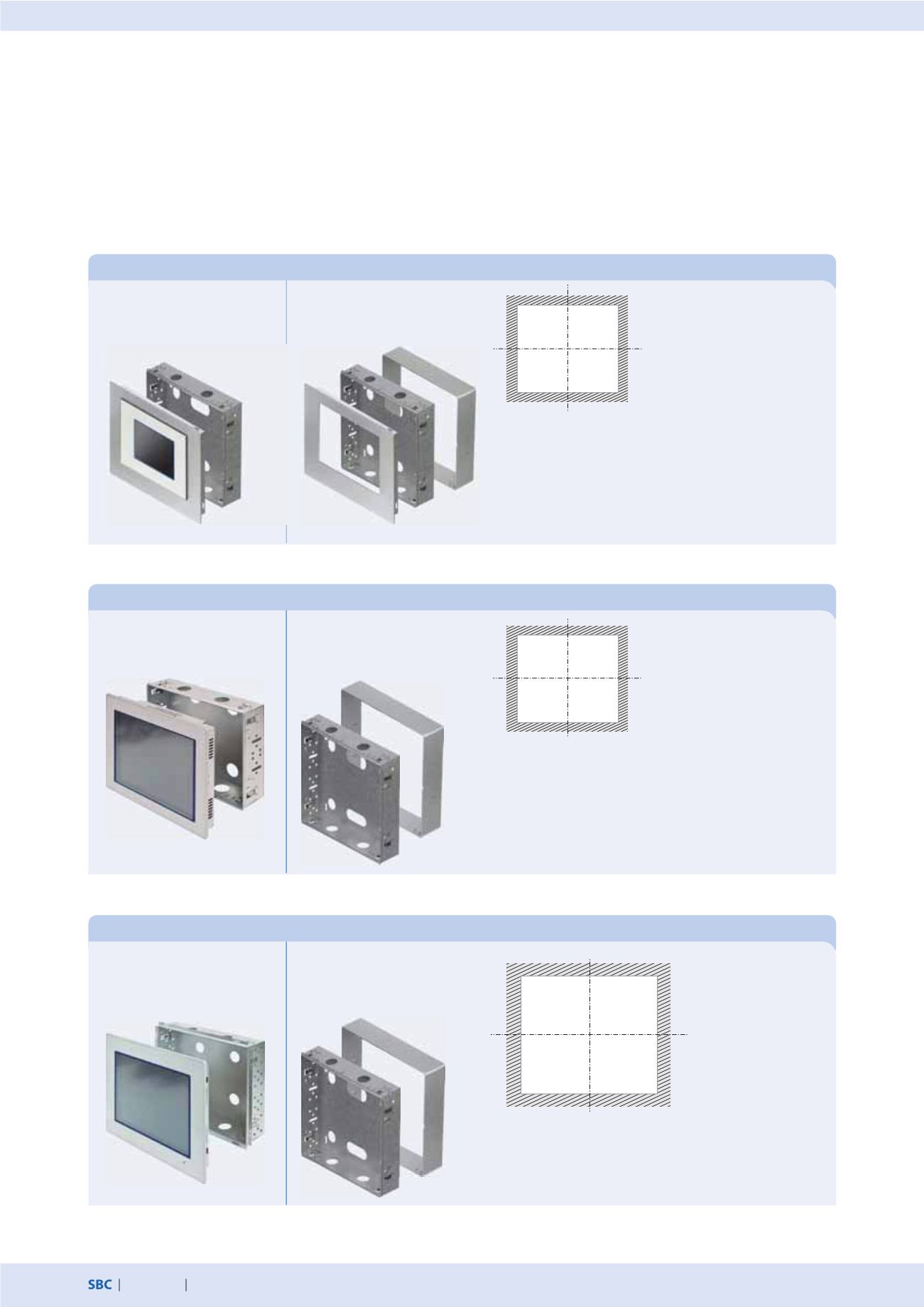

Accessories for Micro-Browser Panels
Cut-out
B × H, 309 × 245
Minimum depth
For solid walls
75 mm
For cavity walls 65 mm
5.7 inch / 7 inch
In-wall mounting
PCD7.D457-IWS2
On-wall mounting
PCD7.D457-OWS2
10.4 inch
In-wall mounting
PCD7.D410-IWS
On-wall mounting
PCD7.D410-OWS
12.2 inch
In-wall mounting
PCD7.D412-IWS
On-wall mounting
PCD7.D412-OWS
Cut-out
B × H, 270 × 211
Minimum depth
For solid walls
75 mm
For cavity walls
65 mm
Cut-out
B × H, 270 × 211
Minimum depth
For solid walls
75 mm
For cavity walls
65 mm
