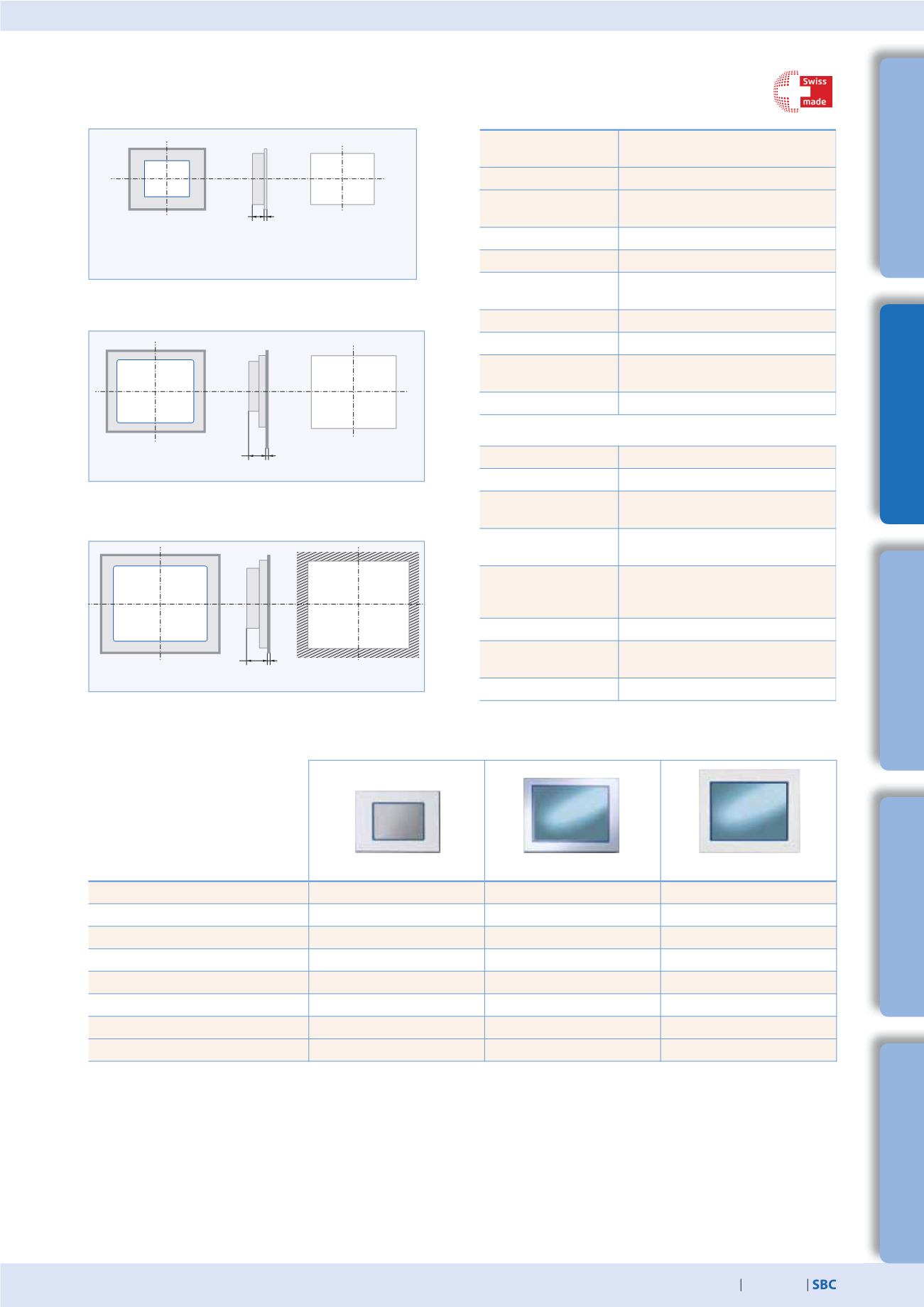

PCD7.D410VT5F
PCD7.D412DT5F
PCD7.D457VT5F
Visualization and operating
1
Automation
stations
5
4
3
Cabinet
components
Dedicated
room controller
Consumption data
acquisition
2
HMI Visualization
and operating
Dimensions (W × H × D)
and cut-out (B × H) mm
Front plate
B × H, 202 × 156
Display 5.7”
B × H, 117 × 88
Front plate
B × H, 319 × 264
Display
B × H, 245 × 185
Front plate
B × H, 281 × 221
Display
B × H, 211 × 150
Logic controller
Operating system:
Saia PCD® COSinus with Micro Browser
extensions
Protection class
IP65
User program,
ROM/DB/Text
1 MByte
RAM/DB/Text
1 MByte
Media
16,384 flags / 16,384 registers
Backup for users
The user program is saved
on the integrated microSD card
File system for users
128 MByte onboard
Program cycle time
10 cycles/sec. maximum
Protocols at field level
Serial-S-Bus, Ether-S-Bus, Ether-S-IO,
Modbus RTU or TCP
Internet services
SBC Micro Browser, Automation Server
Interfaces
Ethernet
2× RJ-45 (Switch)
USB
1× (1.1/2.0)
Serial interfaces
RS-485
1 slot for PCD7.F1xxS
Temperature range
Operation:
0 …50°C (typically)
Storage:
–25 …70°C
Humidity
Operation: 10 …80%,
Storage:
10 …98%,
non-condensing
Processor
Coldfire CF5373L 240Mhz
Battery
Lithium Renata CR 2032
(lifetime of 1…3 years)
Real-time clock (RTC)
through battery backup
Technical data
PCD7.D457VT5F
PCD7.D410VT5F
PCD7.D412DT5F
Display size
5.7”TFT
10.4”TFT
12.1”TFT
Resolution (pixels)
VGA 640×480
VGA 640×480
SVGA 800×600
Touch screen
Resistive touch screen
Resistive touch screen
Resistive touch screen
Contrast adjustment
Yes
Yes
Yes
Background lighting
LED
LED
LED
Power supply
24 VDC ±20%
24 VDC ±20%
24 VDC ±20%
Current draw
max. 500 mA
max. 500 mA
max. 600 mA
Status front LED
---
---
Yes
Cut-out
B × H, 189 × 142
Cut-out
B × H, 300 × 244
Cut-out
B × H, 262 × 202
Communication
The Saia PCD® pWeb Panel MB units can be expanded with one slot for PCD7.Fxxx modules or PCD7.Rxxx modules with various com-
munication and memory modules.
The modules are described in the section “1.4 Saia PCD1 series”.
