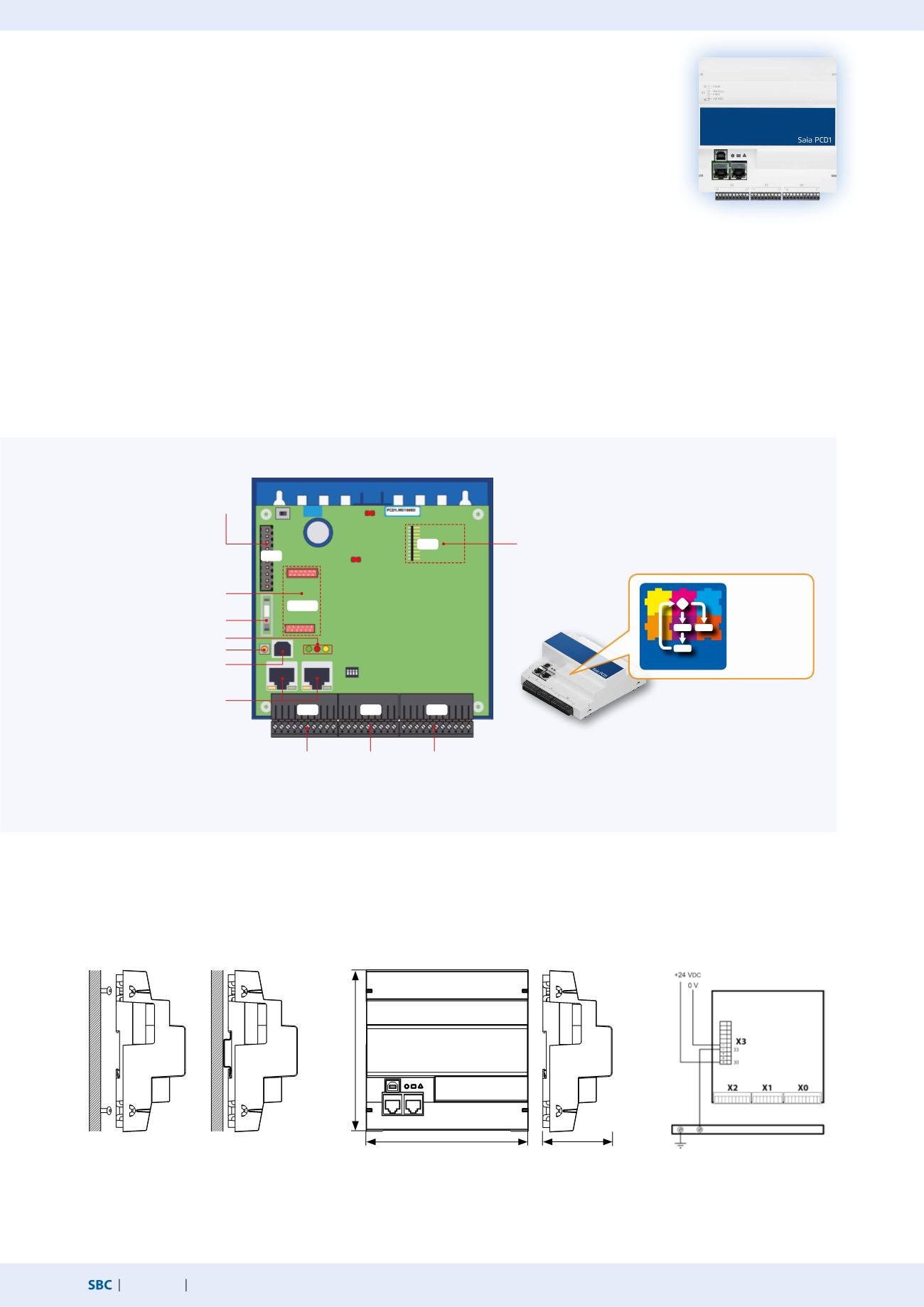

Automation stations – Saia PCD1
The fully programmable eController (PCD1.M0160E0) is a compact controller with a factory pre-
loaded S-Monitoring application. For more on S-Monitoring and the loaded application,
see Chapter 4 “S-Monitoring” below or Chapter 4.8 “eController”.
Designed for compatibility with an electrical control box, the eController is suitable for installation
in an electrical distribution unit or any restricted space. In addition to integral I/Os, interfaces
and web/IT functions, the PCD1.M0160E0 offers additional ways of connecting various protocols.
This controller is therefore ideal as a micro-controller or communications gateway (e.g. EnOcean, KNX, BACnet…) or for
recording, logging and processing consumption data. This controller can also be used in connection with the PCD1
E-Line series.
Device design
1.4.3
Saia PCD® eController (PCD1.M0160E0)
Power supply and connection
concept
Mounting
Dimensions
on a level surface
Further information is provided in the Chap-
ter Saia PCD3 power supply and connection
concept, and in the Manual 26-875.
on a 35 mm DIN rail
(as per DIN EN 60715 TH35)
Voltage supply 24 VDC
Watchdog relay
RS-485 interface
Terminals for integrated
inputs and outputs
Terminals for optional
connection (slot A)
Ethernet connection
(2-port switch)
USB port
Operating LEDs
Slot for
communication
interfaces
Battery
RUN/STOP button
Supply
Groundbar
1.5mm
2
/max.25cm
S-Monitoring
application
loaded
Slot for memory
modules
For more details, see Chapter 4
Compact mass:
142 × 142 × 61 mm
