PCD
7D
42 6
60 6
56 6
45 5
PCD7.D410VTCF
PCD7.D412DTPF
PCD7.D450WTPF
PCD7.D457VTCF
49 5
PCD7.D470WTPF*
Visualization and operating
1
Automation
stations
5
4
3
Cabinet
components
Dedicated
room controller
Consumption data
acquisition
2
HMI Visualization
and operating

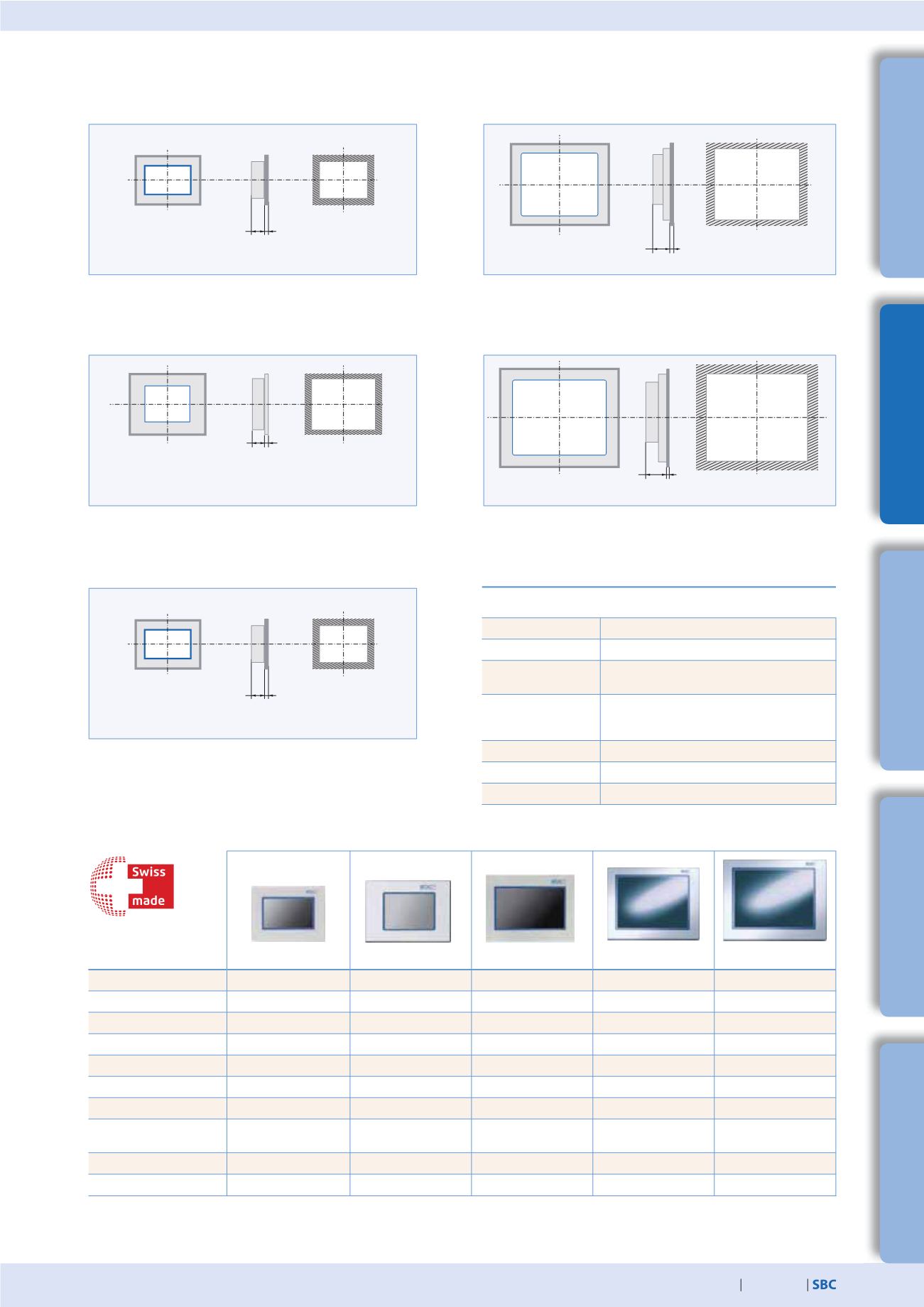

Dimensions (W × H × D) and cut-out (W × H) mm
Front plate
W × H, 202 × 156
Display 5.7”
W × H, 117 × 88
Cut-out W × H, 189 × 142
Cut-out W × H, 300 × 244
Cut-out W × H, 262 × 202
Front plate
W × H, 166.2 × 122.2
Display 5.0“
W × H, 109.4 × 66.2
Front plate
W × H, 281 × 221
Display 10.4“
W × H, 211 × 150
Cut-out W × H, 157 × 117
General data
User interface
Operating system Saia PCD® COSinus with Micro-Browser expansion
Protection type (front)
IP 65
Temperature range
Operation:
0…50°C, (7.0“: –25…+70°C)
Storage:
–25…+70°C
Humidity
Operation:
10…80%,
Storage:
10…98 %,
non-condensing
Contrast adjustment
Yes
FTP server
Yes
Supply voltage
24 VDC ±20%
Technical data
PCD7.D450WTPF
PCD7.D457VTCF
PCD7.D470WTPF*
PCD7.D410VTCF
PCD7.D412DTPF
Display size
5.0”TFT
5.7”TFT
7.0“ TFT
10.4”TFT
12.1”TFT
Resolution (pixels)
WVGA 800×480
VGA 640×480
VGA 800×480
VGA 640×480
SVGA 800×600
Touch screen
Resistive touch screen Resistive touch screen Resistive touch screen Resistive touch screen Resistive touch screen
Background lighting
LED
LED
LED
LED
LED
Colors
65,536
65,536
65’536
65,536
65,536
On-board file system
128 MB
4 MB flash
128 MB
4 MB flash
128 MB
Processor
240 MHz
66 MHz
240 MHz
66 MHz
240 MHz
Interfaces
USB 1.1/2.0,
Ethernet 10/100 M
RS-232, RS-485, USB 1.1,
Ethernet 10/100 M
USB 1.1 Device
Ethernet 10/100 M
RS-232, RS-485, USB 1.1,
Ethernet 10/100 M
USB 1.1/2.0,
Ethernet 10/100 M
Current requirements
350 mA
approx. 500 mA
400 mA
approx. 500 mA
approx. 600 mA
Real-time clock (RTC)
Yes (Super-Cap)
No
Yes (Super-Cap)
No
Yes (Super-Cap)
Front plate
W × H, 319 × 264
Display 12.1“
W × H, 245 × 185
* In preparation, see chapter C2 Status
Front plate
W × H, 204 × 157
Display 7.0“
W × H, 152 × 91.44
Cut-out W × H, 189 × 142
