SBC S-Web Technology
Management/control system
software
Communication middle ware
e.g. OPC/BACnet Stack etc.
Windows version xxxx
Management/control system
hardware PC
Local
operating device
MSR device
automation station
Local
operating device
MSR device
automation station
ICA device
automation station
ICA device
automation station
Software
operating device
Software
automation station
Software
operating device
Software
automation station
Software
automation station
Software
automation station
System 1
System 1
System 2
System 2
System 3
System 3
System X
System X

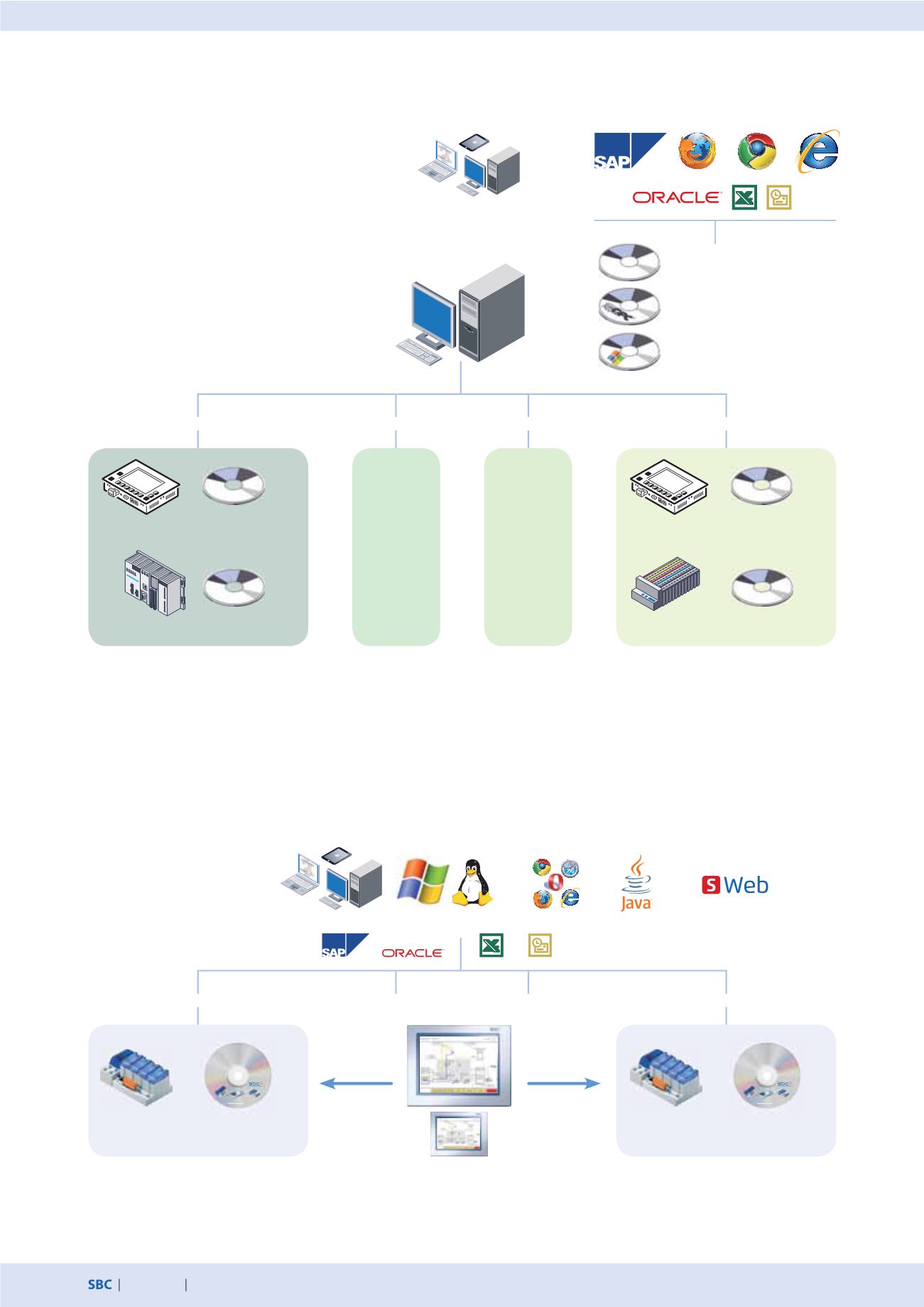

The results of lean automation system design specifications with S-Web:
The control/management function is realised where it is needed. The automated system uses as little additional
software/hardware as possible. Direct coupling of all devices via Web+IT standards – without middleware/special
products.
Superior standard systems and operating stations
have access to the system data via special drivers and
middleware.
The results of classic tenders:
This technology is installed in properties and then has to be maintained and extended over the following 15-20 year
life-cycle!
Superior standard systems
and operating stations have
direct access to the system
data any time, anywhere.
S
Lean automation with slim-line structures:
Web/IT interfaces and SCADA functions integrated in the ICA device
high degree of flexibility and easy to maintain/expand.
Optional local control panel
S
Classical structure with complex hierarchies
consuming installation, inflexible and expensive in maintenance and care.
