Using an Automation Server
as a technical basis for S-Web
Electrician
Maintenance
supervisor
Operator
Operations manager
Programmer
Service engineer
Users are able to access
the automation device directly
for operation and maintenance
purposes. There is no need for
any extra software as it simply
uses your standard software
tools

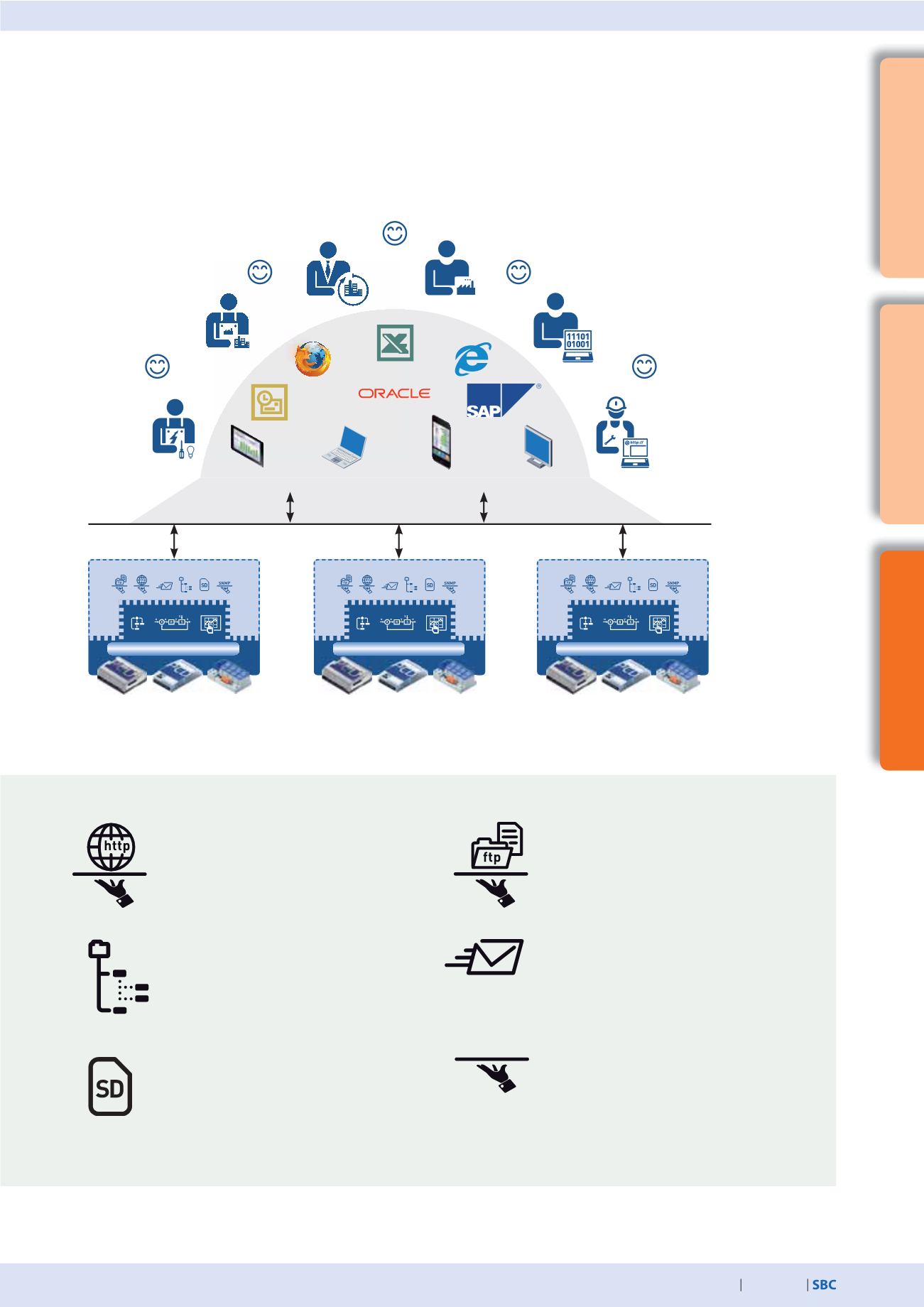

Ideally, every automation device will have an Automation Server: each device can be accessed equally and complex
communication hierarchies are unnecessary.
Web server
The system and process are visualised in the form
of web pages and can be requested from
the web server using browsers such as Internet
Explorer, Firefox, etc.
File system
Process data, records, etc. are stored in easy-
to-access files. Standard formats make it easy
to process them further, e.g. with Microsoft Excel
Flash memory
Their large storage capacity means Saia PCD®
controllers do not rely on a master PC system,
even over a long time period. The data storage
capacity of the Saia PCD® controller can
be expanded to up to 4 GByte by installing a SD
flash card.
FTP server
Files can be loaded onto or read from
the automation device via the network using
standard FTP clients (e.g. Filezilla).
E-mail
Critical system statuses, alarms and log data can
be sent by email.
SNMP agent
Messages and alarms are transmitted according
to IT standards. Access to automation data with
IT management system.
SNTP, DHCP, DNS, etc.
Other standard protocols for simple integration
in existing IT infrastructures
Automation Server components
An Automation Server is part of the COSinus operating system and is therefore integrated in all Saia PCD® controllers. It
comprises common web/IT technologies and guarantees the exchange of data between the operator/user and automation
without any proprietary hardware or software. Specially adjusted automation functions and objects form the relevant counter
piece in the controller application. The IT/web functions are therefore seamlessly integrated in the automation device in the best
way possible and can be used efficiently.
Automation Server
Freely programmable and extendable
Automation Server
Freely programmable and extendable
Automation Server
Freely programmable and extendable
