Saia PCD3.M5560
2
Communication &
Interaction
SBC S-Web Technology
1
SBC Software
3
SBC S-Web Technology

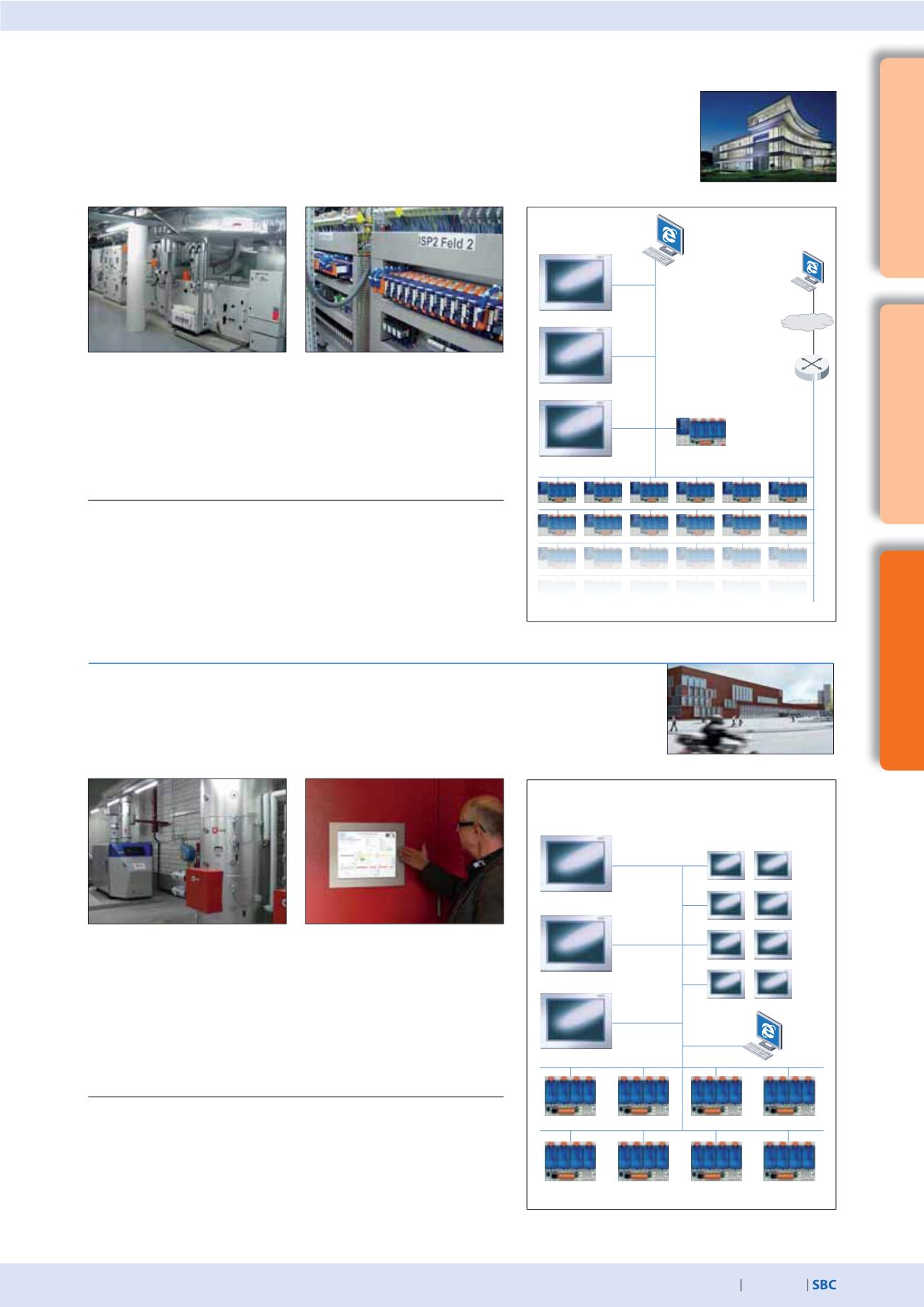

Marc Cain Building
Bodelhausen/Germany
POM-certified HVAC system (Peace Of Mind) and room control technology for the head office
of this international fashion company provides a better climate and low energy consumption.
The performance requirements for the automation of the building were set at
a high level right from the beginning with the aim of achieving “Peace of Mind”
certification from TÜV. Thanks to this approach, the design study integrated
all the HVAC aspects of the building into one single, flexible control project.
The thermal energy, for example, is produced by various sources and its distribution
is controlled to minimise energy consumption. In a complex installation, this is only
possible thanks to the ability of the control system to integrate seamlessly all devices
independently of their communication capabilities.
Lucerne Conference Centre
Lucerne/Switzerland
The renovation and expansion of the Lucerne Conference Centre achieved the Minergie Standard
and revitalised this important meeting place.
The 13,000 m
2
of the four halls of the Lucerne Conference Centre provide the most
modern technological exhibition area able tomeet all usage requirements. The range
of different events also require a flexible architecture for lighting, ventilation and air
conditioning in order to complywith the energy efficiency requirements of Minergie-
certified conference centres. The extensive usage of bus technology in the planned
building services, such as DALI for the lighting and MP Bus for the HVAC, allowed it
to be integrated into the Saia PCD® controller with little effort and operated using
web technology. The very high level of flexibility of our programmable controllers
and a design based on open-web technology which made high levels of investment
in expensive visualisation systems superfluous, were crucial to the award.
Eight PCD3.M3330 automation devices
3.3
Real life examples of SBC S-Web
X
The Marc Cain system comprises 25 automation devices. 24 Saia PCD3.M5x40 cover
the individual system components/sub-sections. One Saia PCD3.M5x60 forms
a master control/management level for the entire property. Now any browser device
in the network (LAN/WAN) can be used to access the local operator application of
each individual system or even directly access the control/management application
of the master Saia PCD3.M5x60. Complex system schematics naturally require
suitably sized displays; a PDA/mobile phone is not large enough for this.
X
The Lucerne Conference Centre operating and monitoring concept is based entirely
on SBC S-Web. It does not require a PC/Windows-based control or management
system. Trend data are recorded directly in the automation device and visualised using
the available web templates. The system comprises 2000 physical data points distributed
among eight PCD3.M3330 automation devices. There are eight 10” Micro-Browser
devices installed per system component for operational purposes. There are three 15”
web panels with the Windows CE operating system for providing a global overview.
Server:
System-wide
control/management
functions realised with
Saia PCD3.M5x60; no
PC and no Windows!
VPN
Remote
maintenance
Client: Touch panel
with Micro-Browser
24 Saia PCD3.M5 for systems/sub-sections
8 touch panels (10" )with
micro-browser
3 touch panels (15" )with
micro-browser
