SBC Software
Saia PG5® Project Manager
Project Tree
The layout and structure largely correspond to Windows
Explorer. The “Project Tree”window allows direct access to
all PCDs used in the project, their settings and the program
files and documents that go with them. Program organiza-
tion by files (containing one or more program blocks)
simplifies the shared use of program files in multiple
Saia PCD®.
The “Program Files” folder may also comprise different data
types. It is therefore possible to save all types of program-
ming in one folder.
Messages and Error List
Displays the build log, error and status messages. Errors in
the program code are listed here after the build, and can
be located directly by clicking.

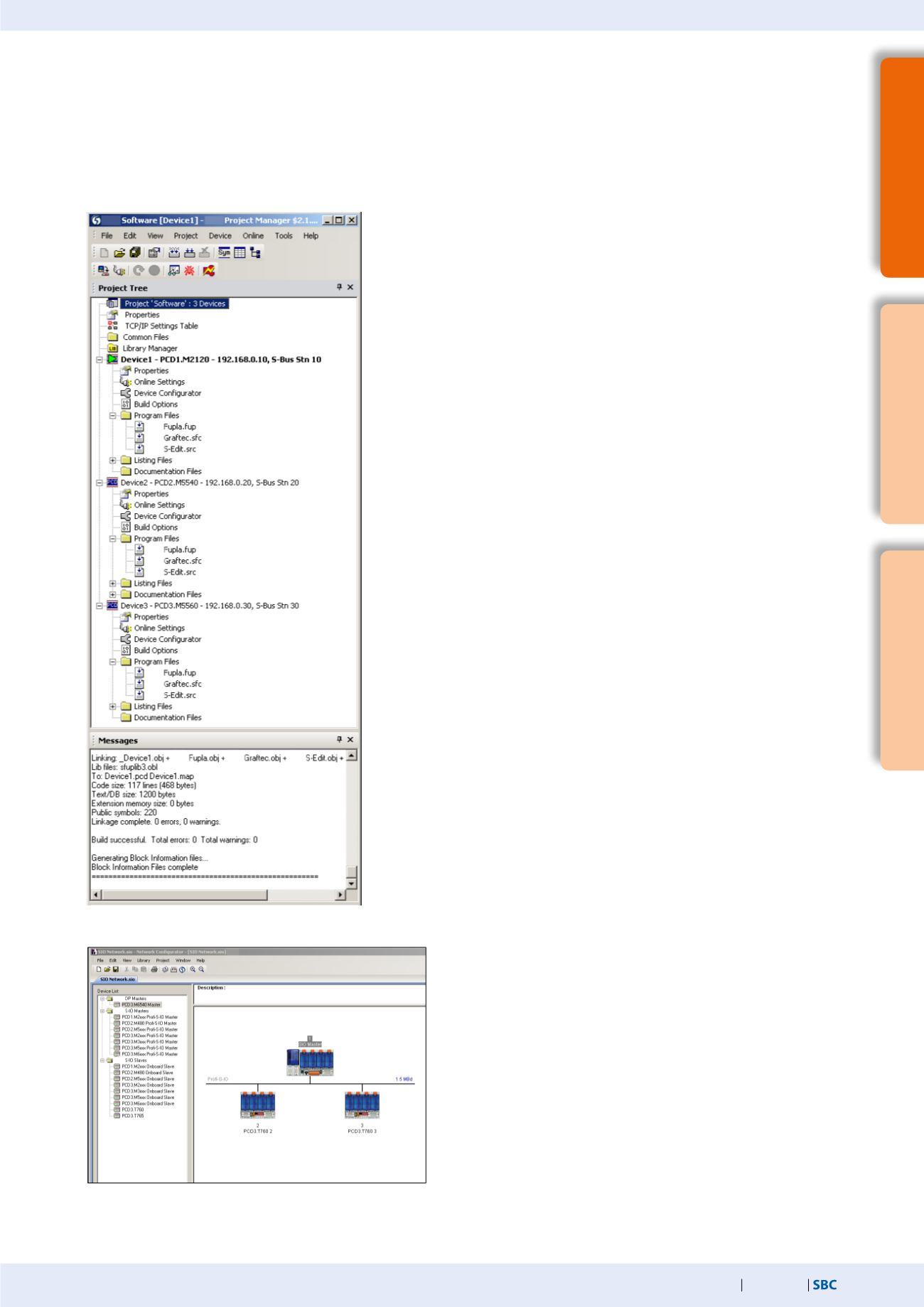

Window of the Saia PG5® Project Manager
Network Configuration
Network configuration is used for the configuration of devices and
communications networks. Three different configurations generally exist:
1.) Ethernet RIO Network Configurator
Smart RIO – PCD3.T665 and PCD3.T666.
2.) BACnet Network Configurator
BACnet Configuration Files (*.bnt)
3.) S-Net Network Configurator
Profibus-DP Network File (*.dp)
Profi-S-IO Network File (*.sio)
LON Network File (*.lon)
Network configurator in use – Profi-S-IO Network
The configurations and applications are created, changed and managed in the Saia PG5® Project Manager. The Saia PG5® Project Manag-
er is the central linchpin for all work with Saia PCD® controllers.
The following window appears on the left-hand side of the screen as soon as the Saia PG5® Project Manager is opened. Thanks to
desktop docking, there is still enough space on the right-hand side of the screen for further windows.
