Communication & interaction
2.3
Web and IT protocols
for integration into IT infrastructures
Thanks to standardWeb/IT protocols, Saia PCD® systems
can be universally integrated across all the layers in
existing IT infrastructures without any additional effort.
IP address
Subnet mask
Gateway
DNS address
Request
All Saia PCD® controllers have an integrated automation server with open standardWeb/IT interfaces. Thanks to the standard
communication protocols, Saia PCD® are easy to integrate into existing software infrastructures without additional effort.
No specific drivers or systems are required.
Standard tools such as web browsers, FTP clients and SNMP managers, etc.,
are used to access the data in the PCD controllers.
DHCP: Dynamic Host Configuration Protocol
Protocols for automatically configuring the Ethernet communication. It is no longer necessary to enter the communications
parameters manually as they are assigned directly from a central server.
A DHCP client automatically receives the IP address, subnet mask, gateway and DNS address parameters on request.
The devices in the existing network are integrated automatically.
The devices are integrated in the existing network without knowledge of the network parameters. Service personnel can also
exchange devices without having any technical background or knowledge of the specific network data.
Standard
RFC-2131
Port
UDP 68 for client
Assigned attributes
IP address
Subnet mask
Standard gateway (optional)
DNS address (optional)

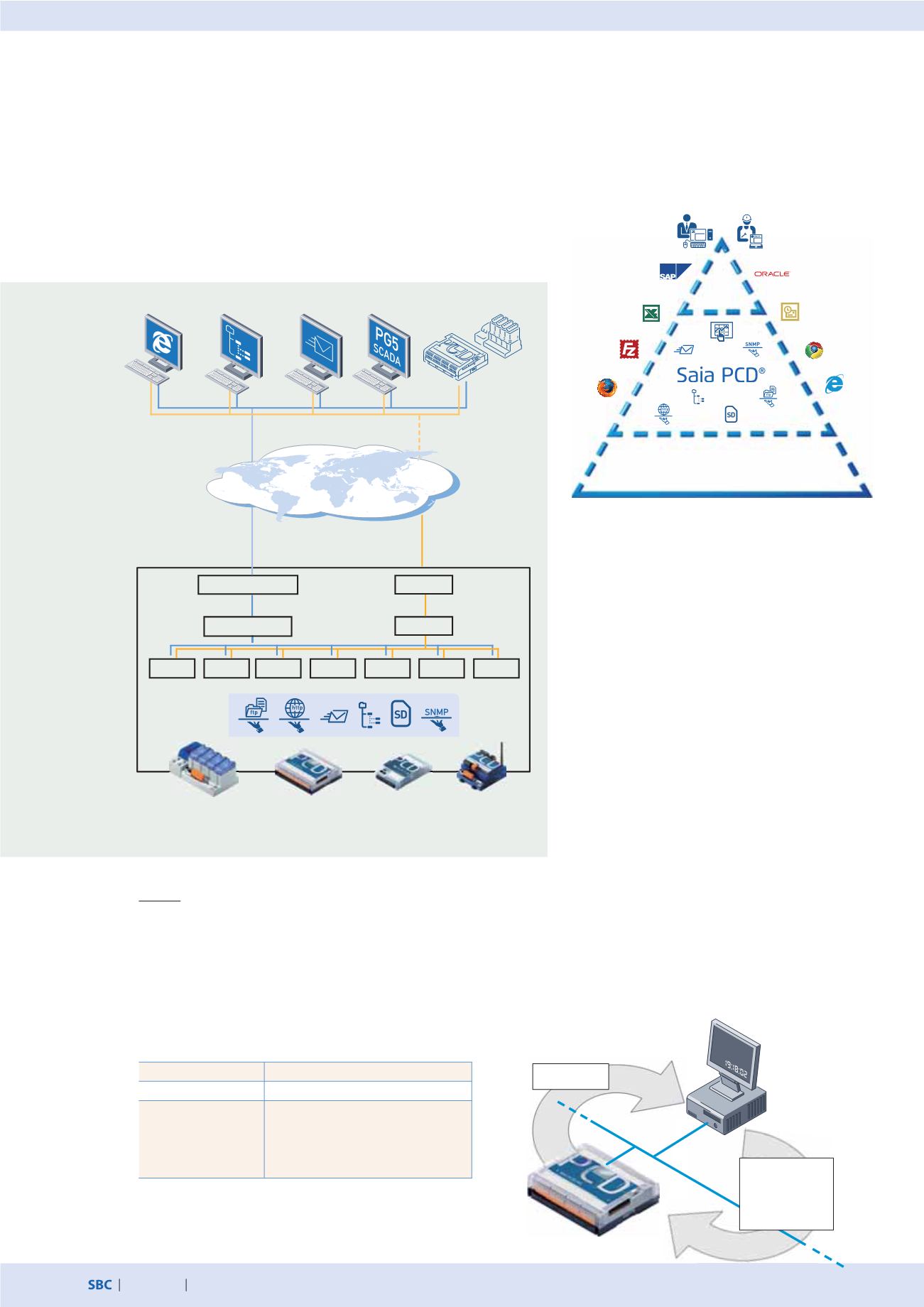

An overview of Web/IT protocols supported by the automation server.
Access is provided via the Ethernet interface or via serial interfaces using the PPP protocol.
IP-Protocols
Web-Browser
FTP-Client
Mailbox
PG5 / SCADA
