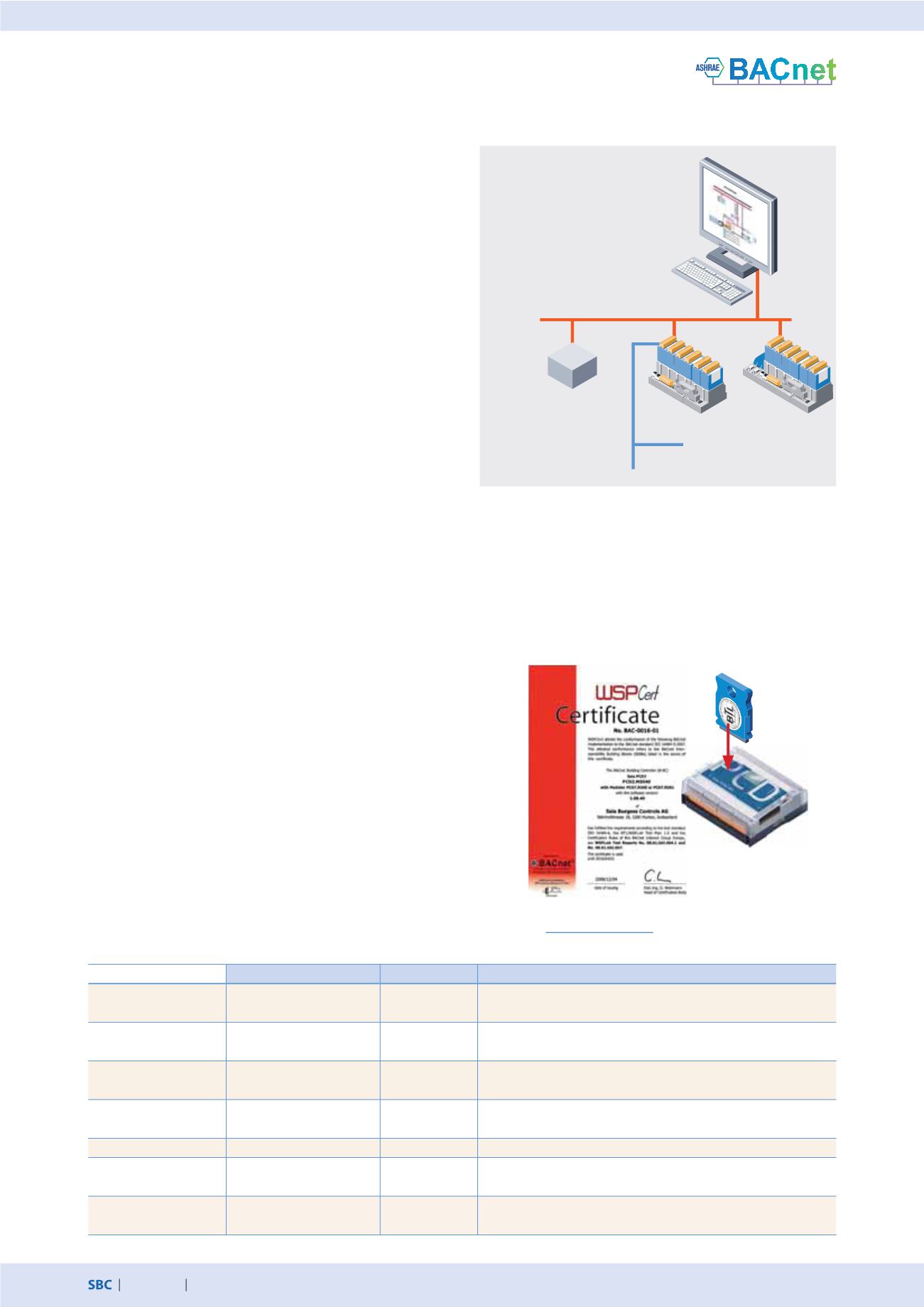

Communication & interaction
2.6
BA communications systems
2.6.1
BACnet®
Recommendations/system limits
Model
Option
Interface
PG5 configuration, system limits
PCD3.M5560
1× PCD7.R56x
4× PCD3.F215*
IP
MS/TP
Recommended for configurations of up to 1000 BACnet objects
Suitable for BACnet® and L
ON
W
ORKS
® in parallel operation
PCD3.M5540
PCD3.M5340
1× PCD7.R56x
4× PCD3.F215*
IP
MS/TP
Recommended for configurations of up to 800 BACnet objects
PCD3.M3330
PCD3.M3120
1× PCD3.R56x
3× PCD3.F215*
IP
MS/TP
Recommended for configurations of up to 500 BACnet objects
PCD2.M5540
1× PCD7.R56x
4× PCD2.F2150*
IP
MS/TP
Recommended for configurations of up to 800 BACnet objects
PCD1.M0160
1× PCD7.R56x
IP
Recommended for configurations of up to 800 BACnet objects
PCD1.M2xx0
1× PCD7.R56x
2× PCD2.F2150*
IP
MS/TP
Recommended for configurations of up to 800 BACnet objects
PCD1.M2020
Without Ethernet
1× PCD7.R56x
2× PCD2.F2150*
MS/TP
Recommended for configurations of up to 250 BACnet objects
Typical applications of a BACnet infrastructure
`
Heating, ventilation and climate control
`
Room automation
`
Networking dispersed sites
`
Recording energy data
The standard for building services
BACnet is a manufacturer-independent, globally standardised
communication protocol which is well-established in building
automation systems. BACnet is particularly suitable for
heterogeneous structures involving automation stations
of various manufacturers. The server/client architecture allows
each of the BACnet devices to exchange data with one another
without having to adjust to the parameterisation of the other
devices. BACnet is far more than a protocol for merely
transferring data; BACnet itself defines important building
automation functions, such as the recording of historic trends
or the monitoring of values against set limit values, for example.
It provides communication services (BIBBs: BACnet Interoperable
Building Blocks), such as those for reading and writing content,
event-controlled transmission following changes and the
handling of alarms/information (events).
PCD systems
BACnet is available for all classic PCD systems with the Saia PCD®
COSinus operating system as a communication option. The
connection is usually direct via BACnet-IP (Ethernet). BACnet
MS/TP (RS-485) is also possible via a communication module.
BACnet always requires a BACnet option module for firmware
expansion. A PCD7.R56x is used for memory slots M1 and M2 for
PCD3.M5-, PCD2.M5-, PCD1.M2- and PCD1.M0-controllers. The
PCD3.R56x module is available for I/O slots 0…3 for PCD3.M3
controllers without M1/2 slots.
PCD2.M5 and PCD1.M2 controllers also require a PCD2.F2150
for connecting BACnet MS/TP, and PCD3 controllers require a
PCD3.F215 interface. This module also provides controllers
without Ethernet with a BACnet interface. Controllers with
Ethernet also take on the function of a BACnet-IP-MS/TP router.
External gateways for connecting MS/TP devices directly to the
management system or other BACnet-IP devices, for example,
are therefore no longer required.
BACnet certificates for PCD1, PCD2, PCD3 controllers;
see
, Certificates, PCD
Third party system
