PCD1.M2xx0
PCD3.F261
PCD2.F2610
Communication & interaction
2.6.7
DALI
Field bus module for lighting systems
SBC PCD® DALI master communication modules are supported from PCD firmware 1.16.48 and PG5 2.0.220 onwards. PCD
firmware of version 1.19.21 and above is required to use the extended “DALI Multimaster” FBox library 2.6.010.

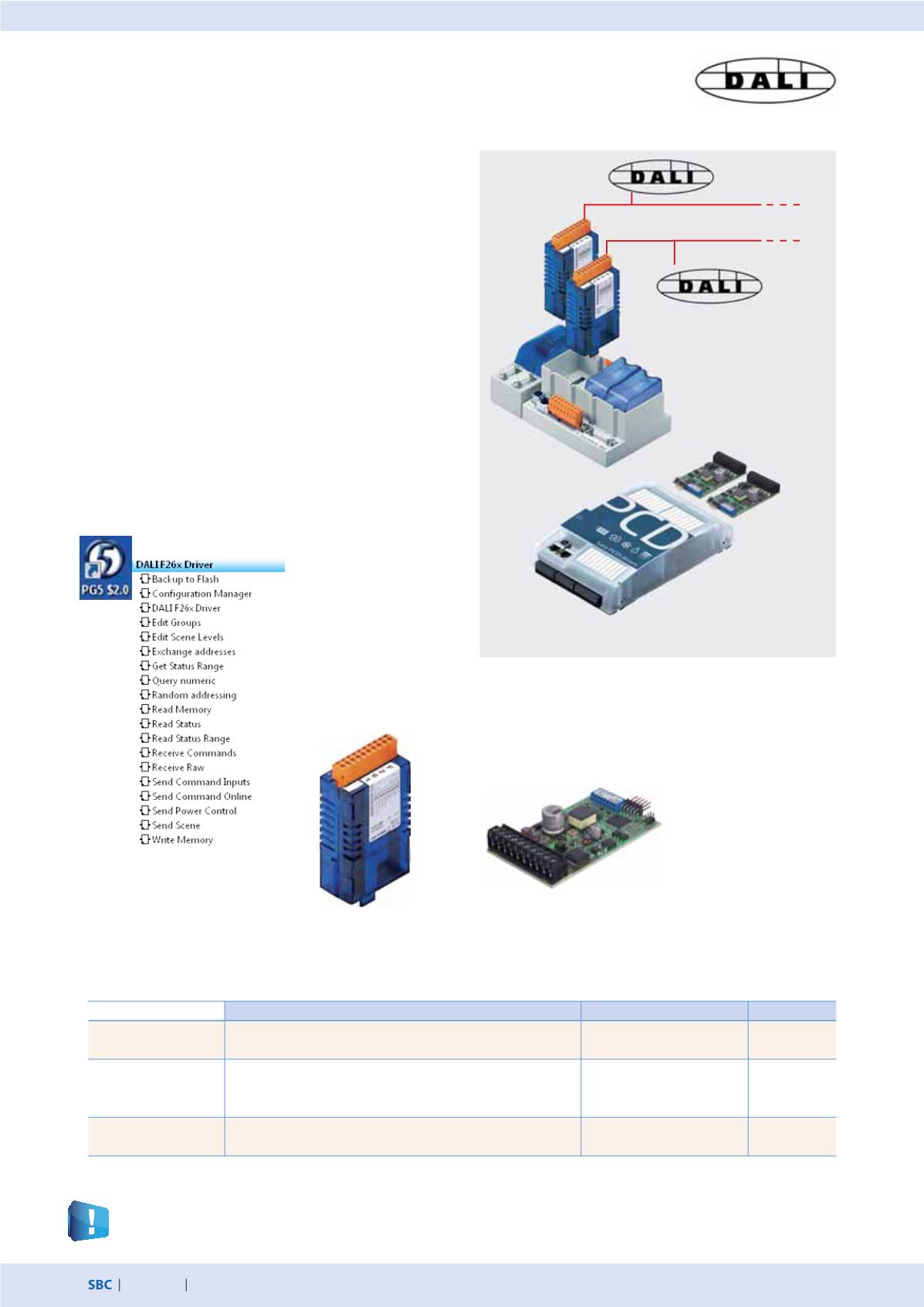

DALI maser interface module
DALI is a communication system for lighting control,
standardised according to IEC62386-101/102. It was originally
developed for stage technology and today it is used in a wide
range of applications including building automation systems.
Installation is easy. The DALI Bus simply needs 2 unshielded
wires which can be threaded through the same cable together
with the power supply, usually 230 V.
The light parameters are standardised. All upstream devices
therefore have the same parameters for dimming, grouping
and scenes, irrespective of the type of lighting.
The DALI master module includes the Bus power supply for up
to 64 DALI participants. The extensive PG5 FBox library has
function modules for commissioning, operating and servicing
with the PLC program. External software tools or other
components are not required.
Order information
Model
Description
Application note
Weight
PG5–DALI
PG5–DALI communication library for connecting
DALI lighting control systems
From PG5 2.0.220
---
PCD2.F2610
DALI master interface for up to 64 DALI devices
incl. Bus power supply
PCD1.M2110R1: I/O slot 0
PCD1.M2xx0: I/O slot 0-1
PCD2.M5xx0: I/O slot 0-3
60 g
PCD3.F261
DALI master interface for up to 64 DALI devices
incl. Bus power supply
PCD3.Mxxx0: I/O slot 0-3
PCD3.T666: I/O slot 0-3
80 g
PG5–DALI FBox library
Incl. DALI Bus
supply voltage
